DIAGNOSTIC ITEM 11: Diagnose When The Scan Tool Cannot Receive The Data Sent By TCM - CVT: Notes

CAUTION: When servicing a CAN bus line, ground yourself by touching a metal object such as an unpainted water pipe. If you fail to do so, a component connected to the CAN bus line may be damaged.

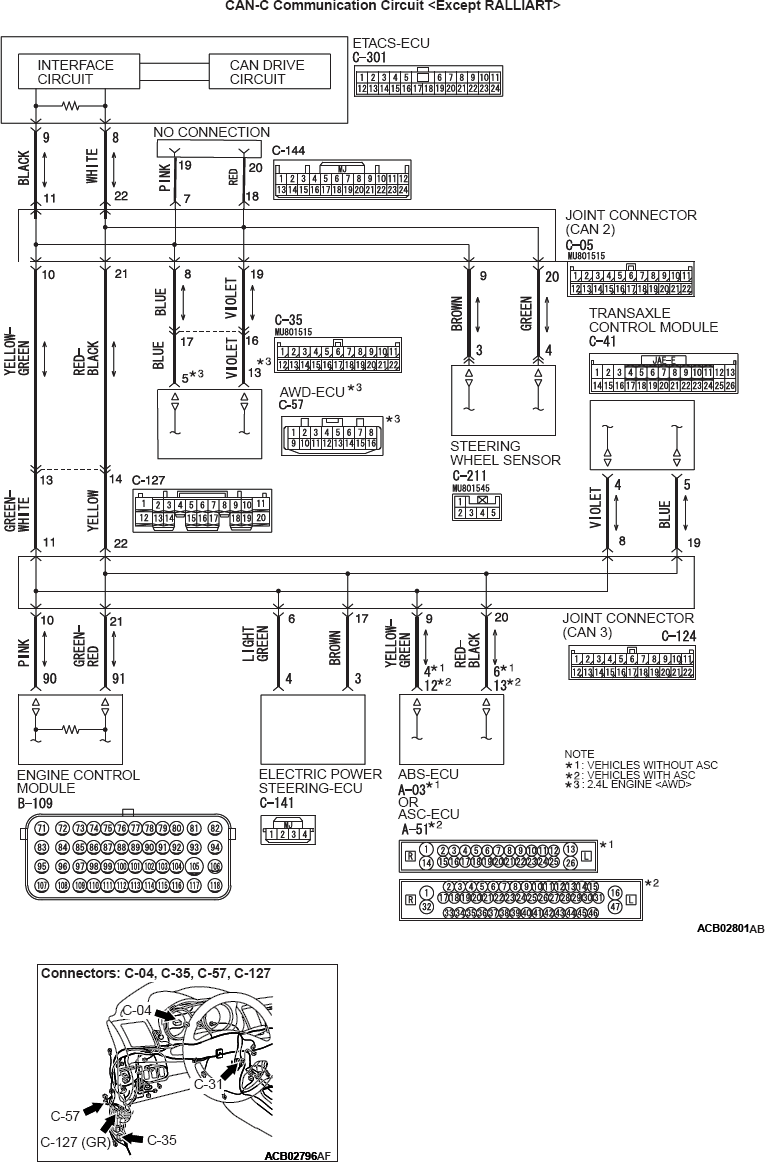

Fig 1: CAN-C Communication Circuit Diagram (Except Ralliart)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Locating Connectors C-41 & C-124

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
