DIAGNOSTIC ITEM 13: Diagnose When The Scan Tool Cannot Receive The Data Sent By Transaxle Assembly (TC-SST-ECU) - RALLIART: Notes

CAUTION: When servicing a CAN bus line, ground yourself by touching a metal object such as an unpainted water pipe. If you fail to do so, a component connected to the CAN bus line may be damaged.

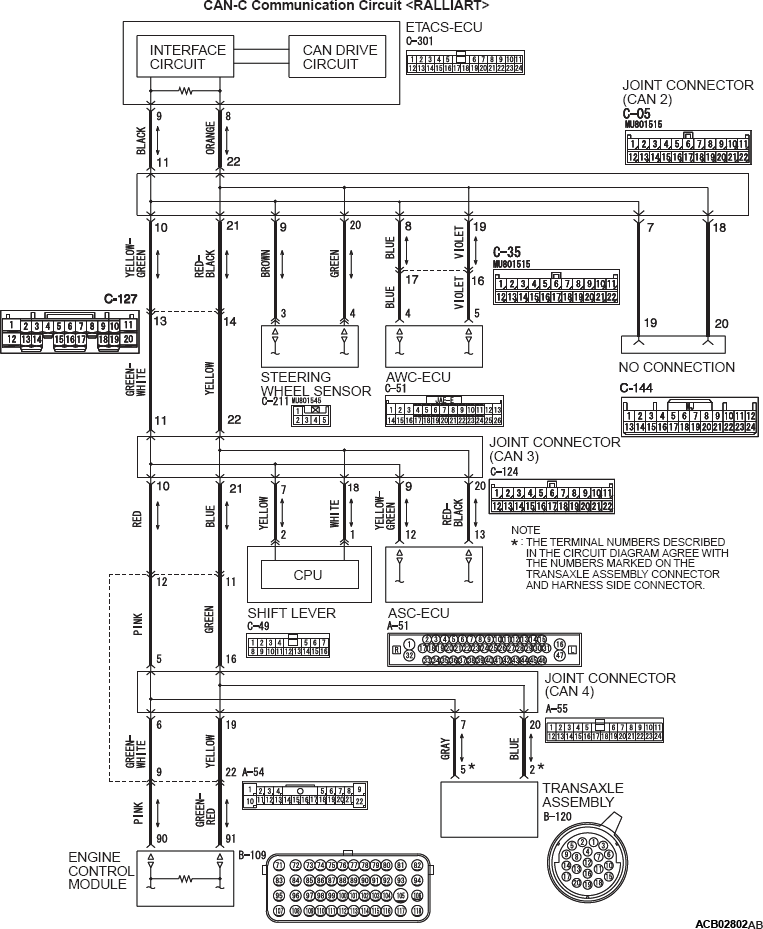

Fig 1: CAN-C Communication Circuit Diagram (Ralliart)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

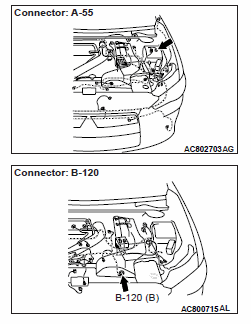

Fig 2: CAN-C Communication Connector Locations

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
