DTC 15: Cruise Control Switch System: Notes

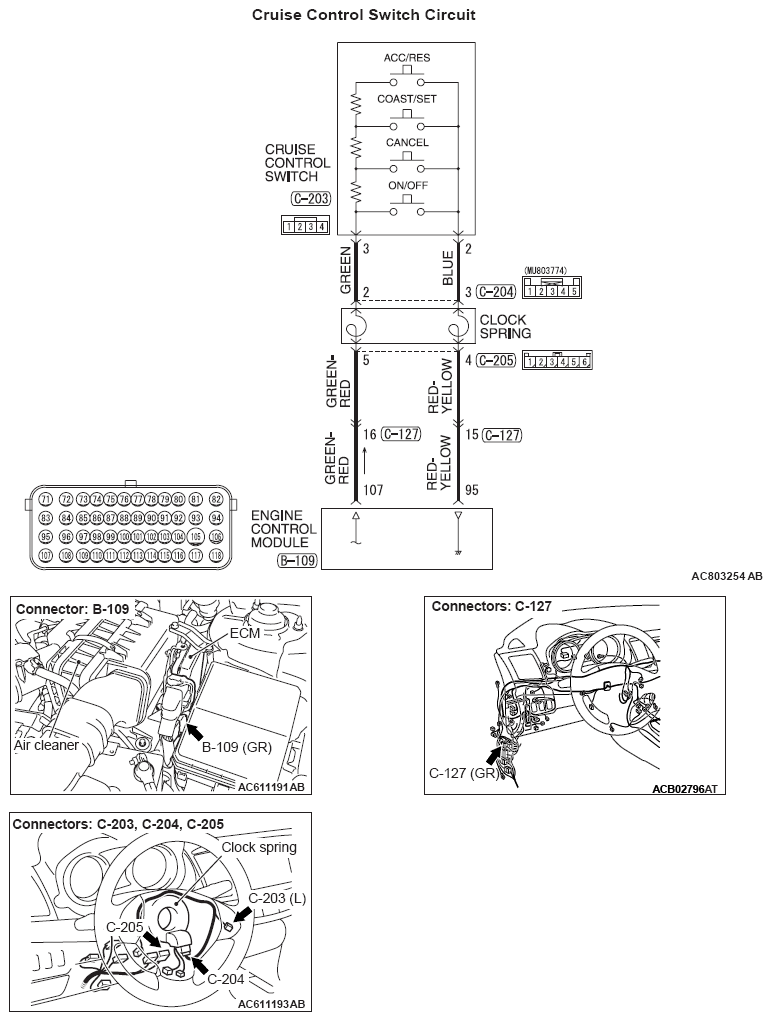

Fig 1: Cruise Control Switch - Circuit Diagram
G08290754Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
