Engine Brake Learning Feature On The Descending Slope

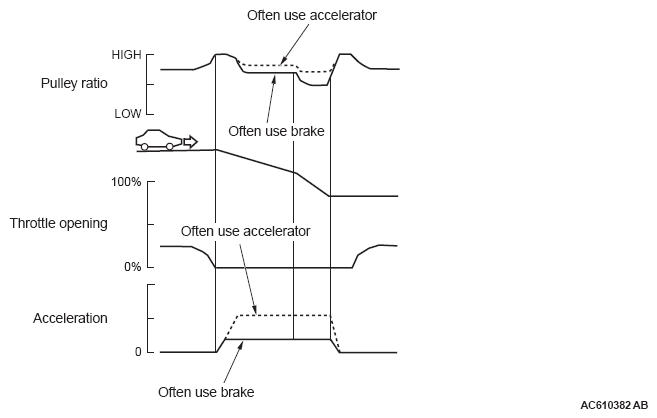

Fig 1: Engine Brake Characteristics Graph (Pulley Ratio, Throttle Opening And Acceleration)
G08293026Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Learning compensation is made to meet the tastes of a driver by judging the amount of the engine brake from the application of the accelerator or the brake.
