Removal And Installation: Notes

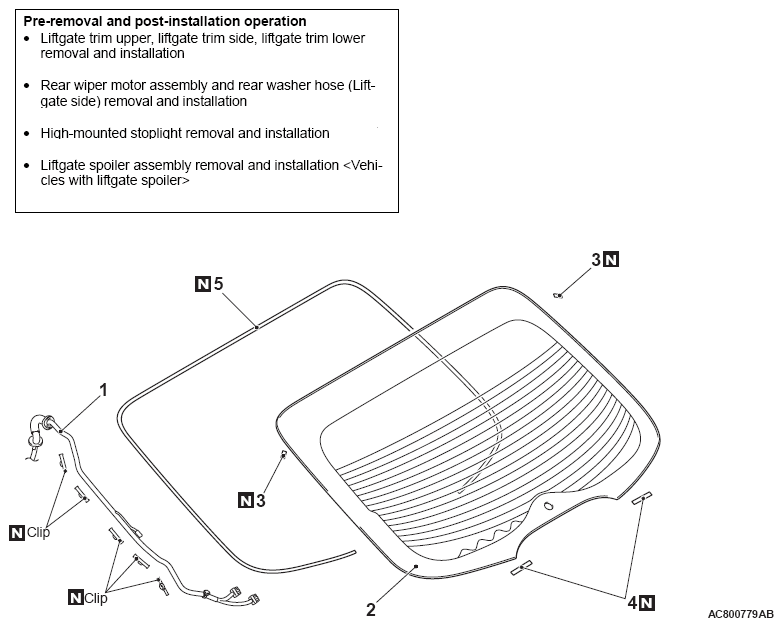

Fig 1: Liftgate Window Glass Components - Lancer Sportback (1 Of 2)
G08294366Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

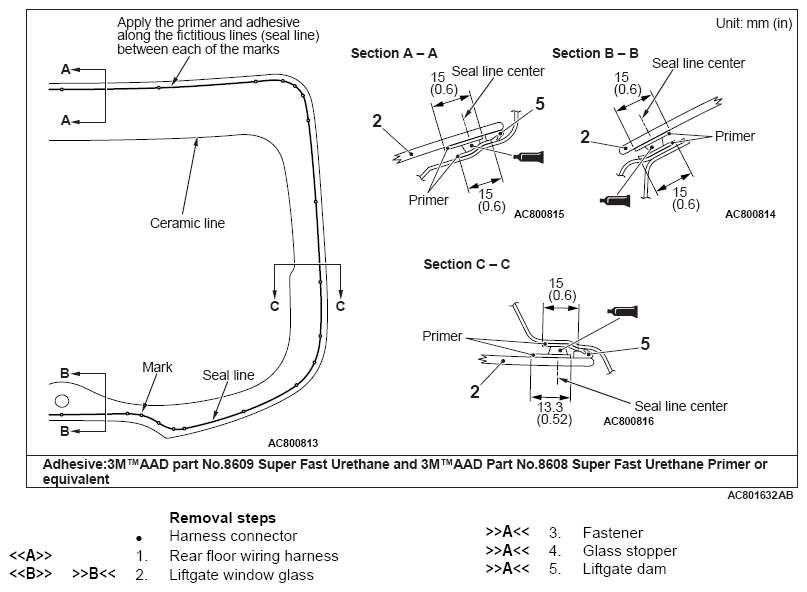

Fig 2: Liftgate Window Glass Components - Lancer Sportback (2 Of 2)
G08294367Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
