Except Vehicles For RALLIART

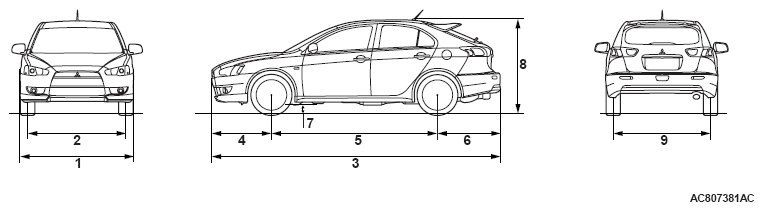

LANCER SPORTBACK VEHICLE DIMENSIONS
| Item | GTS | |||
|---|---|---|---|---|
| CX5AL | ||||
| TXPL2M | ||||
| Vehicle dimension mm (in) | Overall width | 1 | 1, 760 (69.4) | |
| Tread-front | 2 | 1, 530 (60.2) | ||
| Overall length | 3 | 4, 585 (180.4) | ||
| Overhang-front | 4 | 955 (37.6) | ||
| Wheelbase | 5 | 2, 635 (103.7) | ||
| Overhang-rear | 6 | 995 (39.1) | ||
| Ground clearance | 7 | 147 (5.8) | ||
| Overall height (unladen) | 8 | 1, 515 (59.7) | ||
| Tread-rear | 9 | 1, 530 (60.2) | ||
| Vehicle weight kg (lb) | Curb weight | Without full optional parts | 1, 415 (3, 120) | |
| With full optional parts | 1, 458 (3, 215) | |||
| Gross vehicle weight rating | 1, 900 (4, 190) | |||
| Gross axle weight rating-front | 1, 010 (2, 227) | |||
| Gross axle weight rating-rear | 960 (2, 117) | |||
| Seating capacity | 5 | |||
| Engine | Model code | 4B12 | ||
| Type | DOHC MIVEC < Low CO2 specification > | |||
| Piston displacement cm3 (cu in) | 2, 360 (144.0) | |||
| Maximum output kW/r/min (HP/r/min) | 125/6, 000 (168/6, 000) | |||
| Maximum torque N m/r/min (ft-lb/r/min) | 226/4, 100 (167/4, 100) | |||
| Fuel system | Fuel supply system | MFI | ||
| Transaxle | Model code | F1CJA | ||
| Type | FWD, INVECS-III CVT with sport mode | |||
| Minimum turning radius m (ft) | 5.0 (16.4) | |||
