Removal And Installation

WARNING: For removal and installation of the passenger's side air bag module, always observe the service procedures described in, AIR BAG MODULE AND CLOCK SPRING < Except for RALLIART > DRIVER'S AIR BAG MODULE AND CLOCK SPRING < RALLIART > < RALLIART >.

The following bolts and screws are used for installing the instrument panel. Bolts and screws are indicated as marks shown in the illustration in the sections of "Removal and Installation" and "Disassembly and Assembly."

BOLT AND SCREW DIMENSIONS

Name Symbol Size (D x L) mm Color Shape
Tapping screw a 5 x 12 -
G05102804
b 5 x 16 -
c 5 x 12 -
G05384591
Bolt with washer d 5 x 20 -
G05102809
e 6 x 16 -
G05384593
D: Thread diameter, L: Effective thread length
CAUTION:
  • Refer to SERVICE PRECAUTIONS and Air bag Module and Clock Spring PASSENGER'S (FRONT) AIR BAG MODULE before removing the passenger side air bag module.
  • Do not subject the SRS-ECU to any shocks when removing or installing the instrument panel.

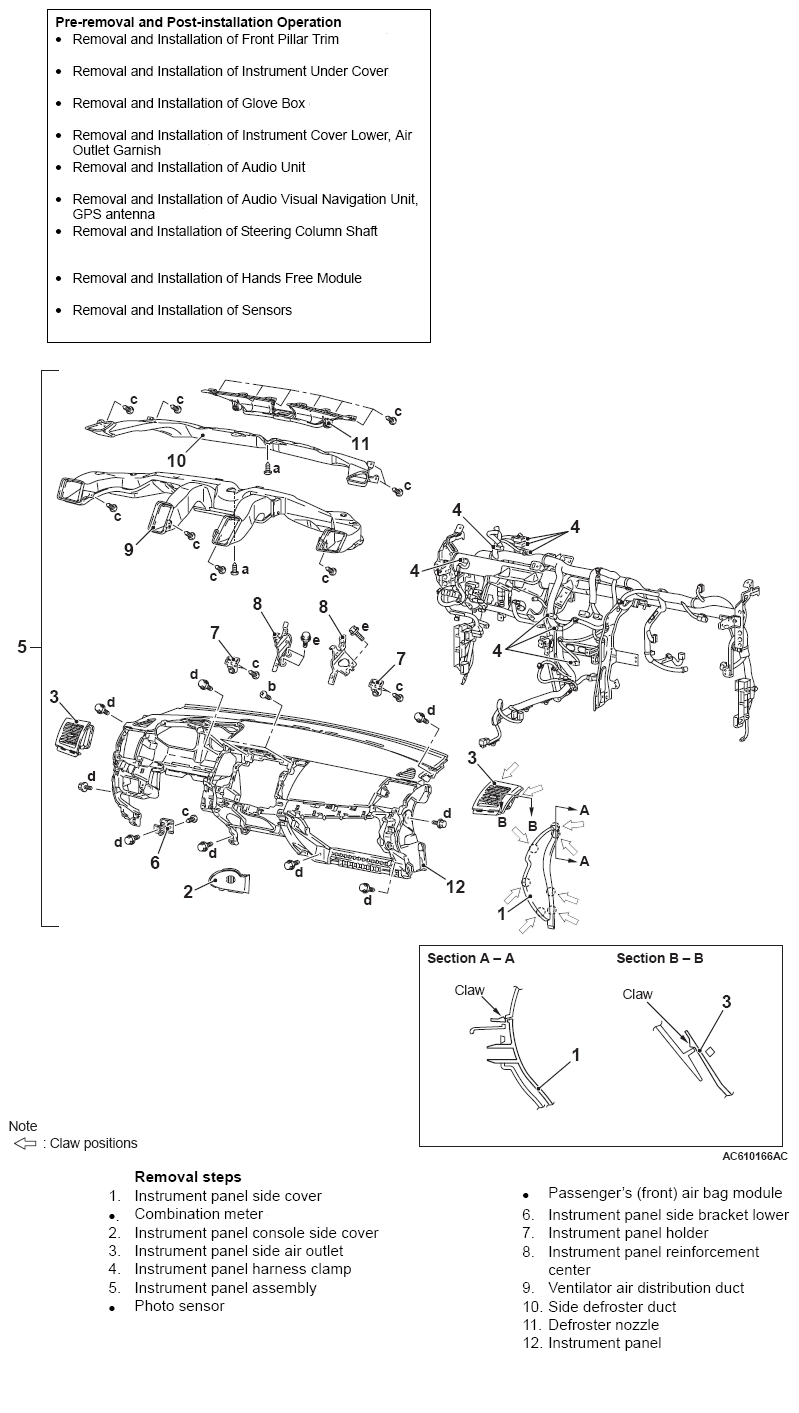

    Fig 1: Instrument Panel Assembly Components
    G08295008Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
