DTC U1109: Column SW LIN timeout: Notes

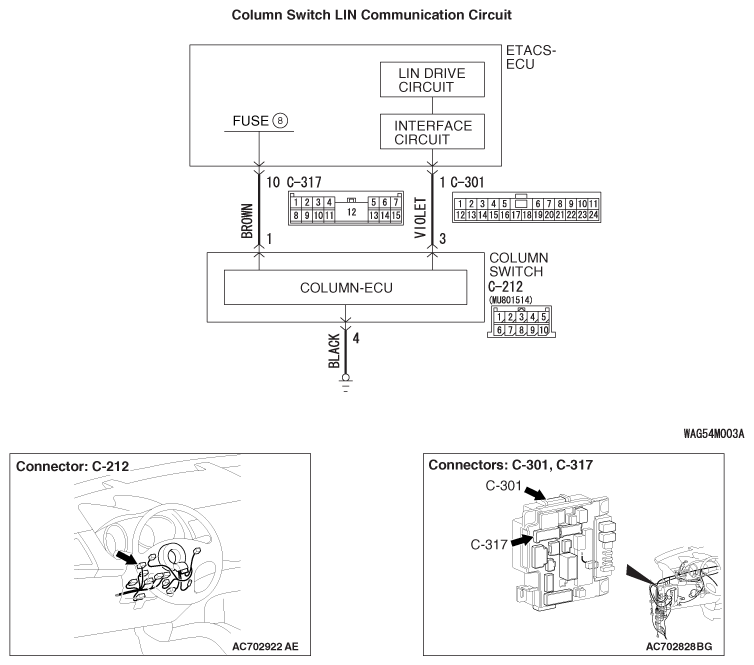

Fig 1: Column Switch LIN Communication Circuit Diagram
G06484585Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION: Before replacing the ECU, ensure that the communication circuit is normal.
