Control Unit

Name	Symbol
A/C-ECU	N
ASC-ECU	A
AWC-ECU < S-AWC >	I
AWD-ECU < Electronic controlled AWD >	I
CAN box unit	G
Column switch (incorporating column-ECU)	D
Combination meter (incorporating CPU)	E
Engine control module	B
ETACS-ECU	H
Hands free module	M
Headlight control unit < Vehicles with discharge type headlight >	C
KOS-ECU	K
Multivision display	G
Occupant classification-ECU	P
Power window main switch (incorporating CPU)	Q
Receiver antenna module < Vehicles with KOS >	J
SRS-ECU	L
Sunroof motor assembly (incorporating CPU)	O
Transaxle control module	I
USB box	M
Wireless control module < Vehicles without KOS >	J

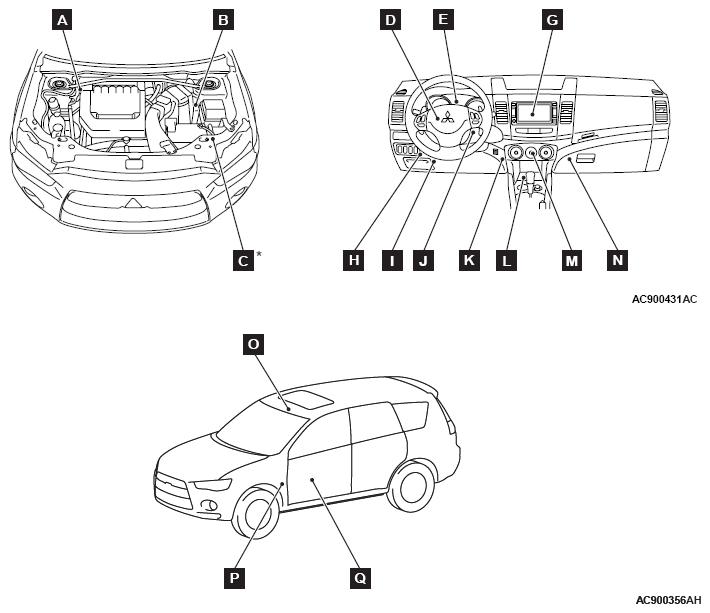

Fig 1: Identifying Control Unit Locations

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: The * symbols indicate equipment at both sides.

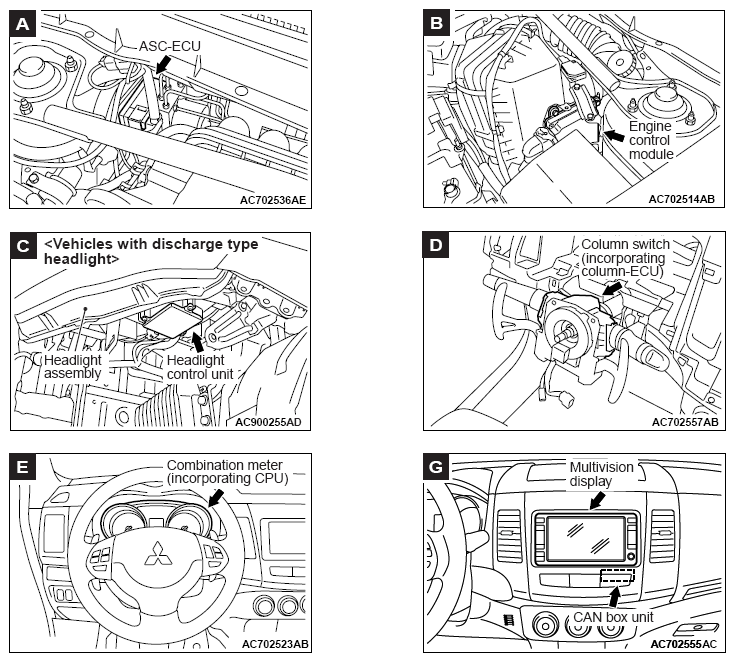

Fig 2: Locating Control Unit Components (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

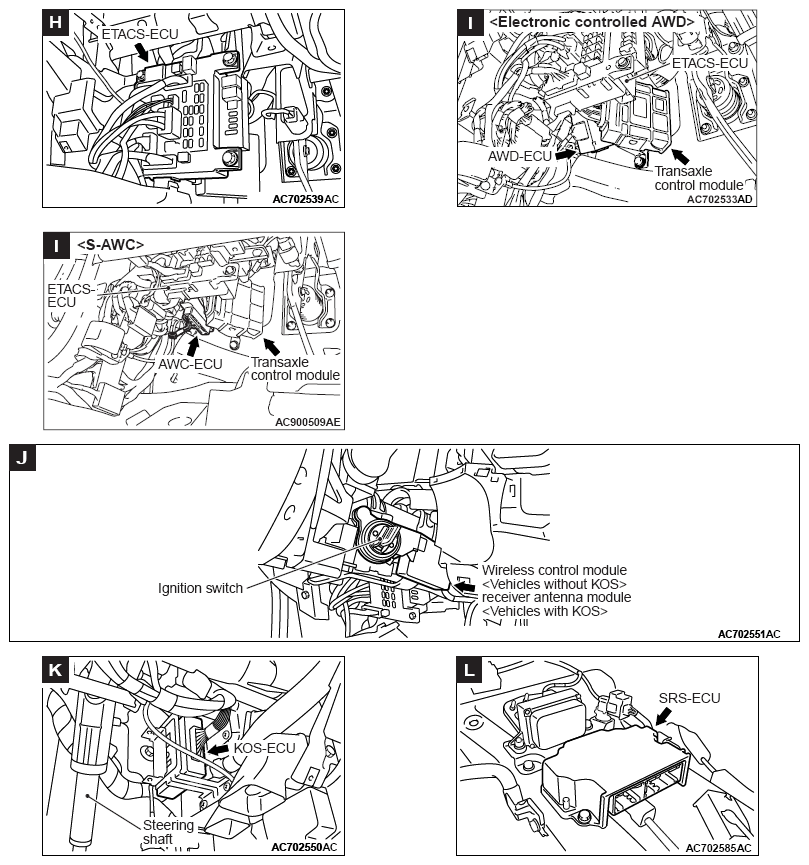

Fig 3: Locating Control Unit Components (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

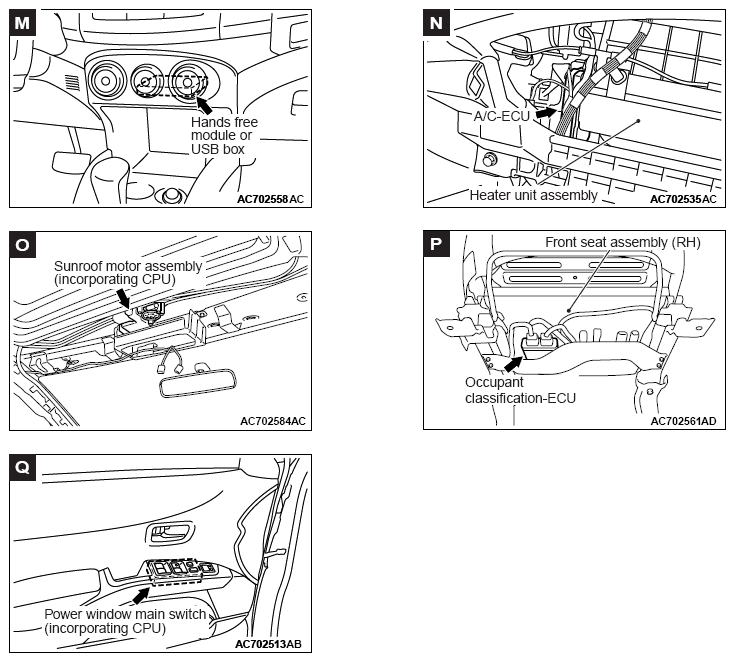

Fig 4: Locating Control Unit Components (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
