DTC P1723: Abnormality in Speed Sensor System Function: Notes

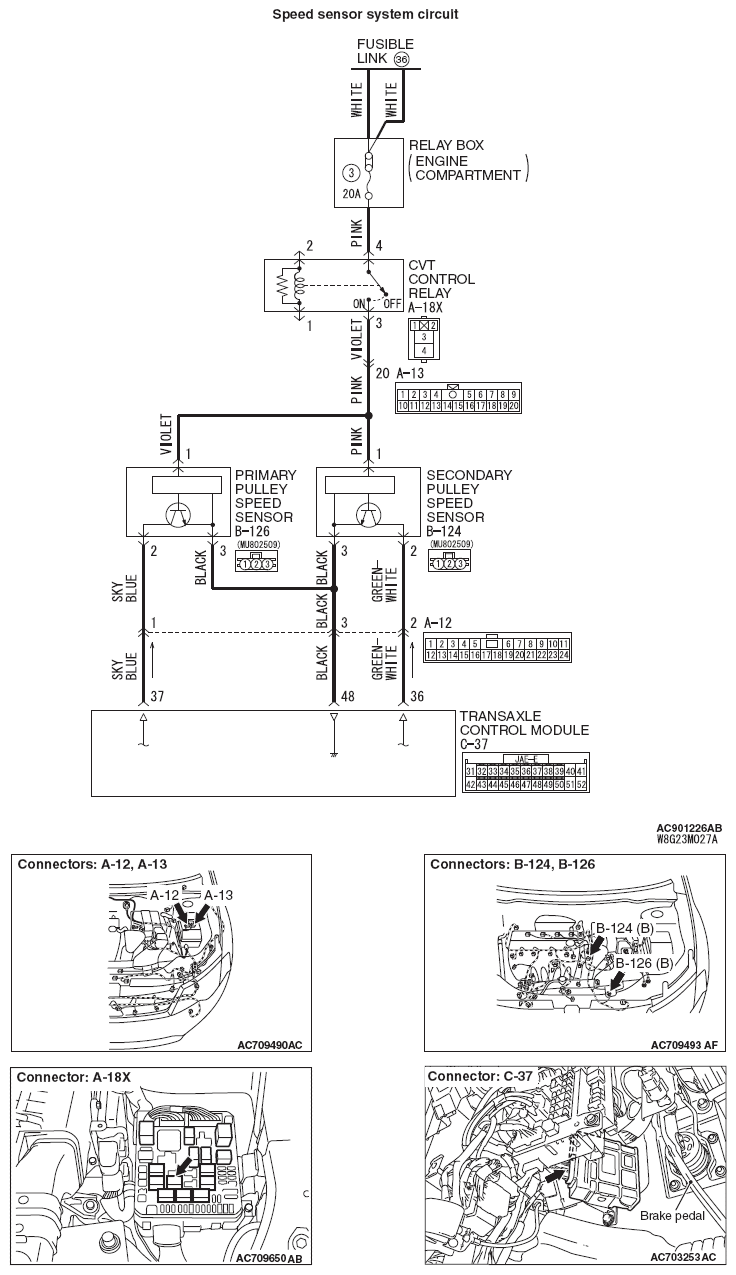

Fig 1: Speed Sensor System Circuit
G07035326Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
