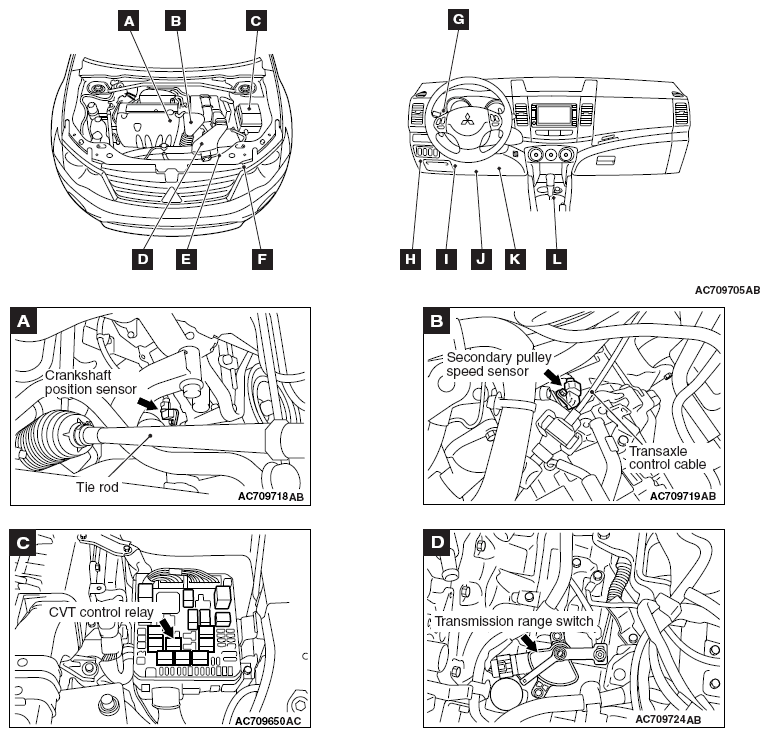

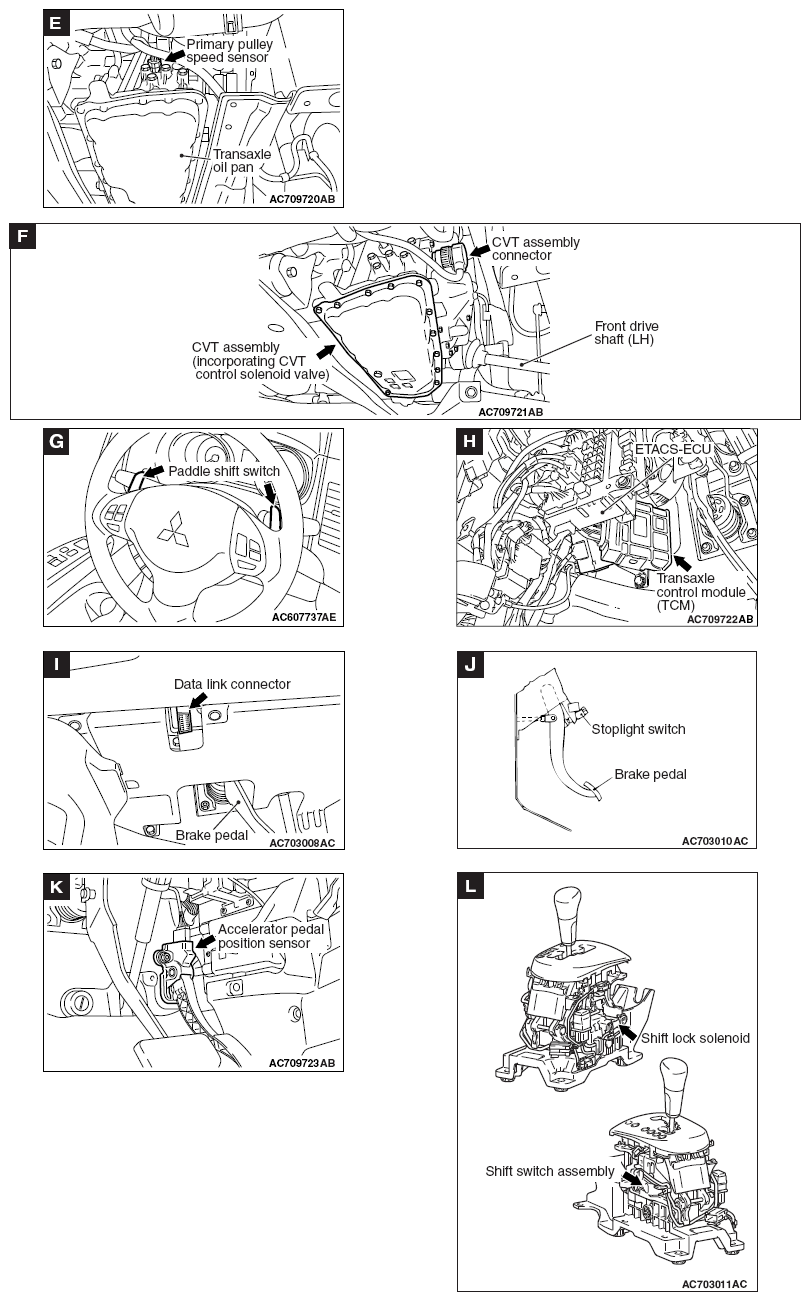

Control System Component Part Configuration Diagram
CONTROL SYSTEM COMPONENTS CHART
| Name | Symbol |
|---|---|
| Accelerator pedal position sensor | K |
| Crankshaft position sensor | A |
| CVT assembly (Solenoid valve assembly, transmission fluid temperature sensor) | F |
| CVT control relay | C |
| Data link connector | I |
| Paddle shift switch | G |
| Primary pulley speed sensor | E |
| Secondary pulley speed sensor | B |
| Shift lock solenoid | L |
| Shift switch assembly | L |
| Stoplight switch | J |
| Transaxle control module (TCM) | H |
| Transmission range switch | D |
