Differential Sub-Assembly: Assembly: Notes

CAUTION: The differential sub-assembly can only be assembled, not disassembled.

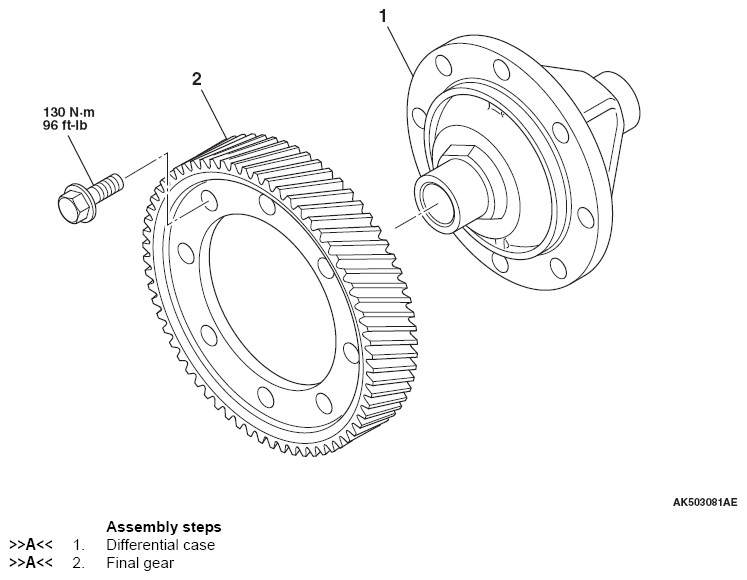

Fig 1: Identifying Differential Case And Final Gear Of Differential Sub-Assembly
G07044009Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
