Removal And Installation: Notes

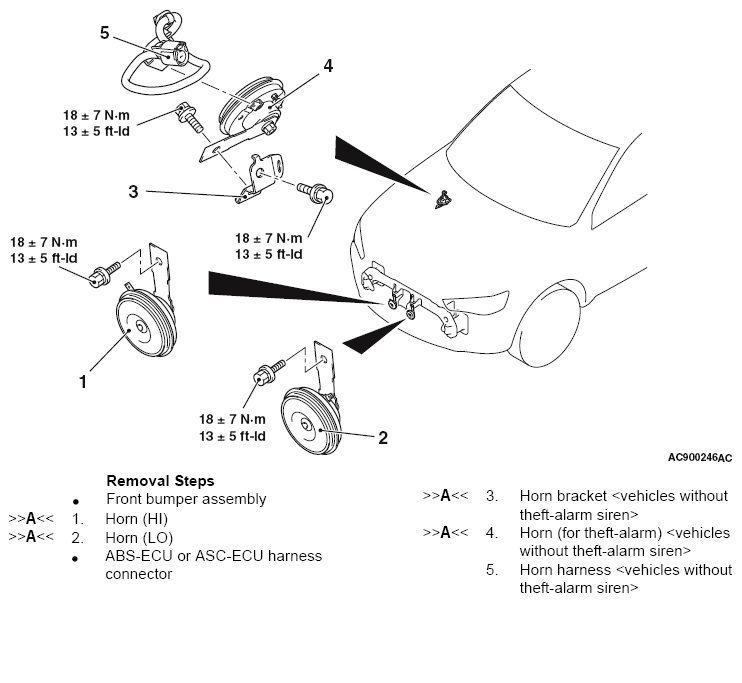

Fig 1: Removing/Installing Horn (HI And LO) With Torque Specifications
G07042981Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
