Fuel Pump Module Replacement < AWD >

  1. Remove the second seat assembly (Refer to SECOND SEAT ASSEMBLY ) and turn up the floor carpet.
  2. Remove the floor inspection lid (LH).

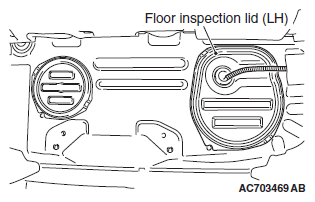

    Fig 1: Identifying Floor Inspection Lid (LH)
    G07043623Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Disconnect the fuel pump module connector and fuel tank differential pressure sensor connector.
  4. Release the fuel pressure in the fuel line. Refer to FUEL PUMP CONNECTOR DISCONNECTION (HOW TO REDUCE PRESSURIZED FUEL LINES) .

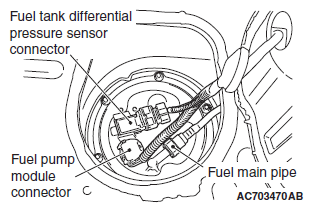

    Fig 2: Identifying Fuel Pump Module Connector And Fuel Tank Differential Pressure Sensor Connector
    G07043624Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  5. Insert a flat-tip screwdriver (6mm (0.24 inch) wide and 1mm (0.04 inch) thick) into the retainer of the fuel main pipe.

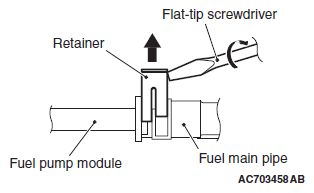

    Fig 3: Inserting Flat-Tip Screwdriver Into Retainer Of Fuel Main Pipe
    G05430939Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  6. Turn the flat-tip screwdriver about 90 degrees to push up the retainer, and disconnect the fuel main pipe from the fuel pump module.
    Fig 4: Disconnecting Fuel Main Pipe From Fuel Pump Module Using Screwdriver
    G07043626Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  7. Remove the mounting nuts of fuel pump module.
    CAUTION: Pay attention not to damage the fuel level sensor and float of the fuel pump module when removing the fuel pump module from the service hole.

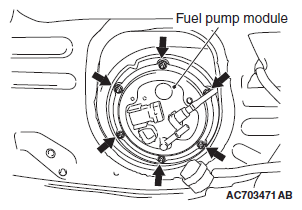

    Fig 5: Locating Fuel Pump Module Mounting Nuts
    G07043627Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  8. While removing the fuel pump module from the fuel tank, disconnect the suction hose from the fuel pump module to remove the fuel pump module from the service hole.
  9. Replace the fuel pump module gasket with a new one.
    Fig 6: Identifying Fuel Pump Module And Suction Hose
    G07043637Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION:
    • Pay attention not to damage the fuel level sensor and the float of the fuel pump module when installing it to the fuel tank. Pay attention to prevent the float of fuel level sensor from being trapped by the suction hose inside the fuel tank.
    • When installing the fuel pump module to the fuel tank, check that the fuel level sensor moving area moves smoothly.
  10. While inserting the fuel pump module into the fuel tank, connect the suction hose to the fuel pump module to install the fuel pump module to the fuel tank.

    While inserting the fuel tank pump module into the fuel tank from the service hole, connect the suction hose to the fuel tank pump module to install the fuel tank pump module to the fuel tank.

  11. Tighten the fuel pump module mounting nuts to the specified torque.

    Tightening torque: 2.5 ± 0.4 N.m (22 ± 4 in-lb)

    Fig 7: Identifying Fuel Pump Module And Suction Hose
    G07043637Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  12. Before the installation, push up the retainer of the fuel main pipe.
    Fig 8: Pushing Up Retainer Of Fuel Main Pipe
    G07043628Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  13. Connect the connector of fuel main pipe to the fuel pump module securely and push down the retainer of the connector to lock it firmly.
  14. After the installation, slightly pull the fuel main pipe to check that it is connected securely. At this time, also check that there is approximately 1 mm (0.04 inch) play.

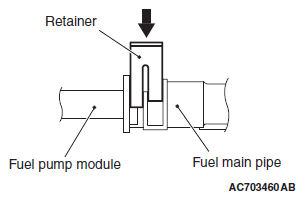

    Fig 9: Pushing Down Retainer Of Connector
    G07043629Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  15. Connect the fuel pump module connector and fuel tank differential pressure sensor connector.
    Fig 10: Identifying Fuel Pump Module Connector And Fuel Tank Differential Pressure Sensor Connector
    G07043624Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  16. Install the floor inspection lid (LH).
  17. Return the floor carpet to the original condition and install the second seat assembly (Refer to SECOND SEAT ASSEMBLY ).
    Fig 11: Identifying Floor Inspection Lid (LH)
    G07043623Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
