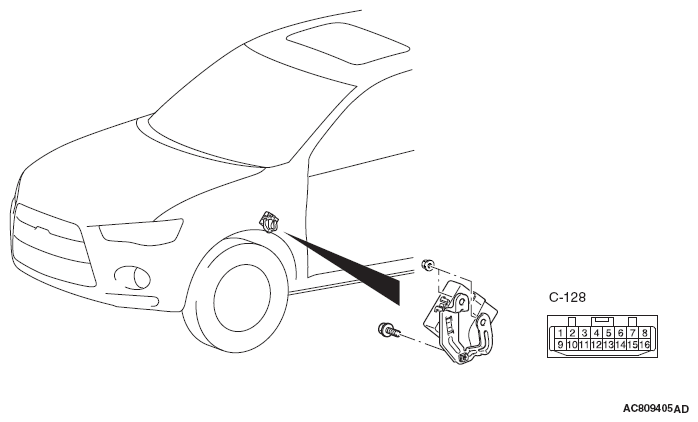

ECU TERMINALS REFERENCE CHART
| Terminal No. | Check item | Check condition | Normal condition | |
|---|---|---|---|---|
| 1 | Current command value of electronic control coupling solenoid |
|
0 to 3 A | |
| 3 | Electronic control coupling solenoid power supply | Always | System voltage | |
| 4 | Ignition power supply voltage | Ignition switch: ON | System voltage | |
| Ignition switch: OFF | 1 V or less | |||
| 9 | Electronic control coupling solenoid current monitor value |
|
0 to 3 A | |
| 10 | Ground | Always | 1 V or less | |
| 14 | Drive mode selector FWD signal | Ignition switch: ON | Drive mode selector: 2WD (FWD) | 1 V or less |
| Drive mode selector: 4WD (AWD) or LOCK | System voltage | |||
| 16 | Drive mode selector LOCK signal | Ignition switch: ON | Drive mode selector: LOCK | 1 V or less |
| Drive mode selector: 2WD (FWD) or 4WD (AWD) | System voltage | |||
