Special Tool

SPECIAL TOOL

Tool	Tool number and name	Supersession	Application
	MB990784 Ornament remover	General service tool	Removal of switch, trim, etc.

SPECIAL TOOLS

Tool	Tool number and name	Supersession	Application

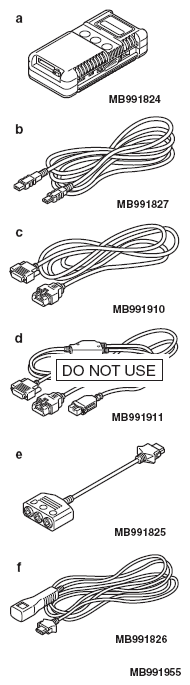

	MB991958 MB991824 MB991827 MB991910 MB991911 MB991914 MB991825 MB991826 M.U.T.-III sub assembly Vehicle communication interface (V.C.I.) M.U.T.-III USB cable M.U.T.-III main harness A (Vehicles with CAN communication system) M.U.T.-III main harness B (Vehicles without CAN communication system) M.U.T.-III main harness C (for Chrysler models only) M.U.T.-III measurement adapter M.U.T.-III trigger harness	MB991824-KIT NOTE: G: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key. CAUTION: M.U.T.-III main harness A (MB991910) should be used. M.U.T.-III main harness B and C should not be used for this vehicle. Diagnostic trouble code or service data check.	M.U.T.-III main harness A (MB991910) should be used. M.U.T.-III main harness B and C should not be used for this vehicle. Diagnostic trouble code or service data check.

Tool

Tool number and name

Supersession

Application

MB991958

MB991824
MB991827
MB991910
MB991911
MB991914
MB991825
MB991826

M.U.T.-III sub assembly

Vehicle communication interface (V.C.I.)
M.U.T.-III USB cable
M.U.T.-III main harness A (Vehicles with CAN communication system)
M.U.T.-III main harness B (Vehicles without CAN communication system)
M.U.T.-III main harness C (for Chrysler models only)
M.U.T.-III measurement adapter
M.U.T.-III trigger harness

MB991824-KIT

NOTE: G: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.

CAUTION: M.U.T.-III main harness A (MB991910) should be used. M.U.T.-III main harness B and C should not be used for this vehicle.

Diagnostic trouble code or service data check.

M.U.T.-III main harness A (MB991910) should be used. M.U.T.-III main harness B and C should not be used for this vehicle. Diagnostic trouble code or service data check.

SPECIAL TOOLS

Tool	Tool number and name	Supersession	Application
	MB991223 MB991219 MB991220 MB991221 MB991222 Harness set Check harness LED harness LED harness adapter Probe	General service tools	Continuity check and voltage measurement at harness wire or connector a: For checking connector pin contact pressure b: For checking power supply circuit c: For checking power supply circuit d: For connecting a locally sourced tester
		MB992006 Extra fine probe	Continuity check and voltage measurement at harness wire or connector

Tool

Tool number and name

Supersession

Application

MB991223

MB991219
MB991220
MB991221
MB991222

Harness set

Check harness
LED harness
LED harness adapter
Probe

General service tools

Continuity check and voltage measurement at harness wire or connector a: For checking connector pin contact pressure b: For checking power supply circuit c: For checking power supply circuit d: For connecting a locally sourced tester

MB992006

Extra fine probe

Continuity check and voltage measurement at harness wire or connector
