Removal And Installation < 3.0L Engine >: Notes

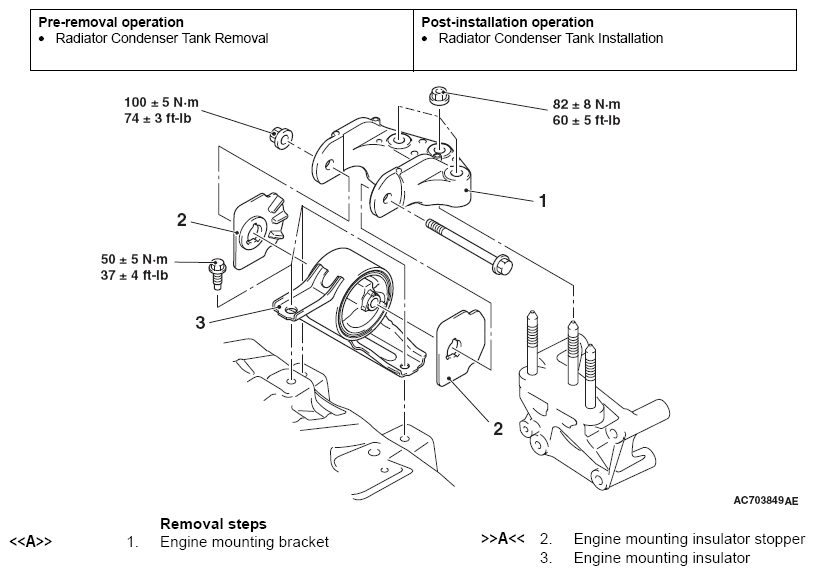

Fig 1: Engine Mounting Removal And Installation With Torque Specifications - 3.0L Engine
G07041702Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
