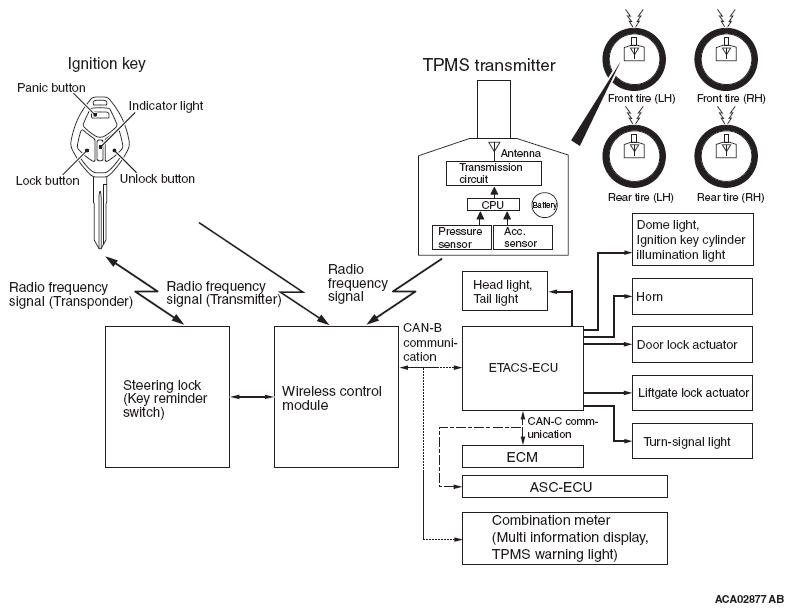

Fig 1: Wireless Control Module - System Configuration
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE:
In case of replacement of WCM, all keyless ID, key ID and tire pressure sensor ID should be re-registered using scan tool MB991958 (M.U.T.-III sub-assembly).
