MULTIVISION Display/Can Box Unit: Notes

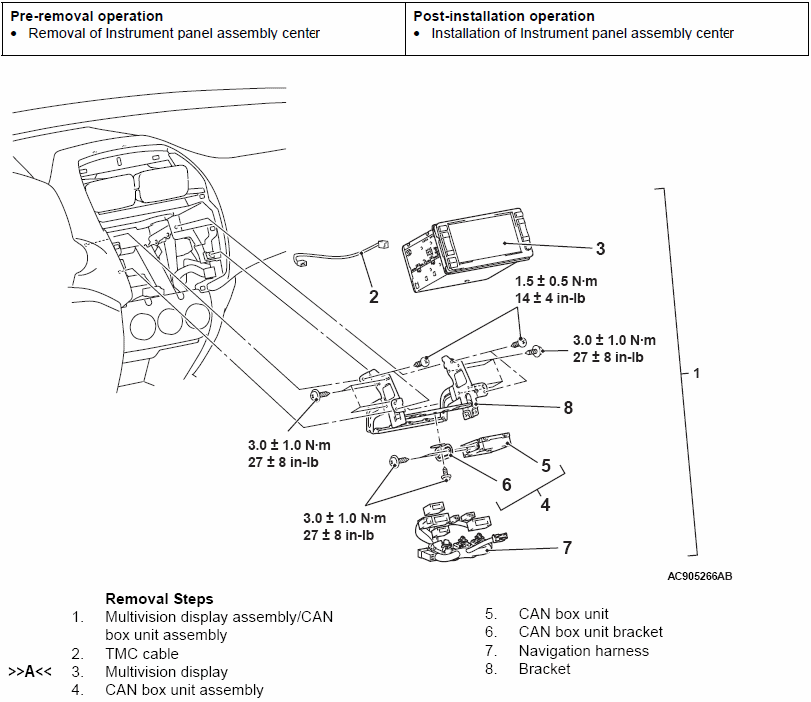

Fig 1: Multivision Display/Can Box Unit Remove/Install Components With Torque Specifications
G07049059Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
