INSPECTION PROCEDURE: Liftgate Lock Release Handle Signal is not Received: Notes

CAUTION: Before replacing the ECU, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.

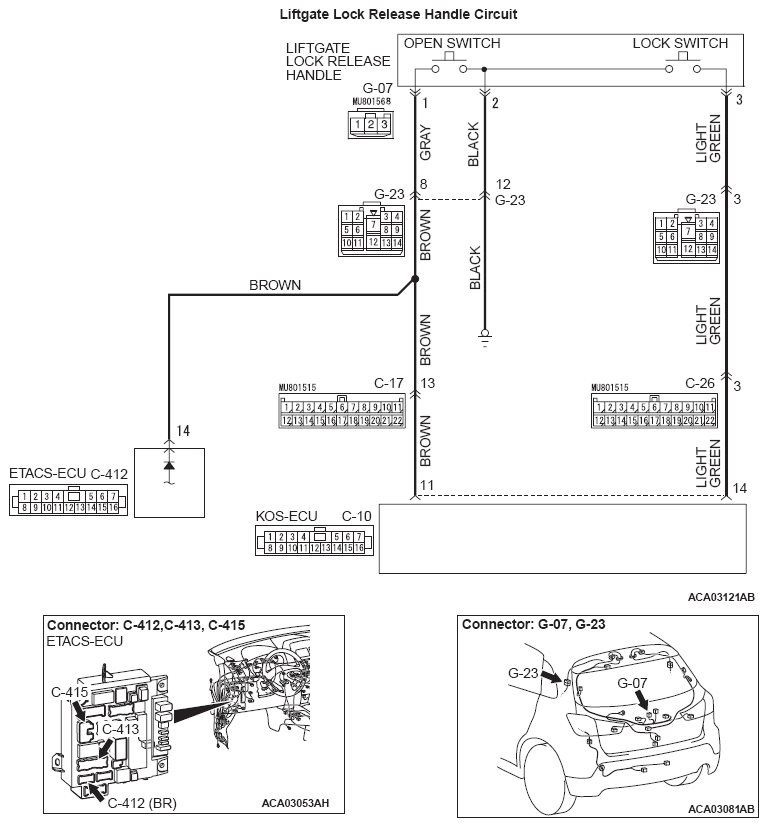

Fig 1: Liftgate Lock Release Handle Circuit Diagram
G07048713Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
