>> C << Hub Rotation Starting Torque Check

Set special tools MB991000, MB991017 and MB991099 as shown in the illustration, tighten the nut to the specified torque, and press-fit the hub into the knuckle.
Tightening torque: 144 - 176 N.m (107 - 129 ft-lb)
Rotate the hub to make the bearing well-greased.

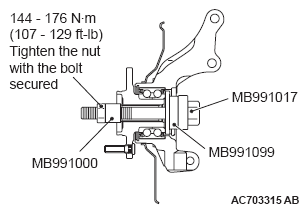

Fig 1: Special Tools With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Use Special tool MB990326 to measure the hub rotation starting torque.
Limit: 1.5 N.m (13 in-lb)
Hub rotation starting torque should be within the limit value, and there should be no roughness and gritty feeling in rotation.

Fig 2: Measuring Hub Rotation Starting Torque Using Special Tool (MB990326)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
