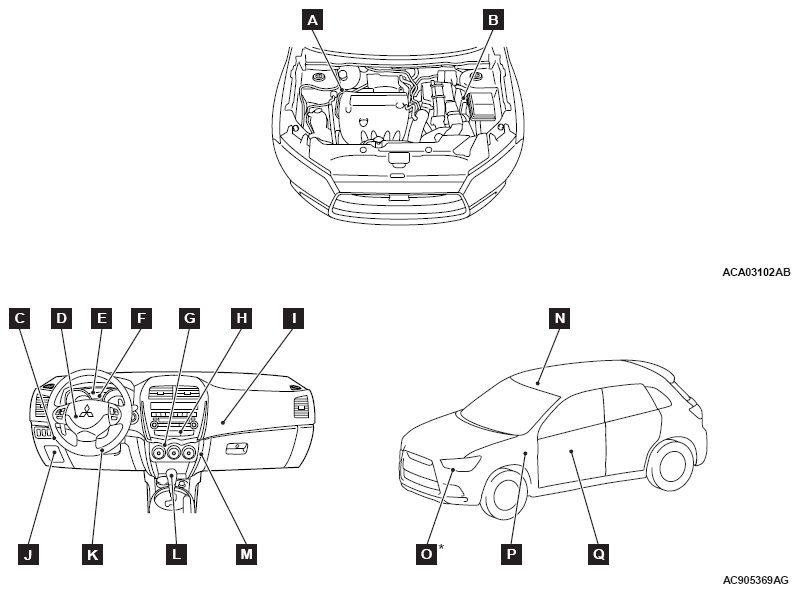

Control Unit
| Name | Symbol |
|---|---|

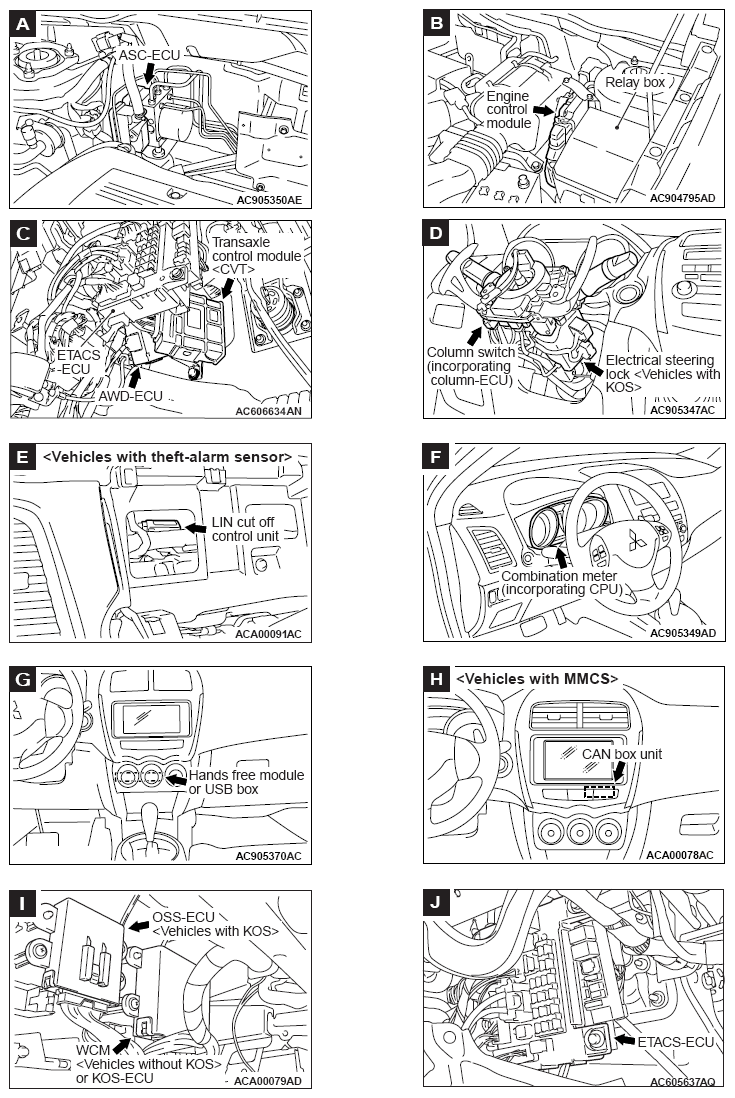

| AWD-ECU | C |
| A/C-ECU | M |
| ASC-ECU | A |
| CAN box unit < Vehicles with MMCS > | H |
| Column switch (incorporating column-ECU) | D |
| Combination meter (incorporating CPU) | F |
| Electrical steering lock < Vehicles with KOS > | D |
| Engine control module | B |

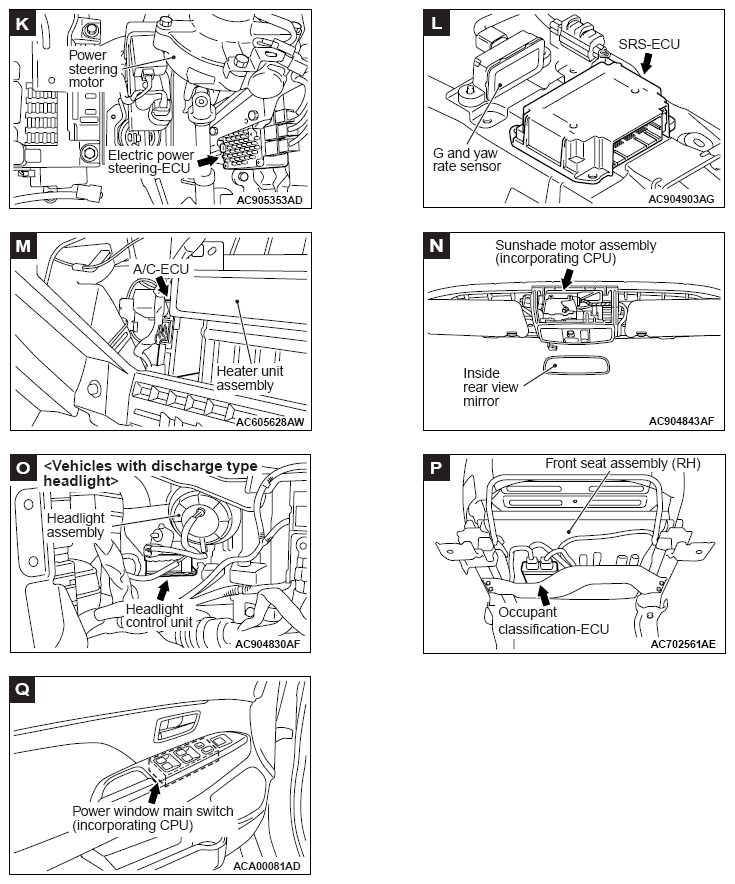

| Electric power steering-ECU | K |
| ETACS-ECU | J |
| Front seat assembly (RH) (incorporating occupant classification-ECU) | P |
| Hands free module | G |
| Headlight control unit < Vehicles with discharge type headlight > | O |
| KOS-ECU | I |
| LIN cut off control unit < Vehicles with theft-alarm sensor > | E |
| OSS-ECU < Vehicles with KOS > | I |
| Power window main switch (incorporating CPU) | Q |
| SRS-ECU | L |
| Sunshade motor assembly (incorporating CPU) | N |
| Transaxle control module < CVT > | C |
| USB box | G |
| WCM < Vehicles without KOS > | I |
NOTE:
*: also equipped at right side.
