OEM Component Locations: Grounding

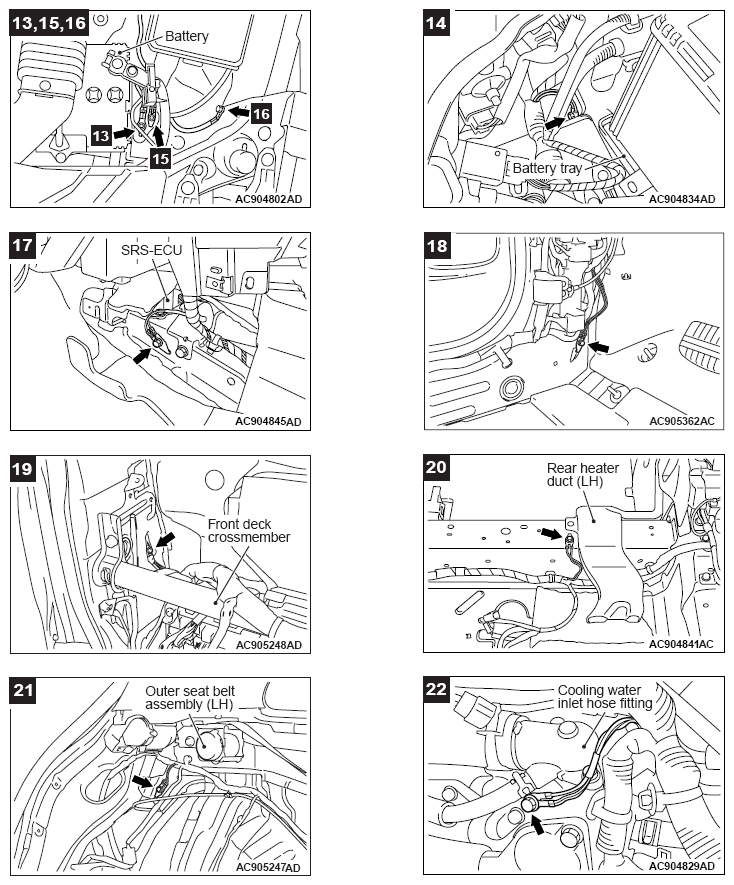

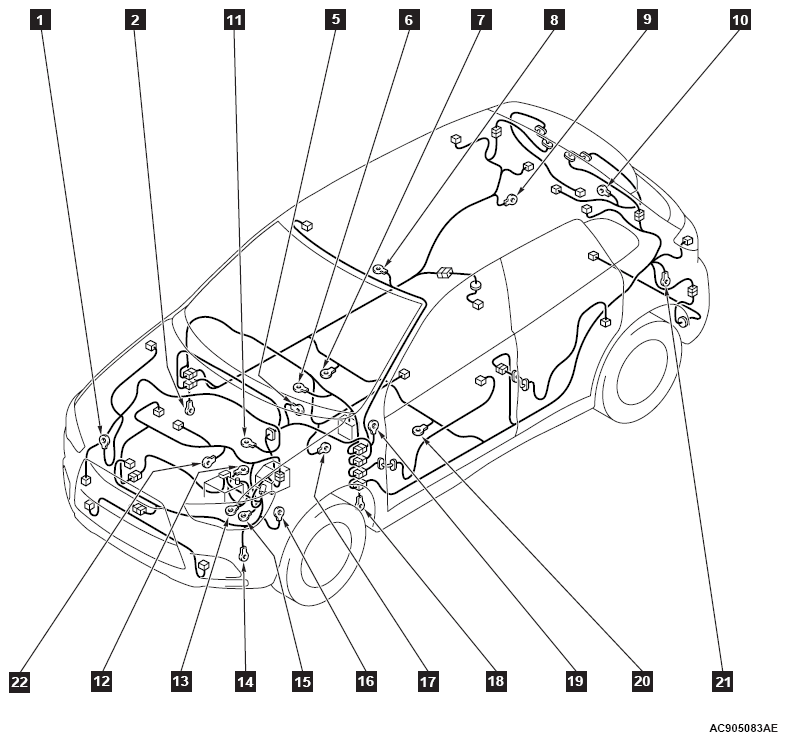

Fig 1: Identifying Components Location Grounding
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE:
Same ground numbers are used in the circuit diagram.

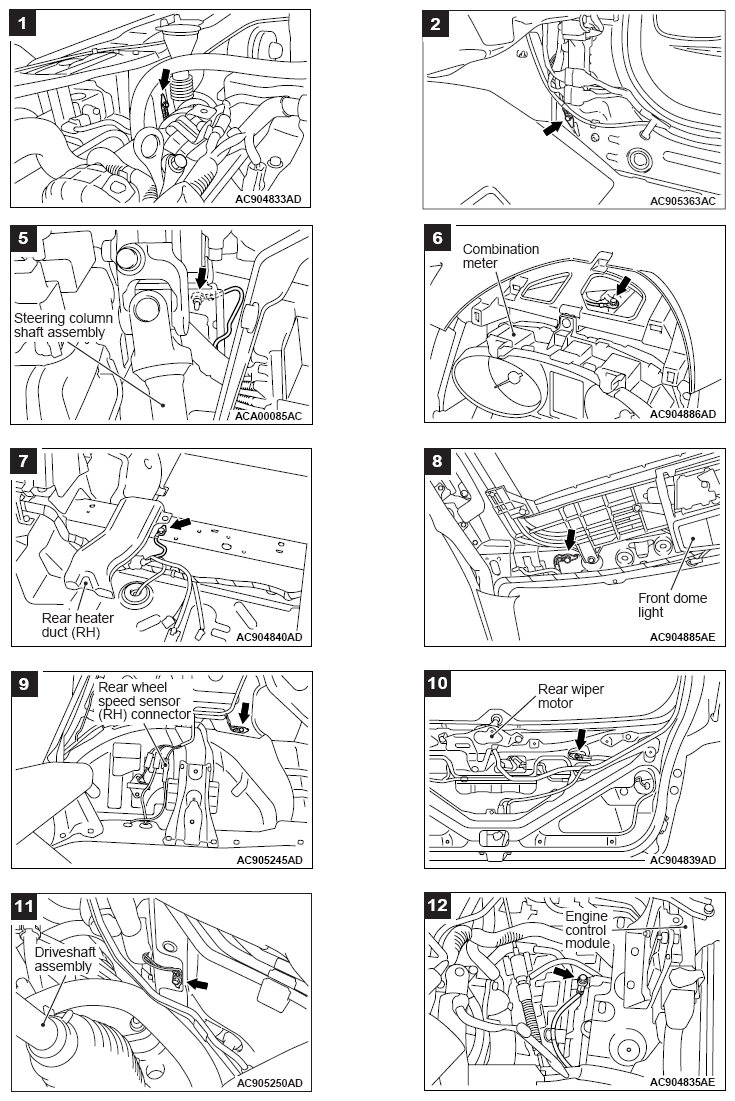

Fig 2: Identifying Engine Control Module
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 3: Identifying Cooling Water Inlet Hose Fitting
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
