Removal And Installation: Notes

CAUTION:
  • When removing or installing the manifold absolute pressure sensor, be careful not to apply impact to the sensor.
  • Do not reuse the manifold absolute pressure sensor that has been dropped.

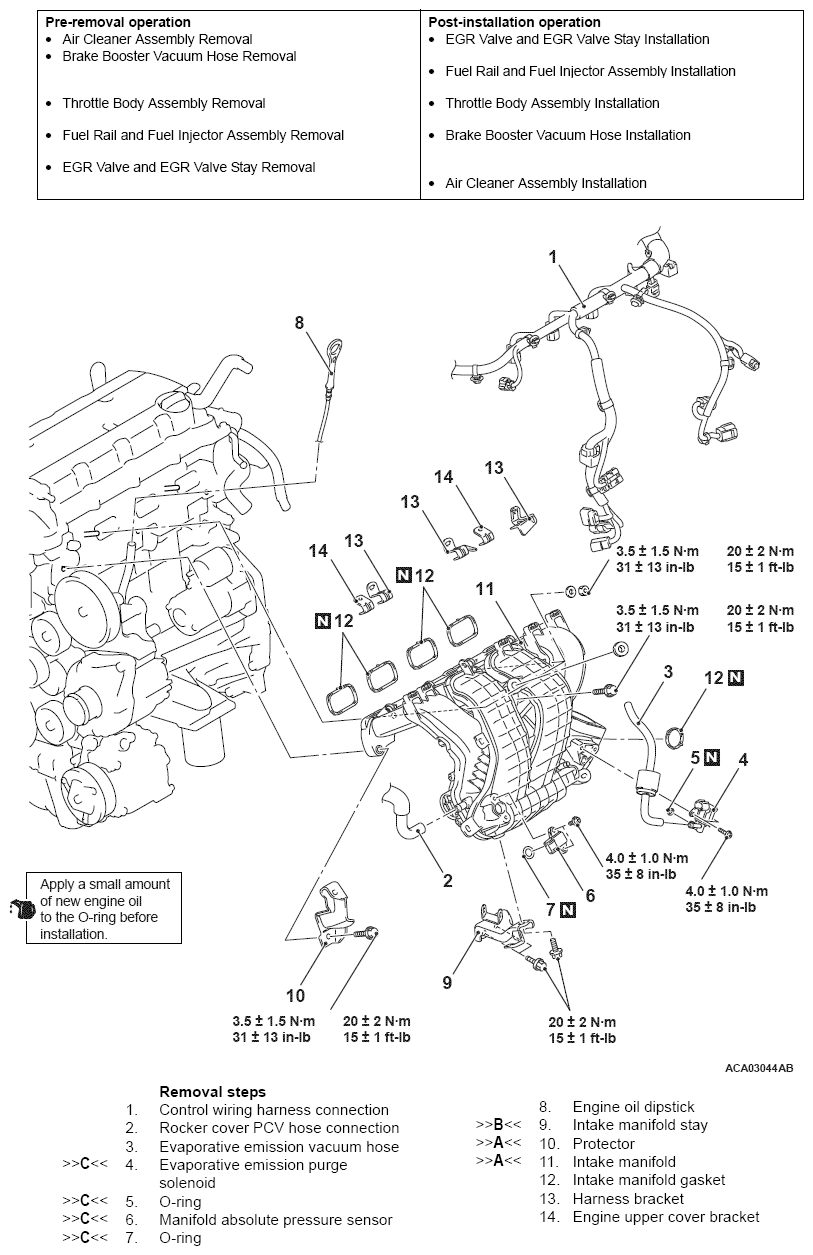

Fig 1: Intake Manifold Replacement Components With Torque Specifications
G07047242Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
