Removal And Installation

WARNING: This page is about a different variant/trim than selected.

Refer to FRONT FLOOR CONSOLE ASSEMBLY .

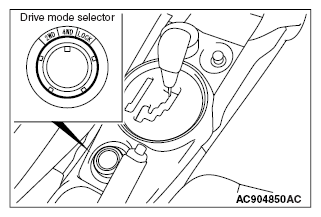

Fig 1: Identifying Drive Mode Selector
G07048190Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
