DTC P1723: Abnormality in Speed Sensor System Function: Notes

WARNING: This page is about a different variant/trim than selected.

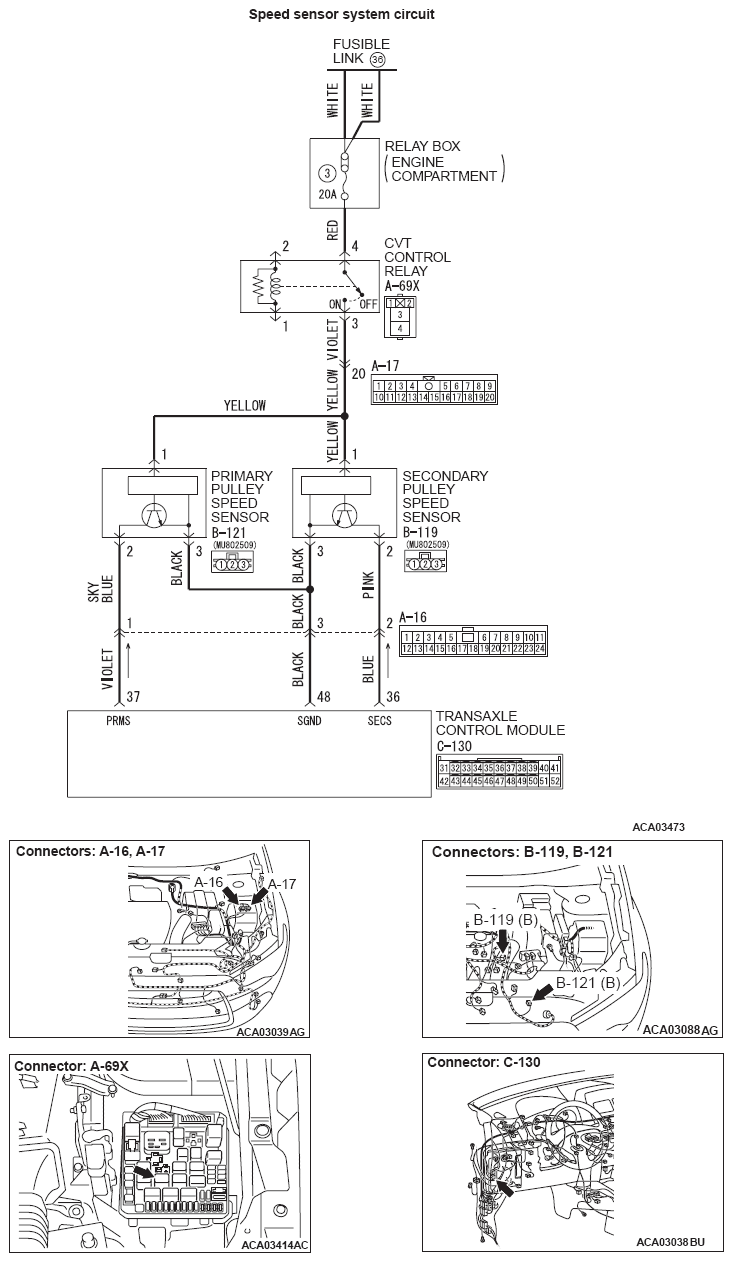

Fig 1: Speed Sensor System Circuit Diagram
G07047641Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
