CVT Control Component Layout
WARNING: This page is about a different variant/trim than selected.

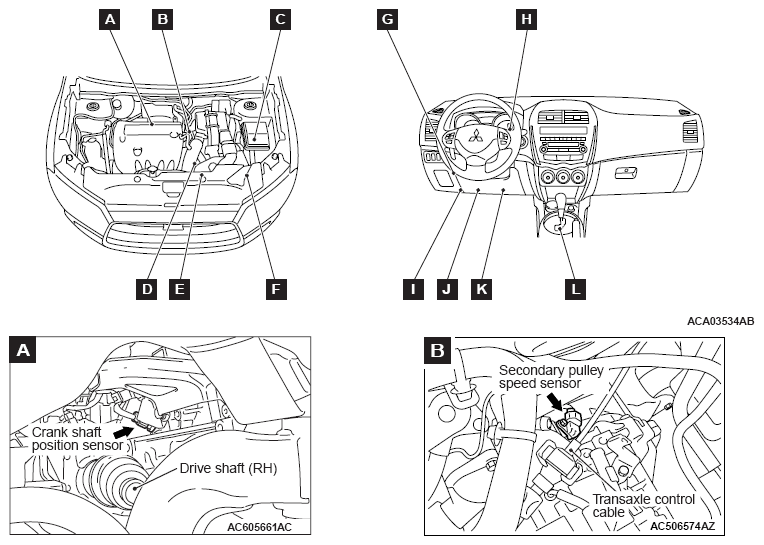

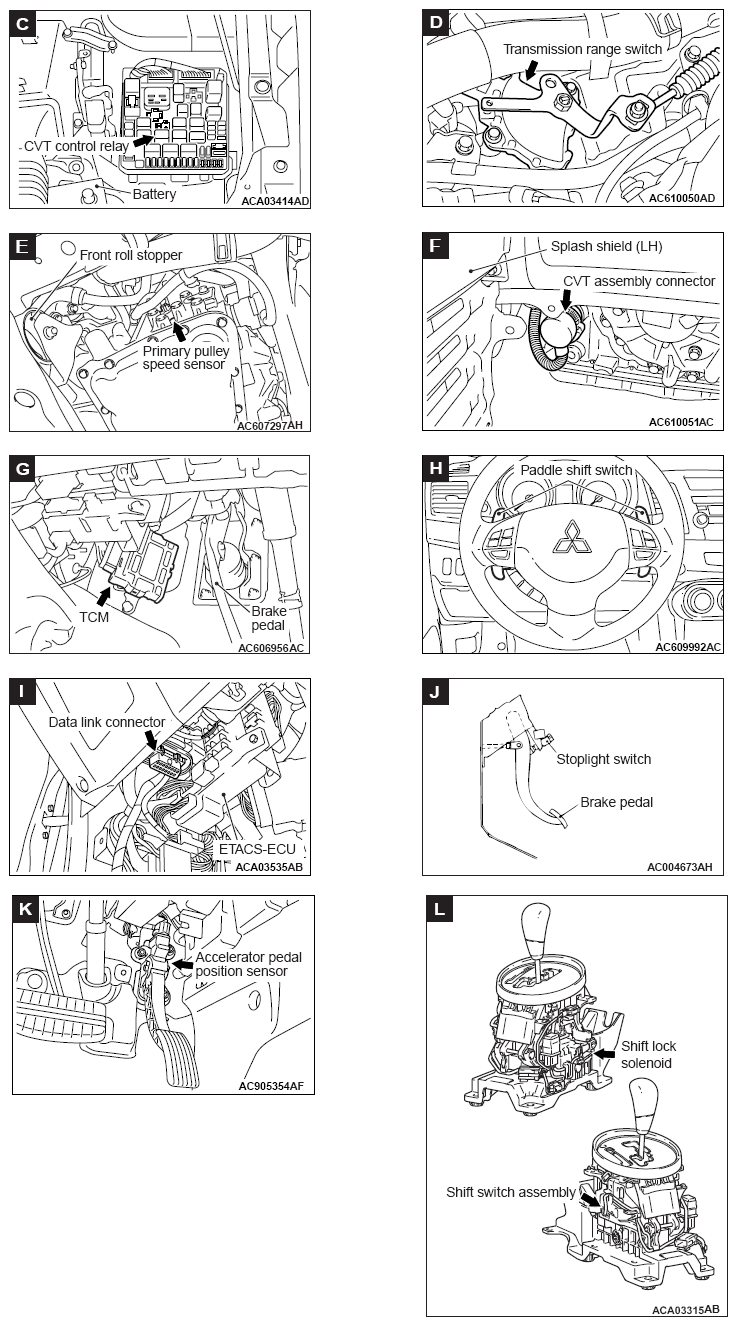

CVT CONTROL COMPONENTS REFERENCE
| Name | Symbol |
|---|---|
| Accelerator pedal position sensor | K |
| CVT assembly connector (Solenoid valve assembly, transmission fluid temperature sensor) | F |
| CVT control relay | C |
| Crankshaft position sensor | A |
| Data link connector | I |
| Paddle shift switch < Vehicles with paddle shift > | H |
| Primary pulley speed sensor | E |
| Secondary pulley speed sensor | B |
| Shift lock solenoid | L |
| Shift switch assembly | L |
| Stoplight switch | J |
| TCM | G |
| Transmission range switch | D |
