Paddle Shift Switch Check

WARNING: This page is about a different variant/trim than selected.
  1. Check that the paddle shift lever is returned to the original position quickly when the lever is released after operation of the paddle shift lever (+/- side) (pulling to the rear side of the vehicle). In addition, check for abnormal looseness, friction and abnormal noise.
  2. Remove the paddle shift assembly. (Refer to STEERING COLUMN SHAFT ASSEMBLY .
    Fig 1: Identifying Paddle Shift Levers
    G05375815Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Check the continuity between the paddle shift switch connector terminals.

    Standard value:

    CONTINUITY CHART

    Paddle shift lever Terminal number Resistance value
    Upshift and hold the lever. 2 - 3 Continuity exists (2 Ω or less).
    Downshift and hold the lever. 1 - 2
    No operation No continuity between the terminals.

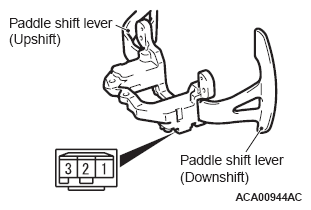

    Fig 2: Identifying Paddle Shift Switch Connector Terminals
    G07047689Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. In the cases other than the above, replace the paddle shift assembly.
