Removal And Installation

WARNING: This page is about a different variant/trim than selected.
WARNING: Be careful not to subject the SRS-ECU to any shocks during removal and installation of the transaxle control cable assembly.

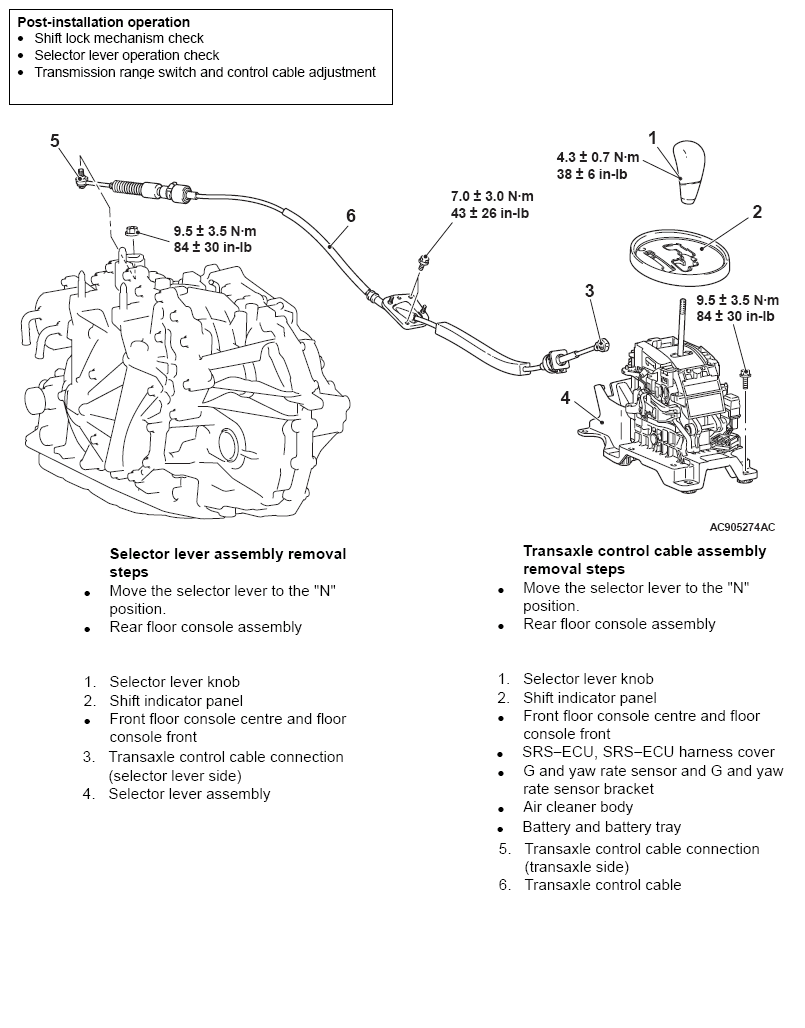

Fig 1: Transaxle Control Replacement Components With Torque Specifications
G07047692Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
