Removal And Installation: CVT

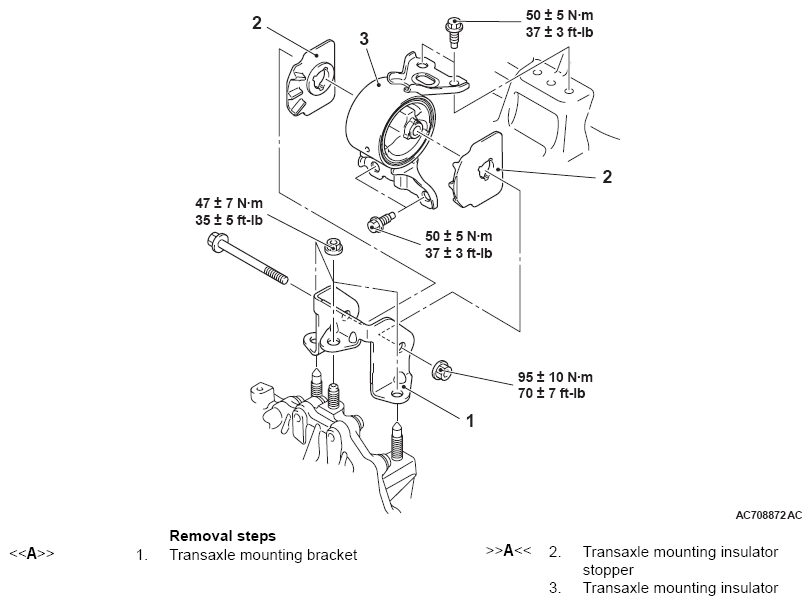

Fig 1: Transaxle Mounting Replacement Components With Torque Specifications (CVT)
G07048220Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
