Removal And Installation: M/T

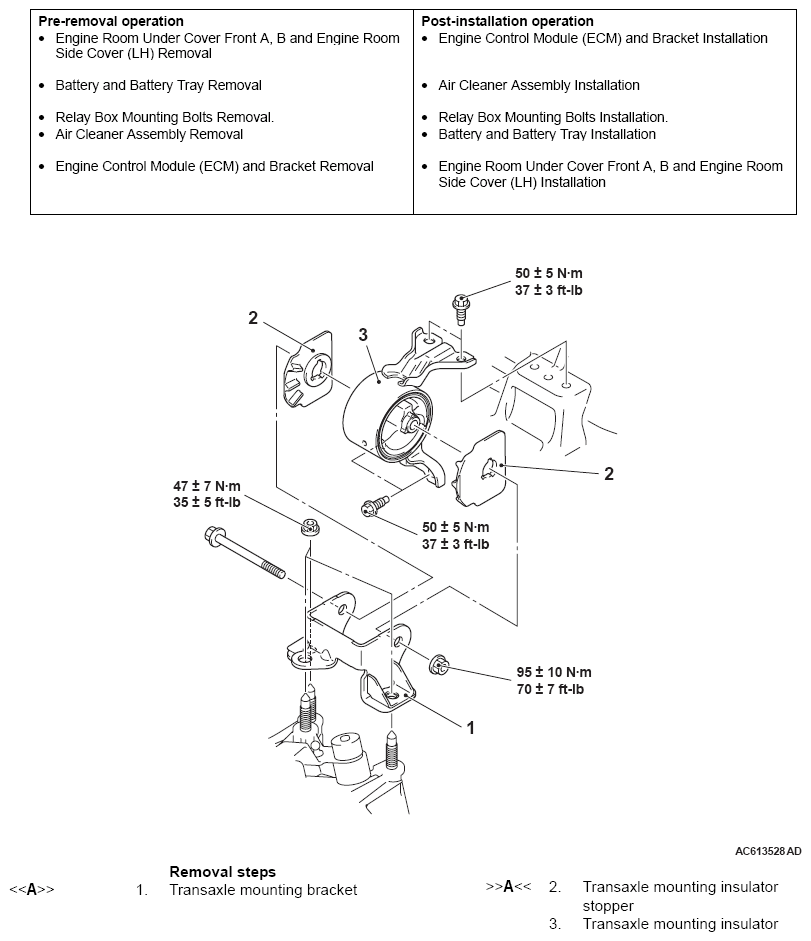

Fig 1: Transaxle Mounting Replacement Components With Torque Specifications (M/T)
G07048219Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
