Electrical - DTC P0A09 Troubleshooting Revision
No: TSB-12-54-001DATE: January, 2012
MODEL: 2012 i-MiEV
SUBJECT:
DTC POA09 TROUBLESHOOTING - SERVICE MANUAL REVISION
[TSB Revision: TSB- 12-54-001]
PURPOSE
Steps have been added to the troubleshooting procedure for the EV-ECU DTC: POAO9 in the service manual. This TSB provides the new information.
AFFECTED VEHICLES
2012 i-MiEV
AFFECTED SERVICE MANUALS
2012 i-MiEV Group 54D >> EV-ECU >> Diagnostic Troubleshooting Procedures >> DTC P0A09 - Auxiliary Battery Charging Control Circuit

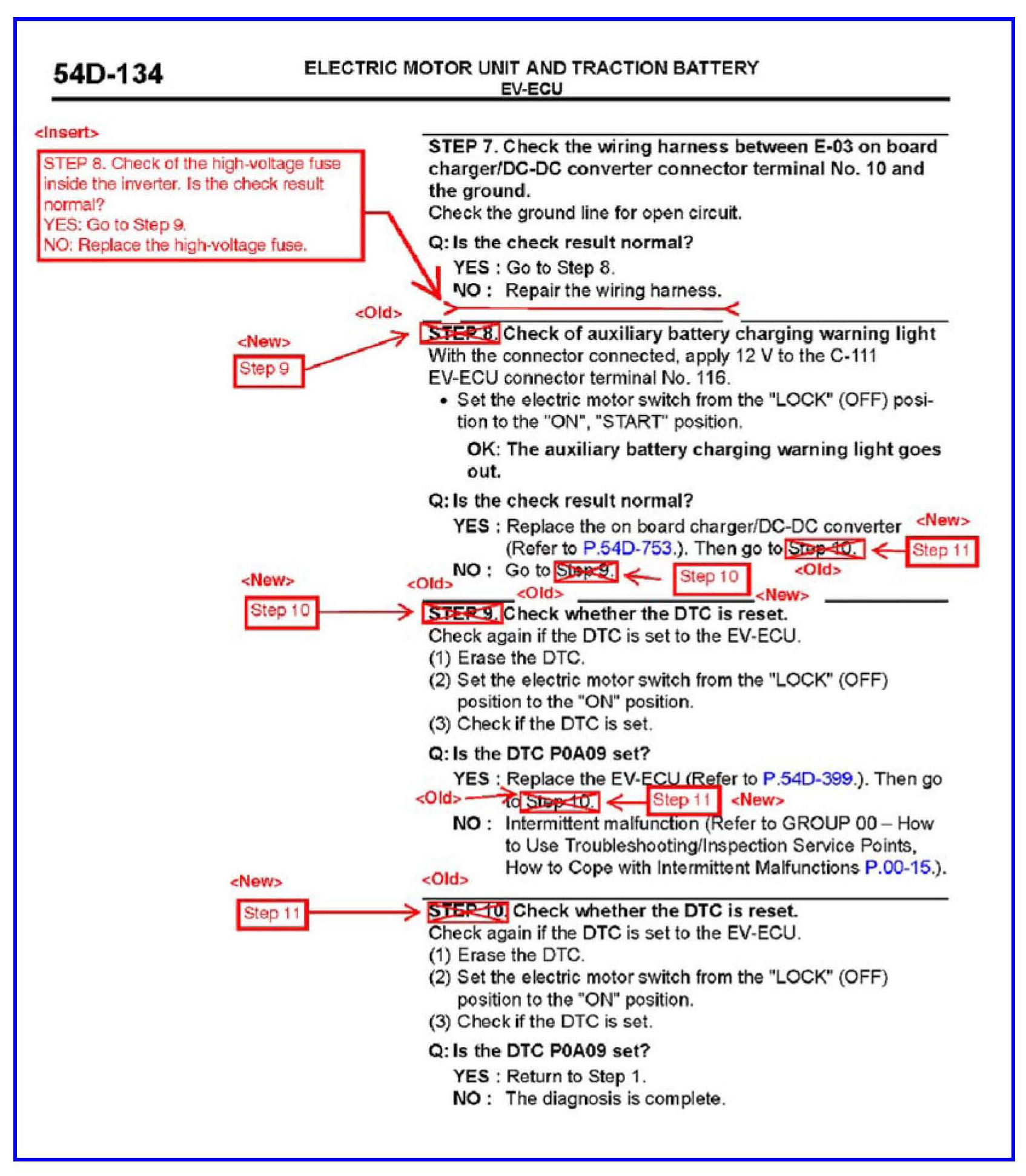

Make the following changes to Group 54D << EV-ECU >> Diagnostic Troubleshooting Procedures� DTC P0A09 - Auxiliary Battery Charging Control Circuit
