A/C - Revised A/C Control Unit Torque Specifications

No: TSB-13-55-001

DATE March, 2013

MODEL: 2012 i-MiEV

SUBJECT:

TORQUE SPECIFICATIONS FOR A/C CONTROL UNIT MOUNTING - SERVICE MANUAL REVISION

PURPOSE

This TSB updates the torque specification for the A/C control unit mounting bolts.

AFFECTED VEHICLES

2012 i-MiEV

AFFECTED SERVICE MANUALS

2012 i-MiEV Service manual: Group 55 Heater - Ventilation and Air Conditioning > A/C Control Unit > Removal and Installation.

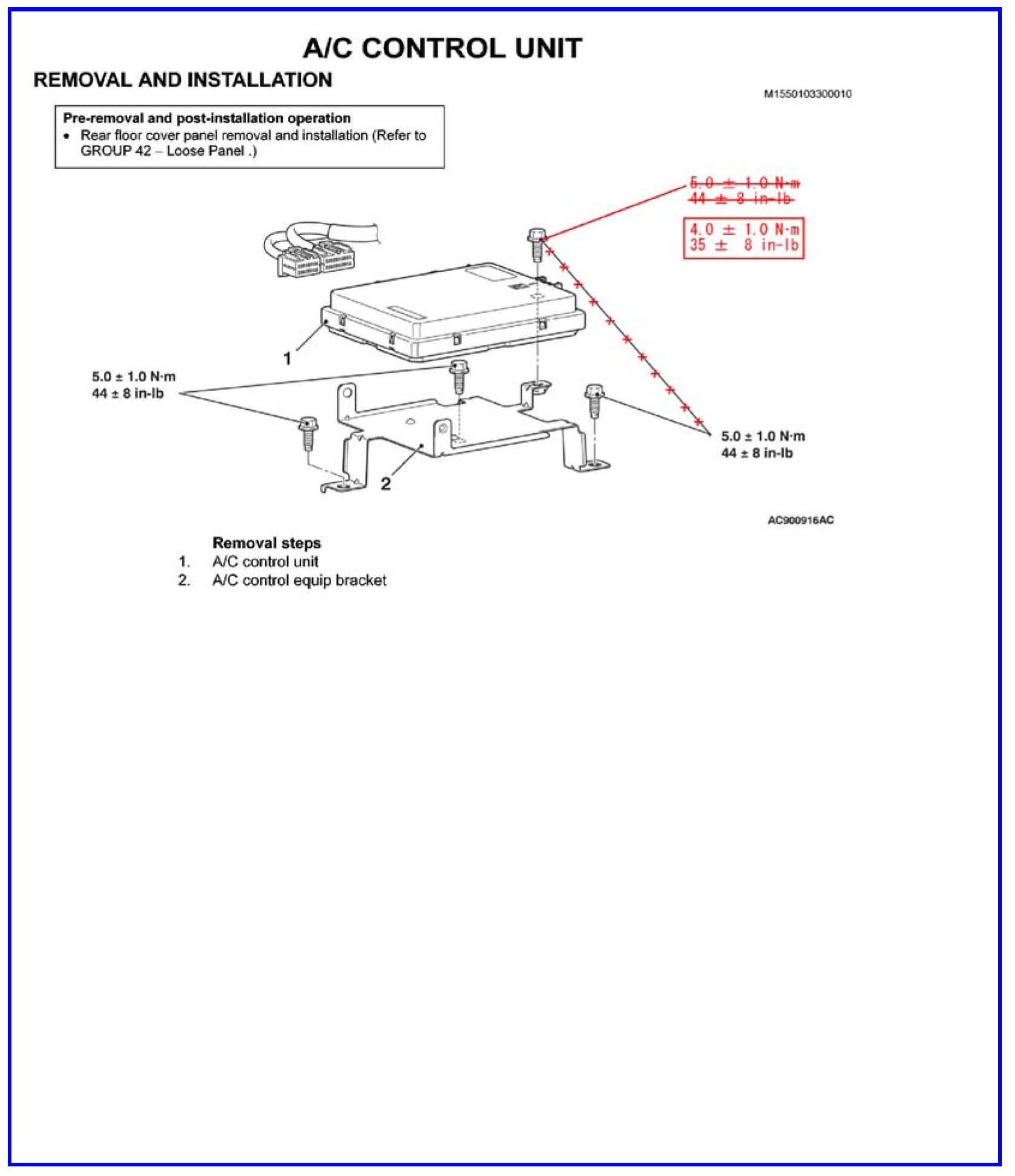

Please apply the following changes to the 2012 i-MiEV Service Manuals: Group 55 - Heating, Air Conditioning and Ventilation > A/C Control Unit > Removal and Installation
