Electrical - Revised ETACS ECU Removal/Installation

No: TSB-12-54-010

DATE: May, 2012

MODEL: 2012 i-MiEV

SUBJECT:

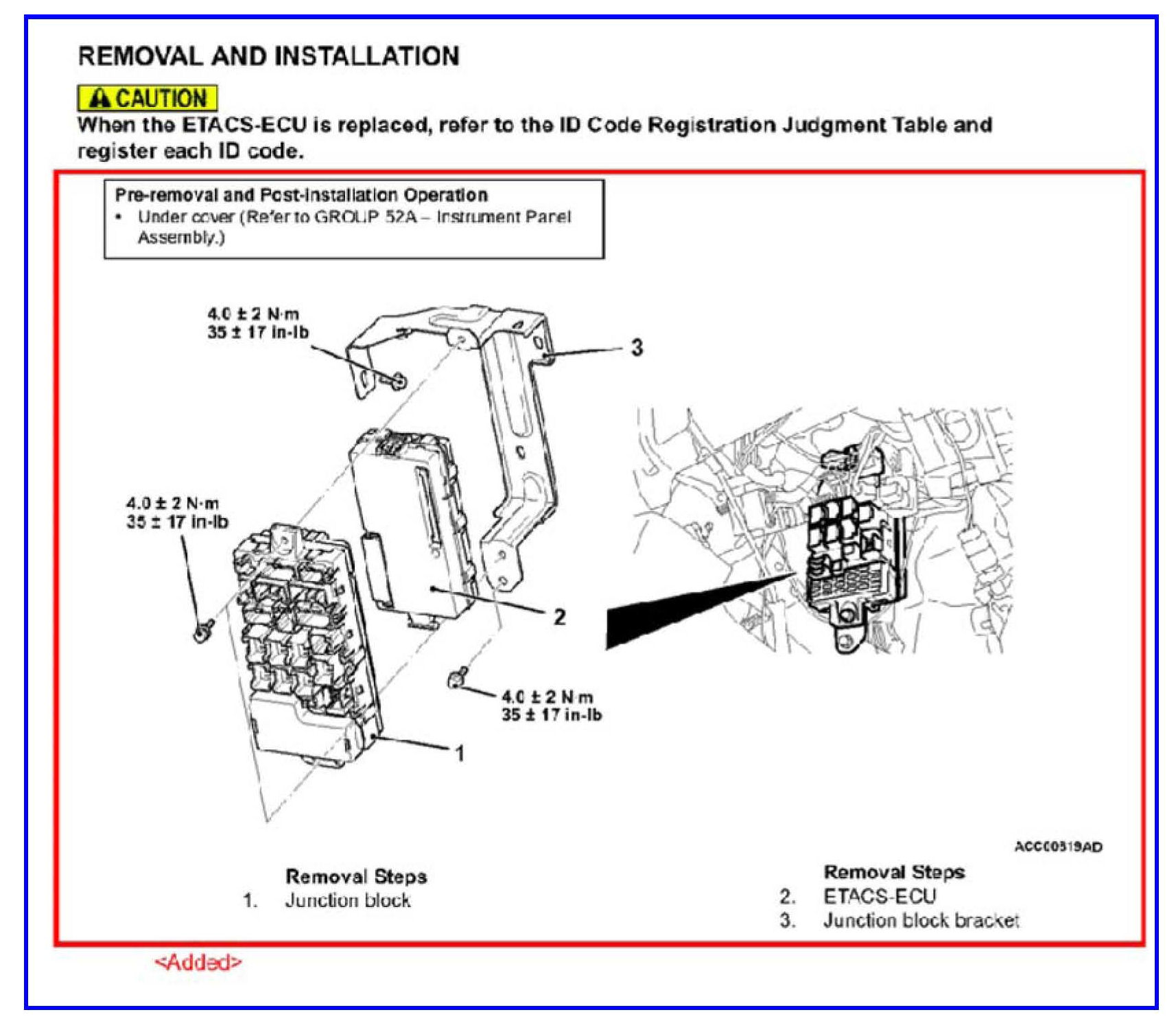

ETACS-ECU REMOVAL AND INSTALLATION
UPDATE - SERVICE MANUAL REVISION

[TSB Revision: TSB-12-54-010]

PURPOSE

This service bulletin adds the ETACS-ECU removal and installation process located in the service manual.

AFFECTED VEHICLES

2012 i-MiEV

APPLICABLE SERVICE MANUALS

2012 i-MiEV Service Manual Group 54A: Chassis Electrical >> ETACS >> Removal and Installation





Add this information to the Service Manual Group 54A: Chassis Electrical >> ETACS >> Removal and Installation
