Electrical System - Revised Troubleshooting For Multiple DTC's
No: TSB-12-54-014DATE: October, 2012
MODEL: 2012 i-MiEV
SUBJECT:
DTC P0AA1, P0AA4, P0AE2, P1A15, P1A16, P1A17,
P1A26, & P1AF2 - SERVICE MANUAL REVISION
[TSB Revision: TSB-12-54-014
]
PURPOSE
This TSB provides revised trouble shooting procedures for EV-ECU diagnostic codes P0AA1, P0AA4, P0AE2, P1A15, P1A16, P1A17, P1A26, and P1AF2.
AFFECTED VEHICLES
2012 i-MiEV
APPLICABLE SERVICE MANUALS
2012 i-MiEV Service Manual Group 54D: Electric Motor Unit and Traction Battery - EV-ECU - Diagnostic Trouble Control Procedures

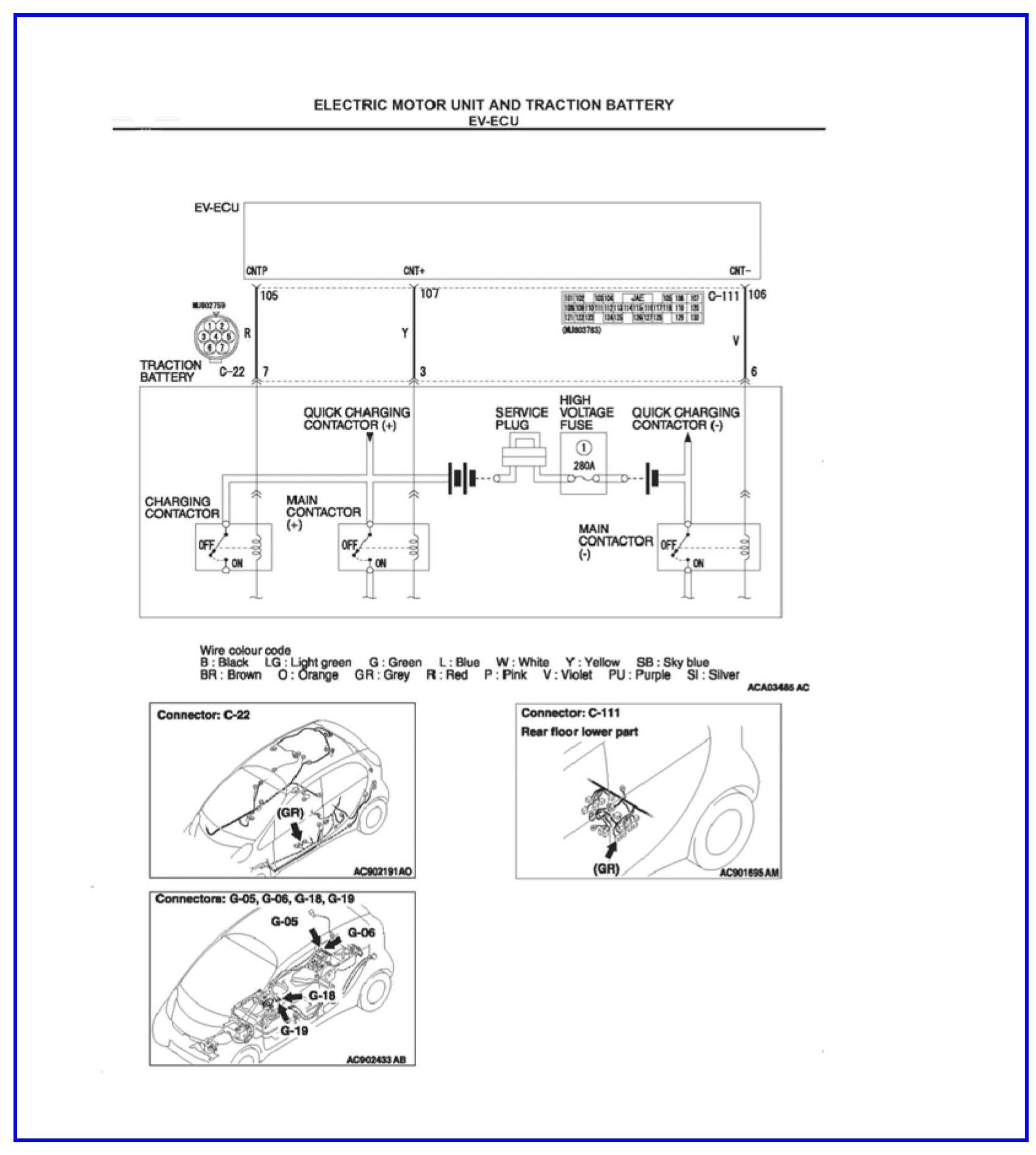

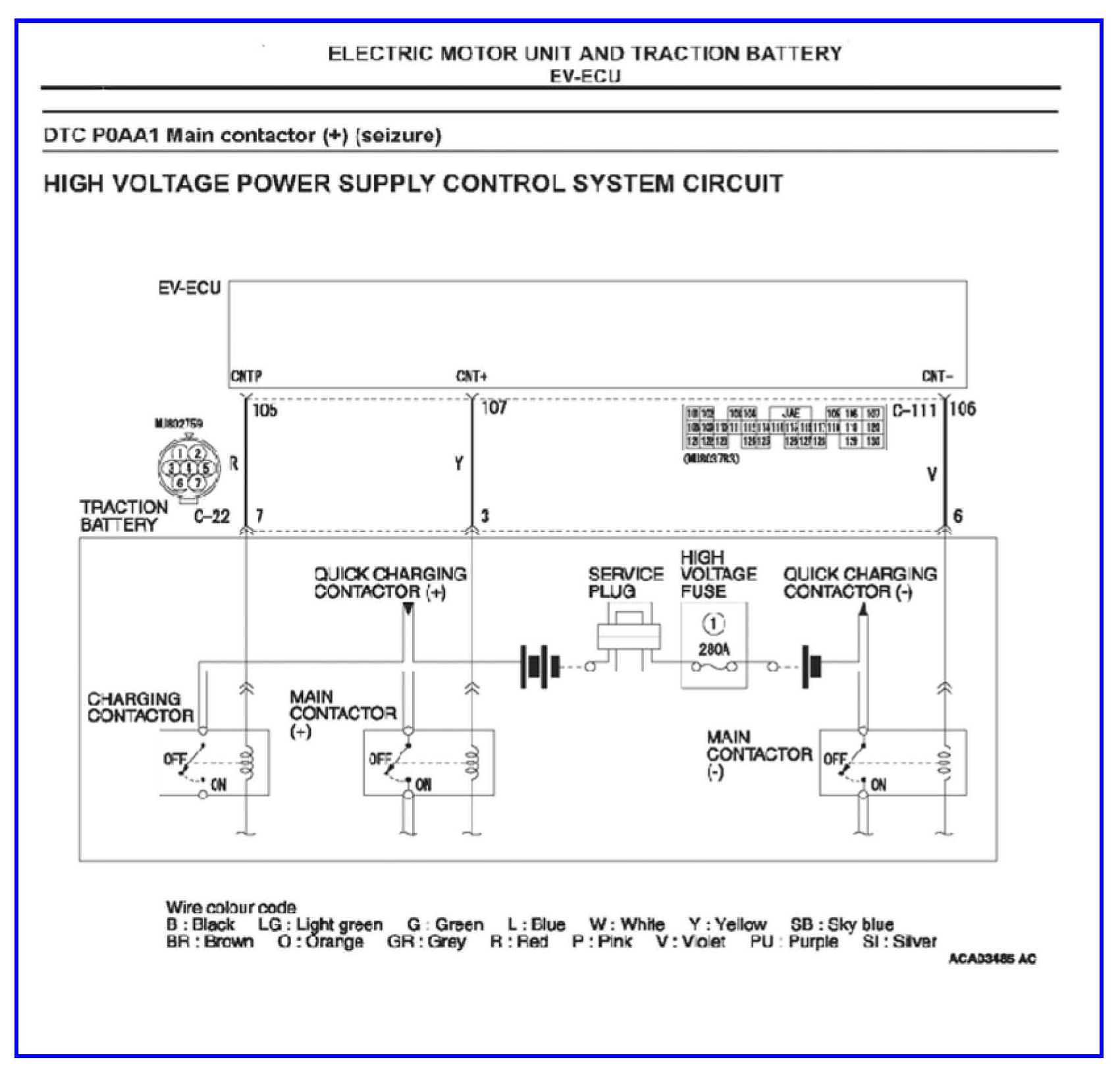

DTC P0AA1 Main contactor (+) (seizure)
DTC P0AA4 Main contactor (-) (seizure
DTC P0AE2 Charging contactor (seizure)
DTC P1A15 High-voltage system error (1)
DTC P1A16 High-voltage system error (2)
DTC P1A17 High-voltage system error (3)
DTC P1A26 Condenser discharge command OFF waiting timeout (EMCU)
DTC P1AF2 EMCU Condenser discharge command F/B
Only new information is shown in this TSB

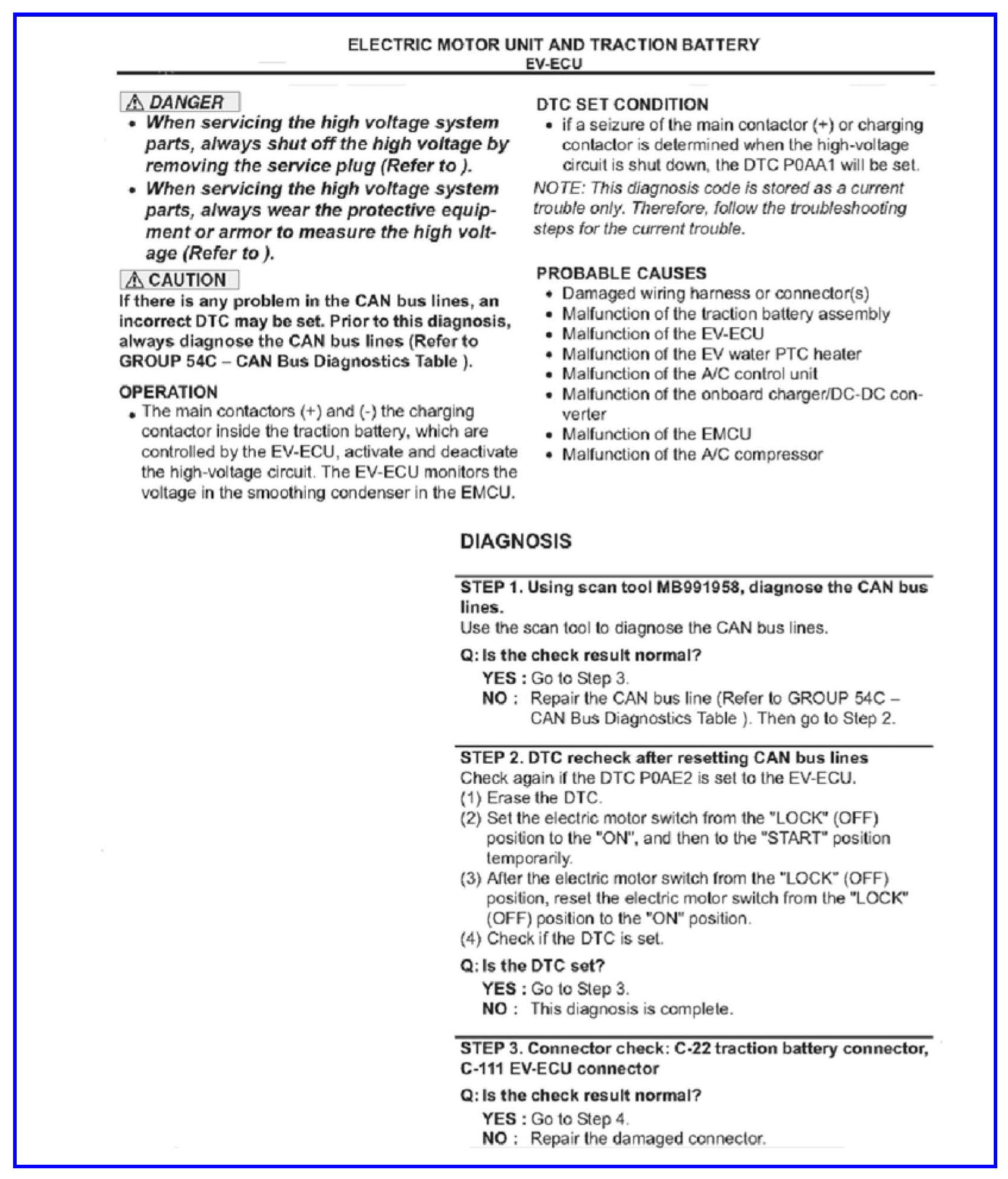

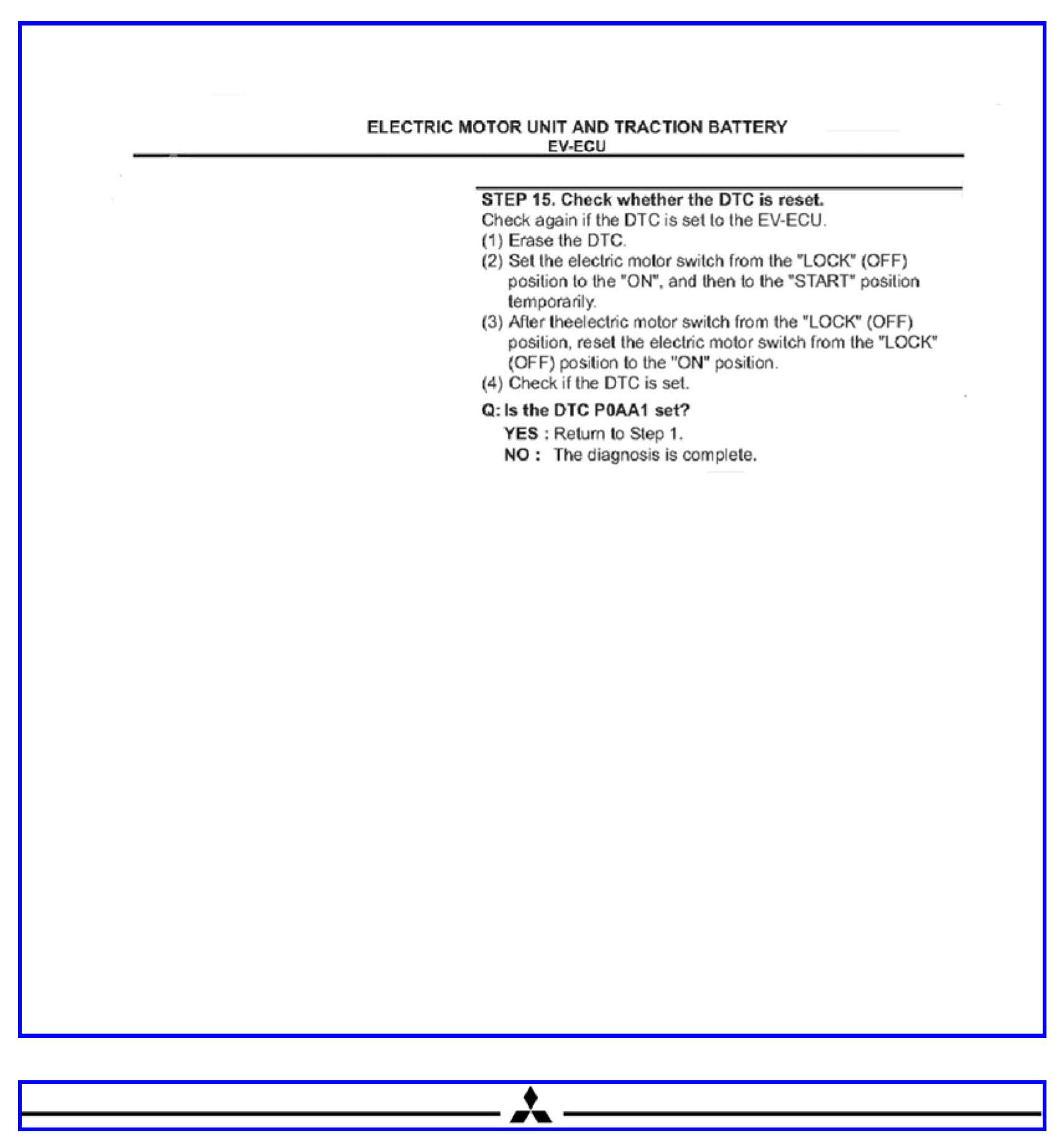

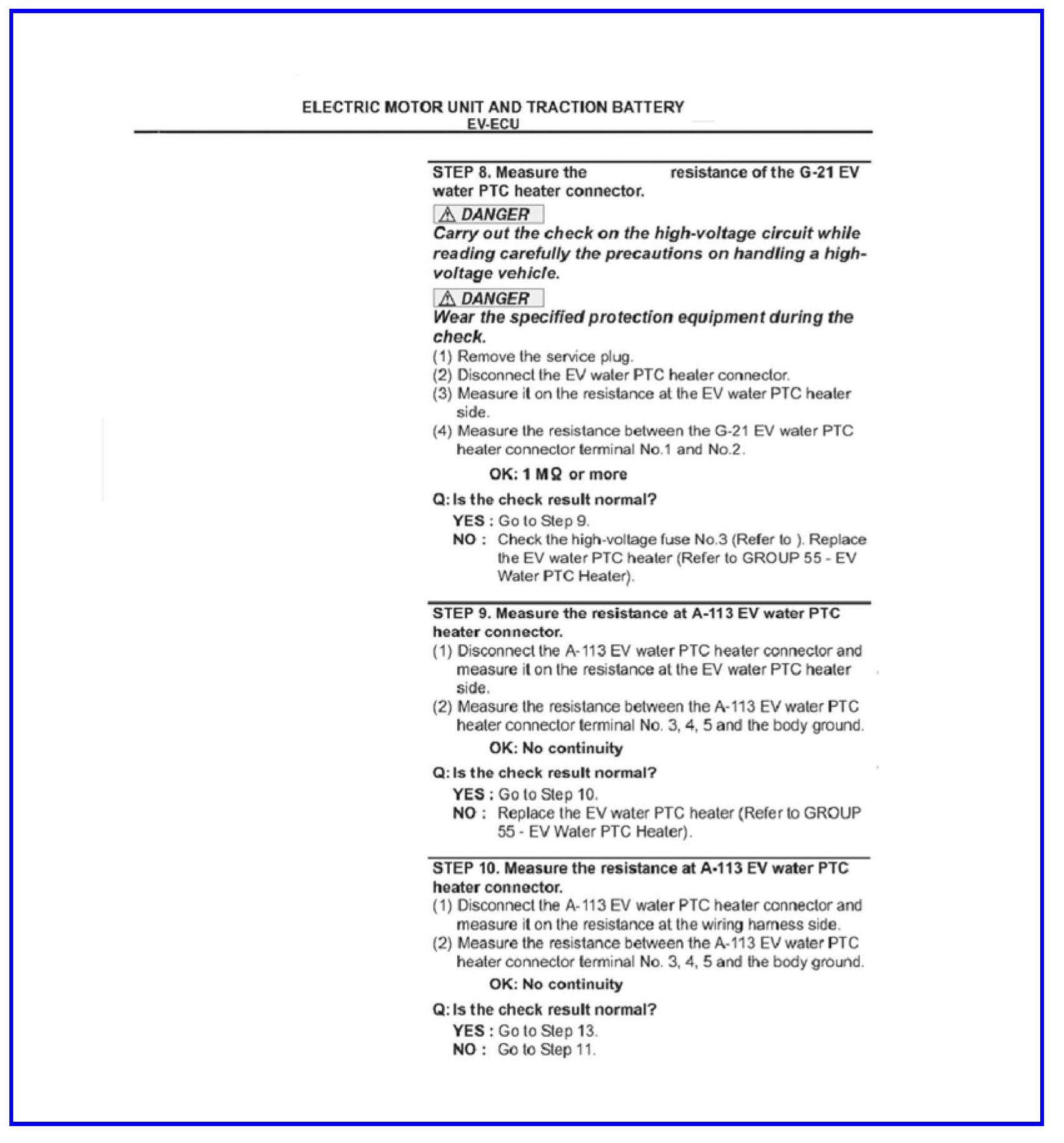

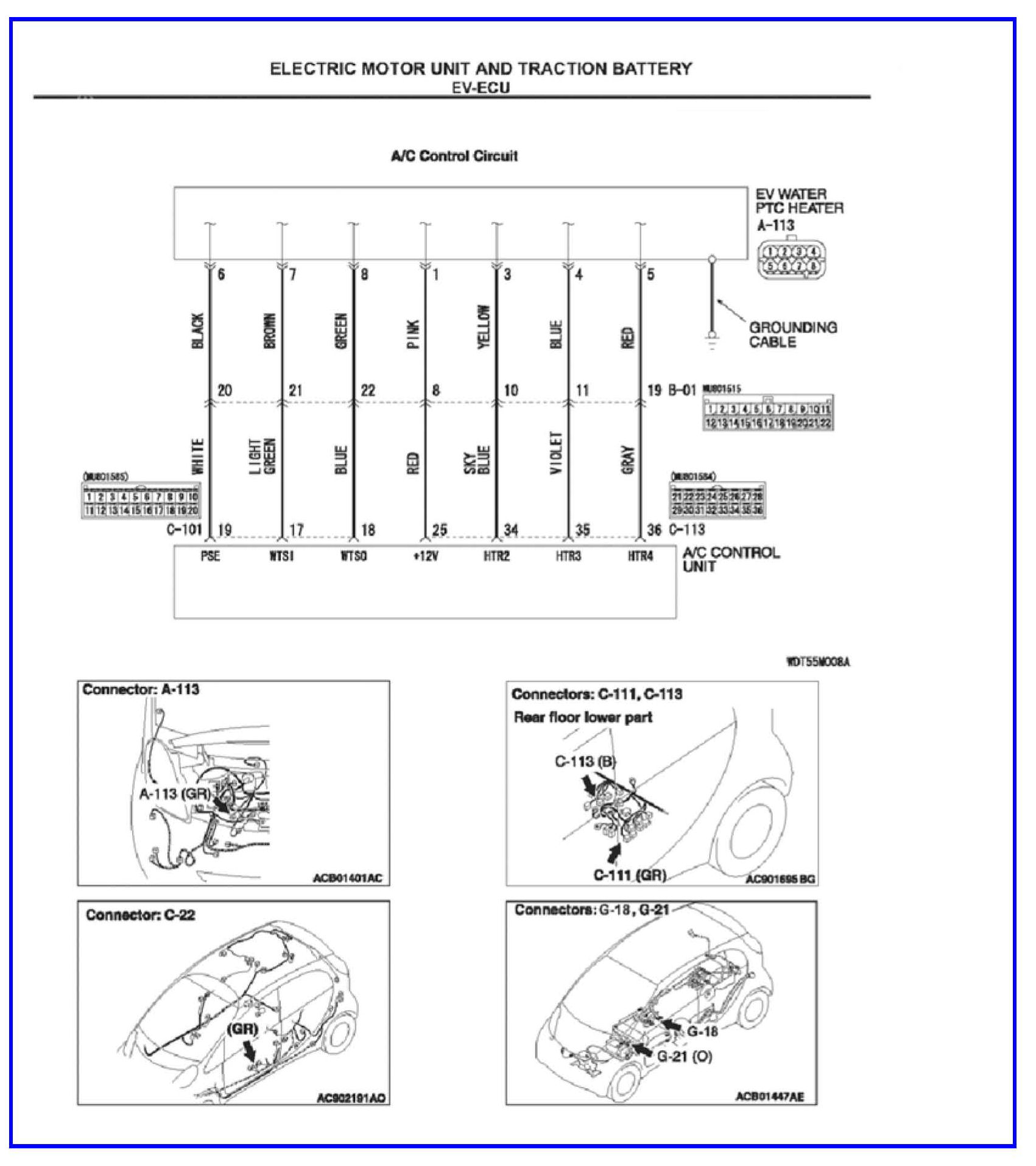

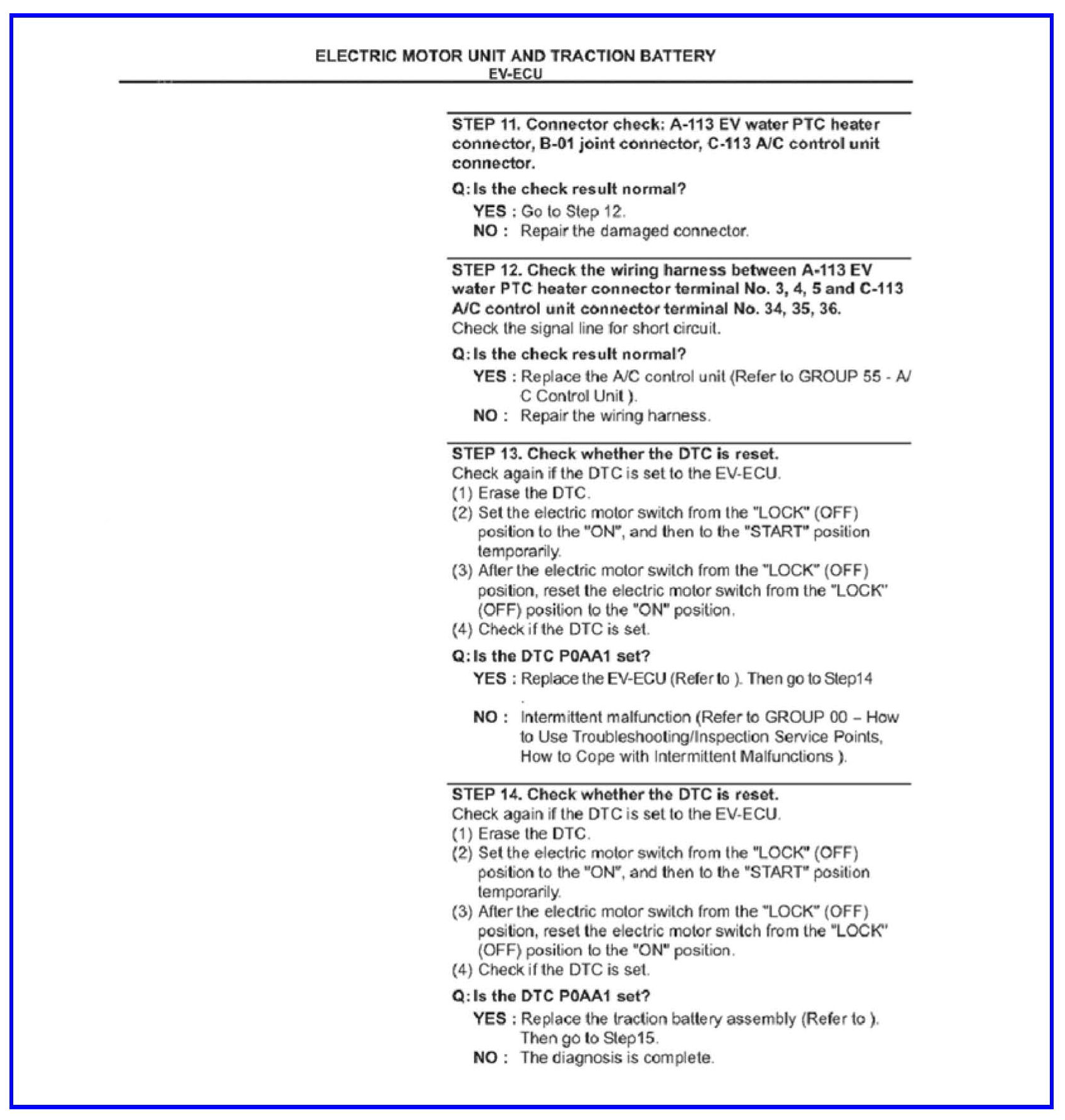

Please replace the troubleshooting procedures for DTC P0AA1 with the following pages:

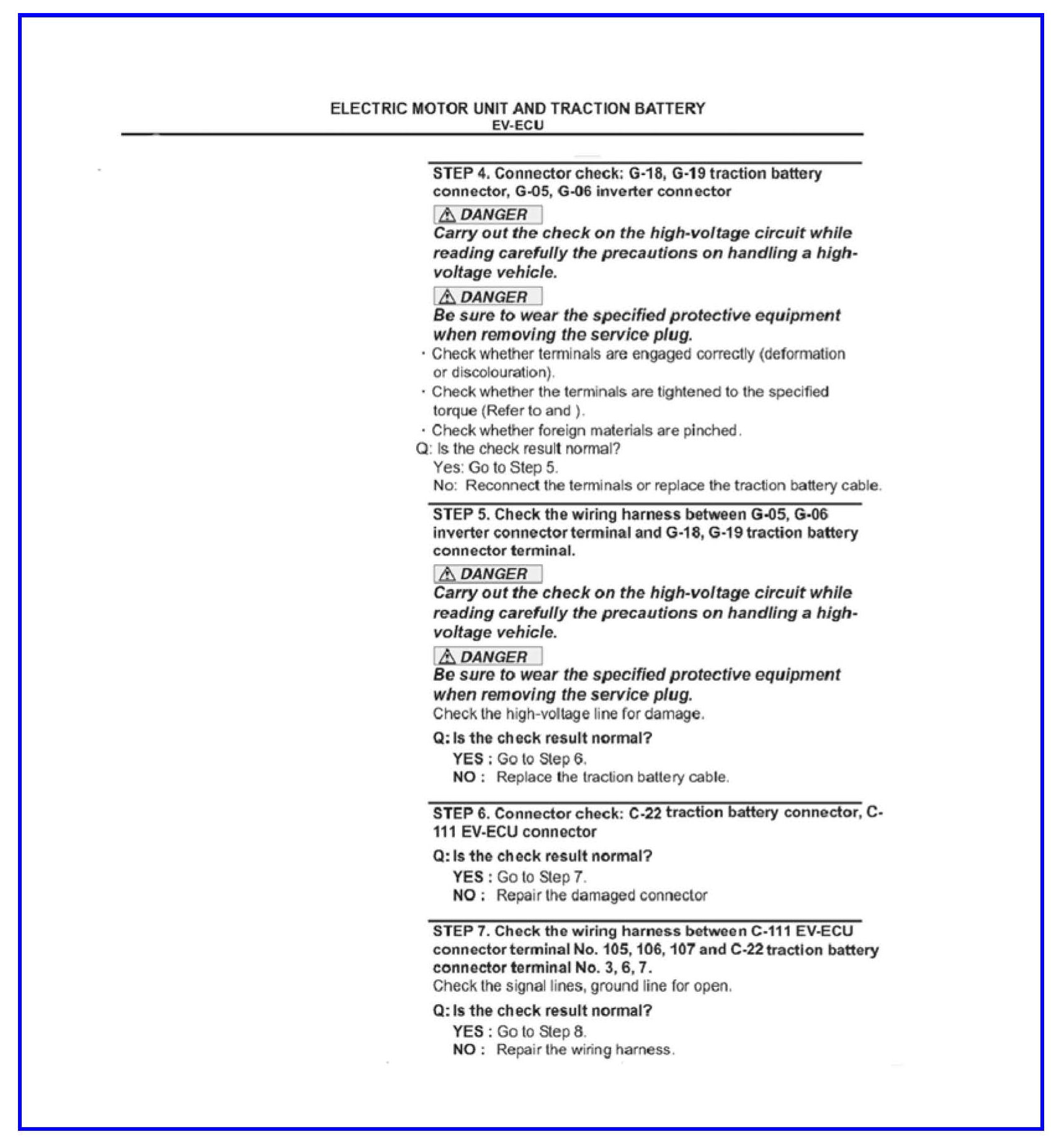

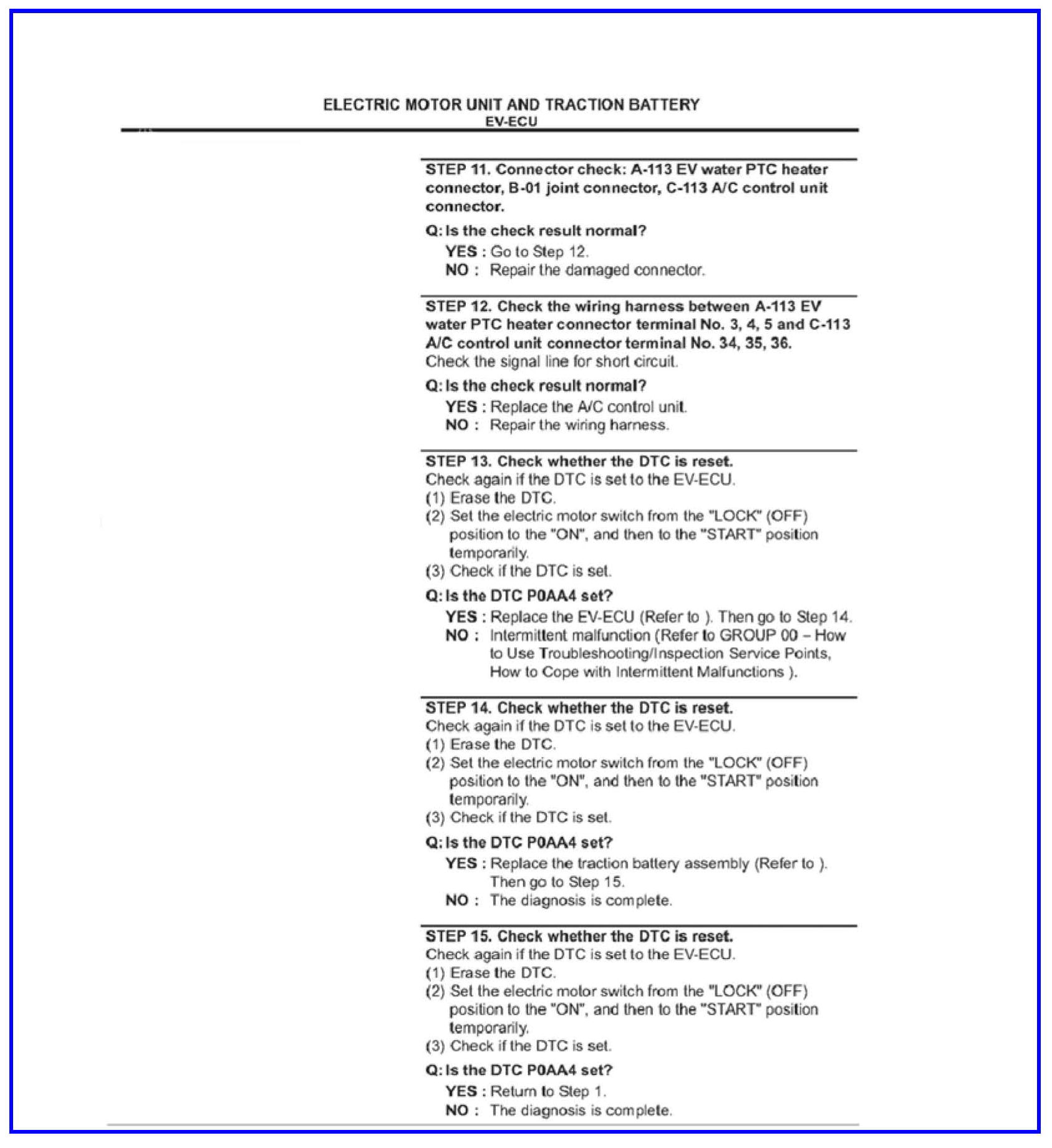

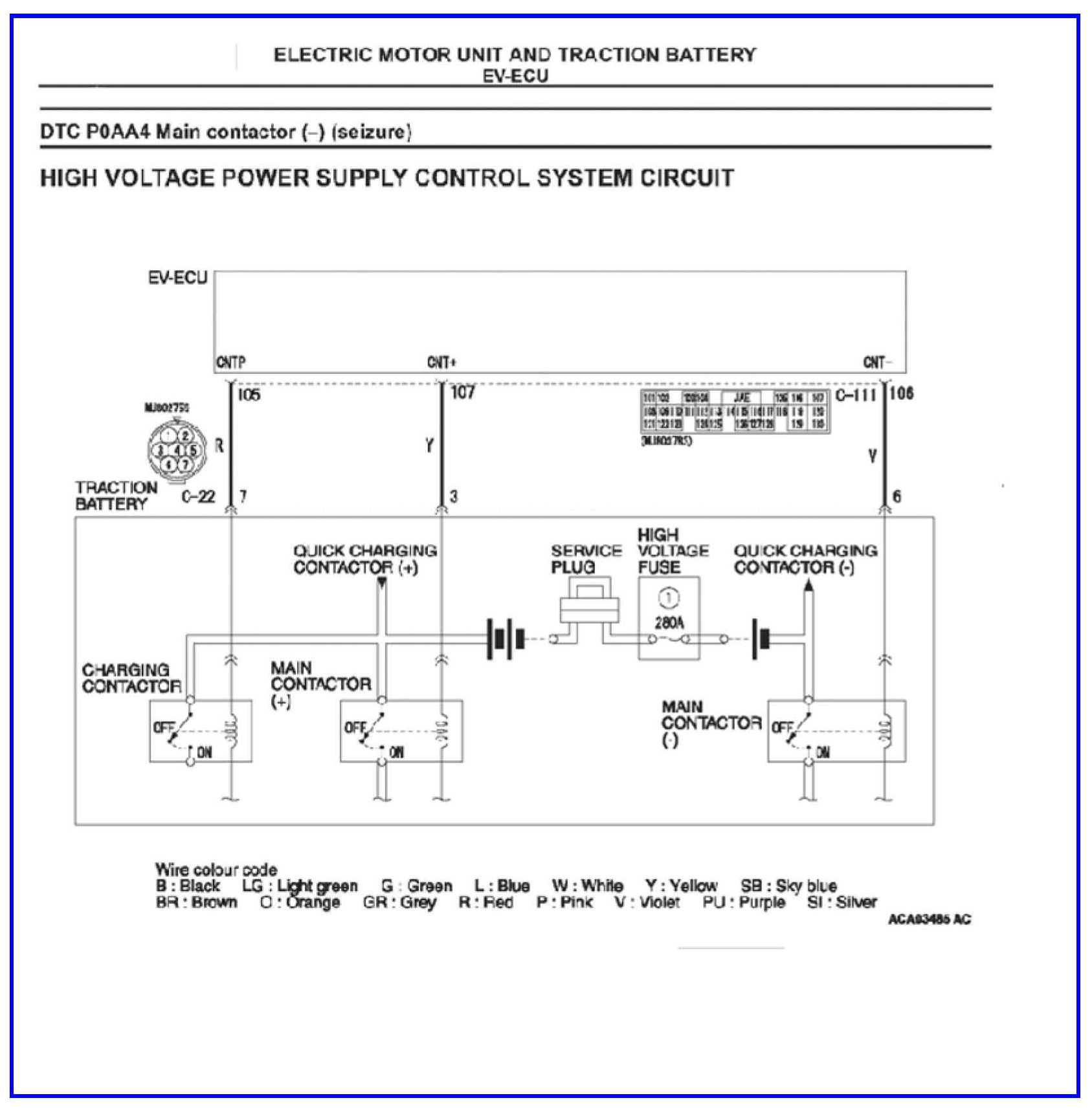

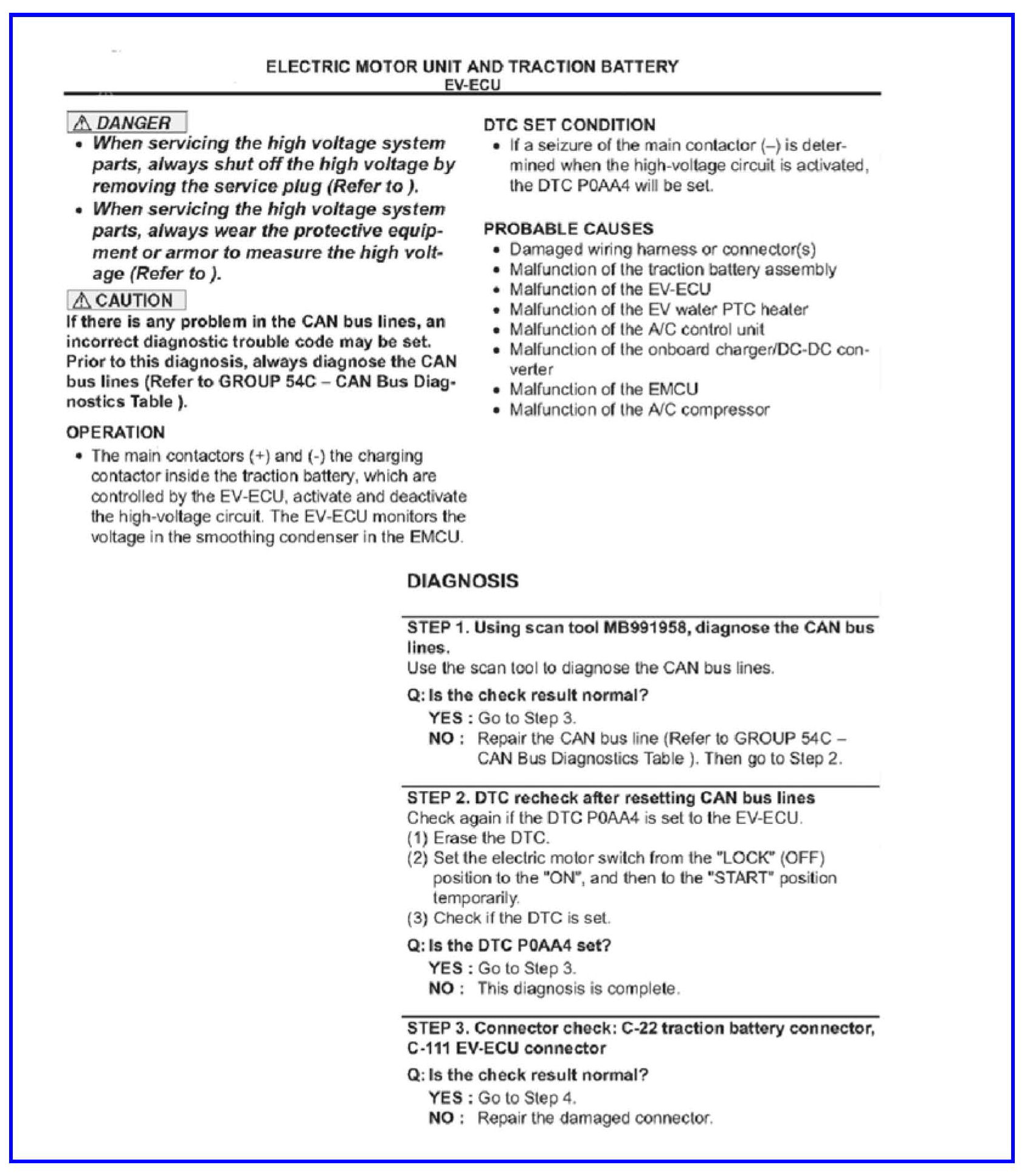

Please replace the troubleshooting procedures for DTC P0AA4 with the following pages:

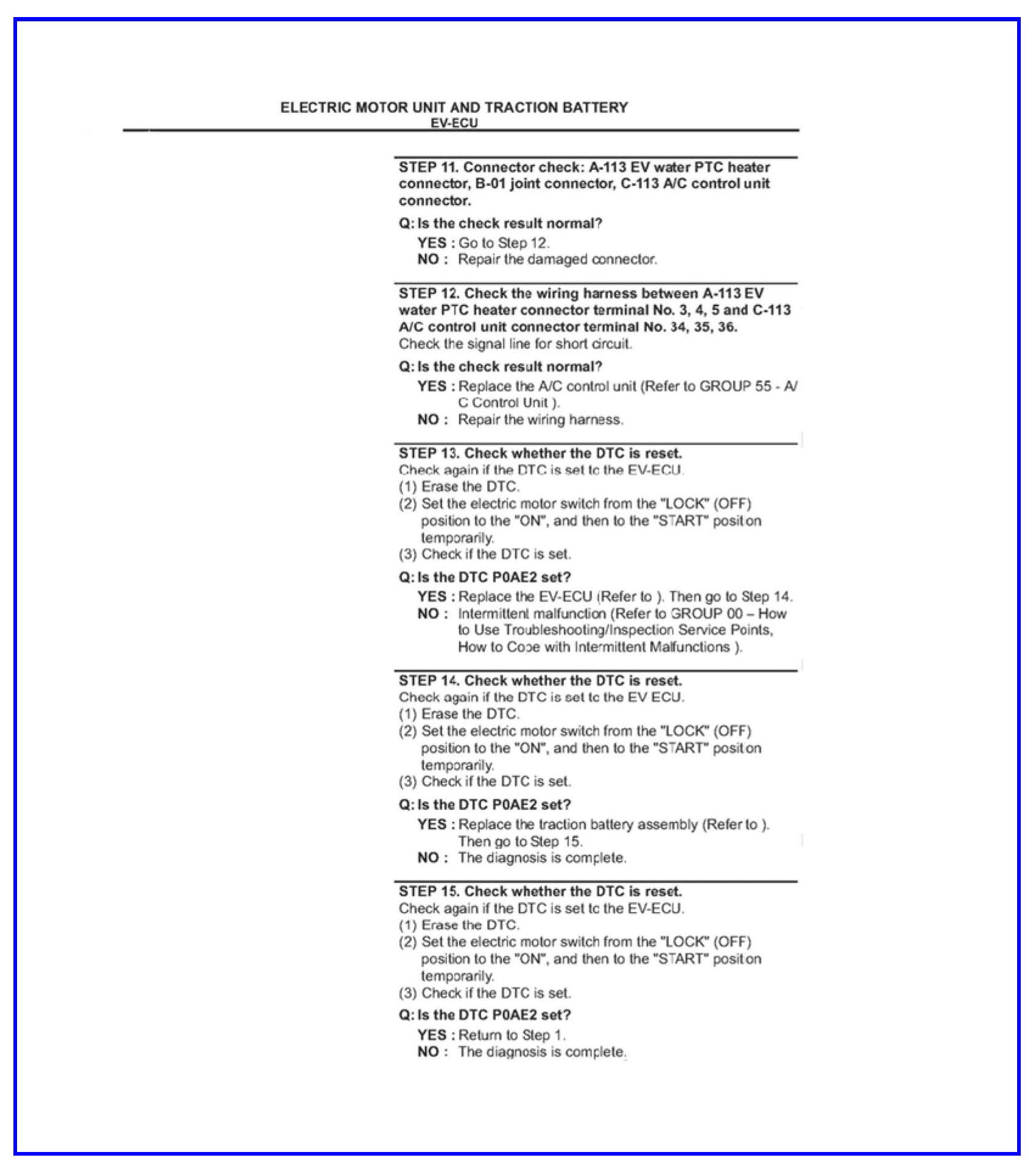

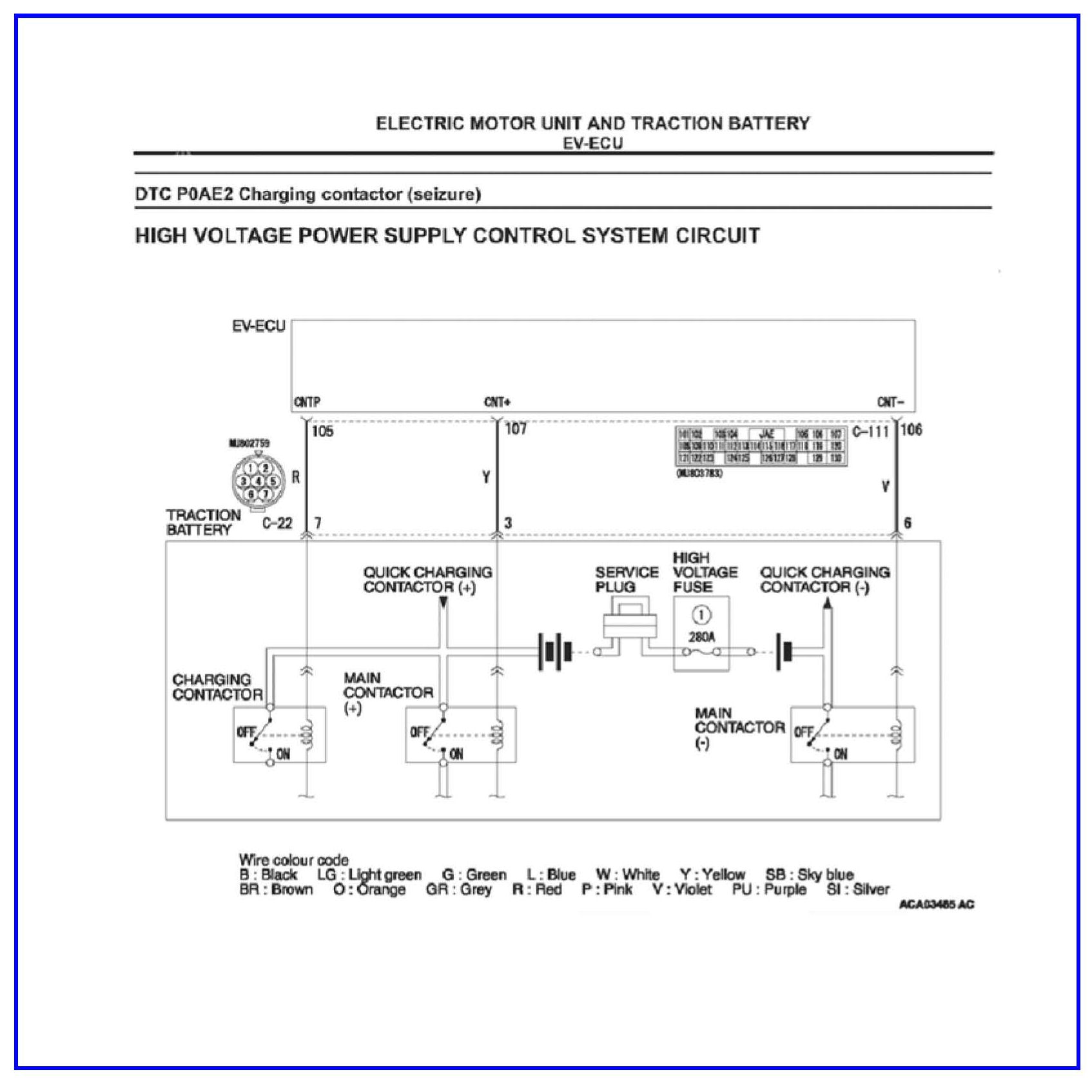

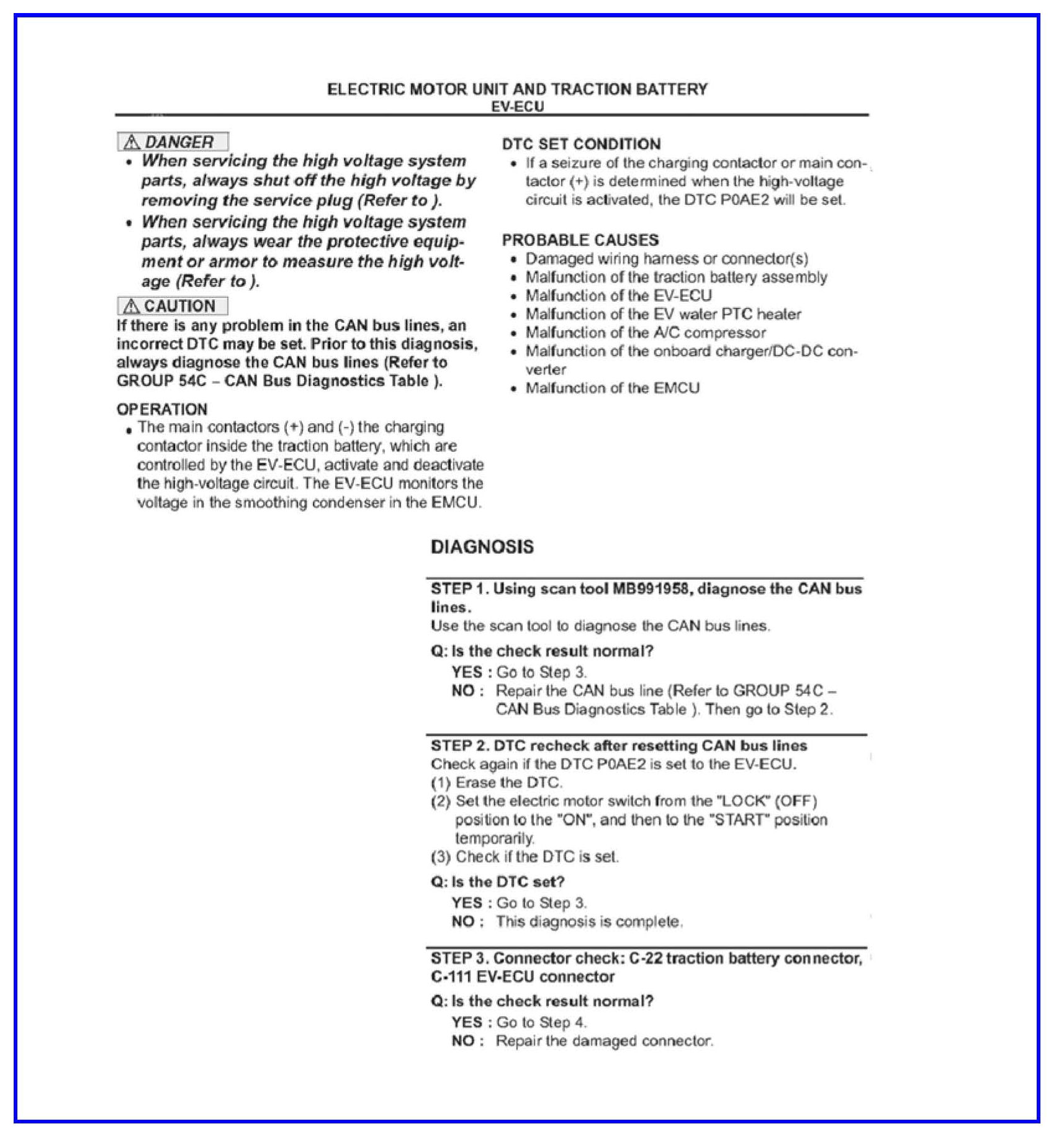

Please replace the troubleshooting procedures for DTC P0AE2 with the following pages:

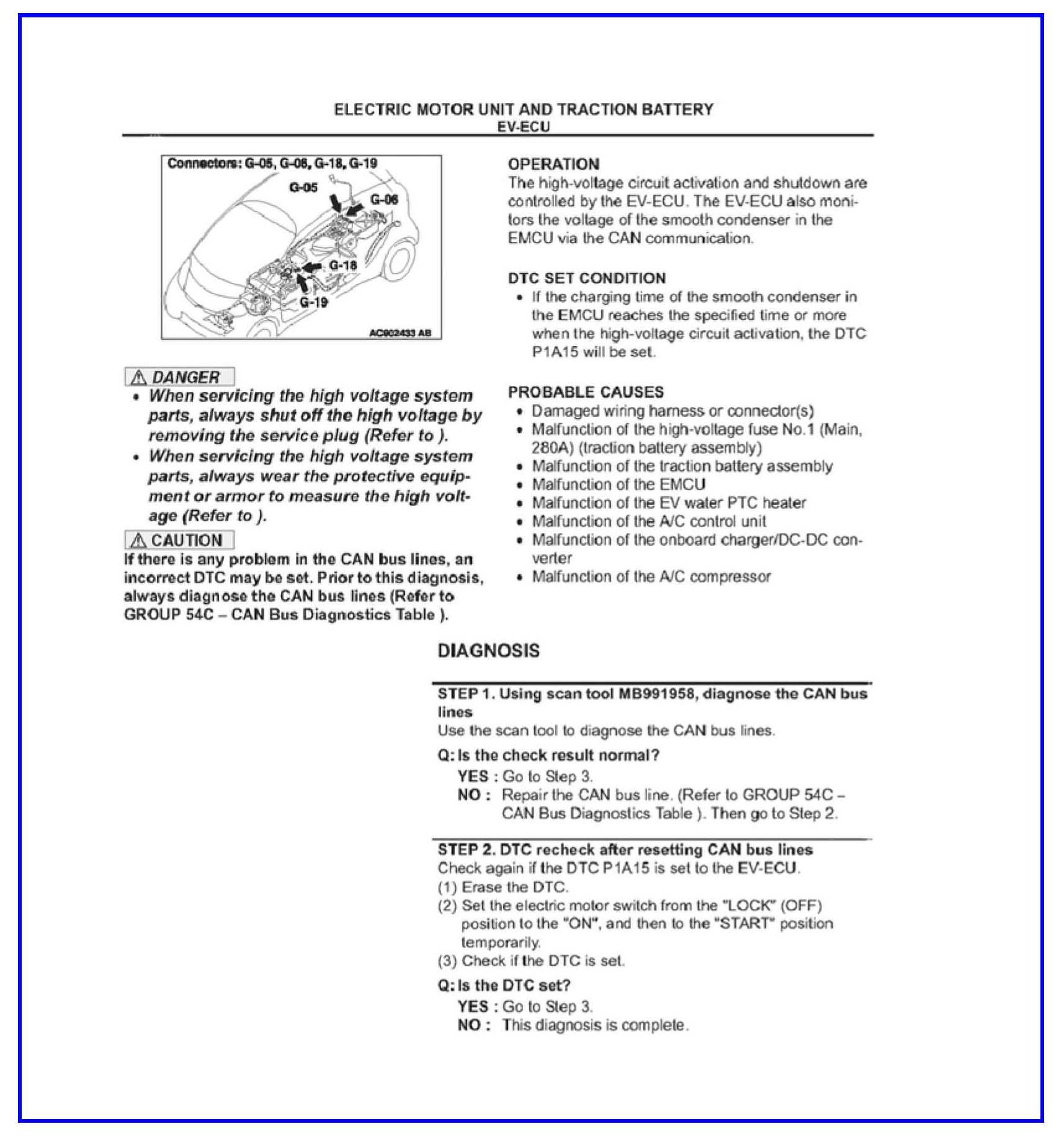

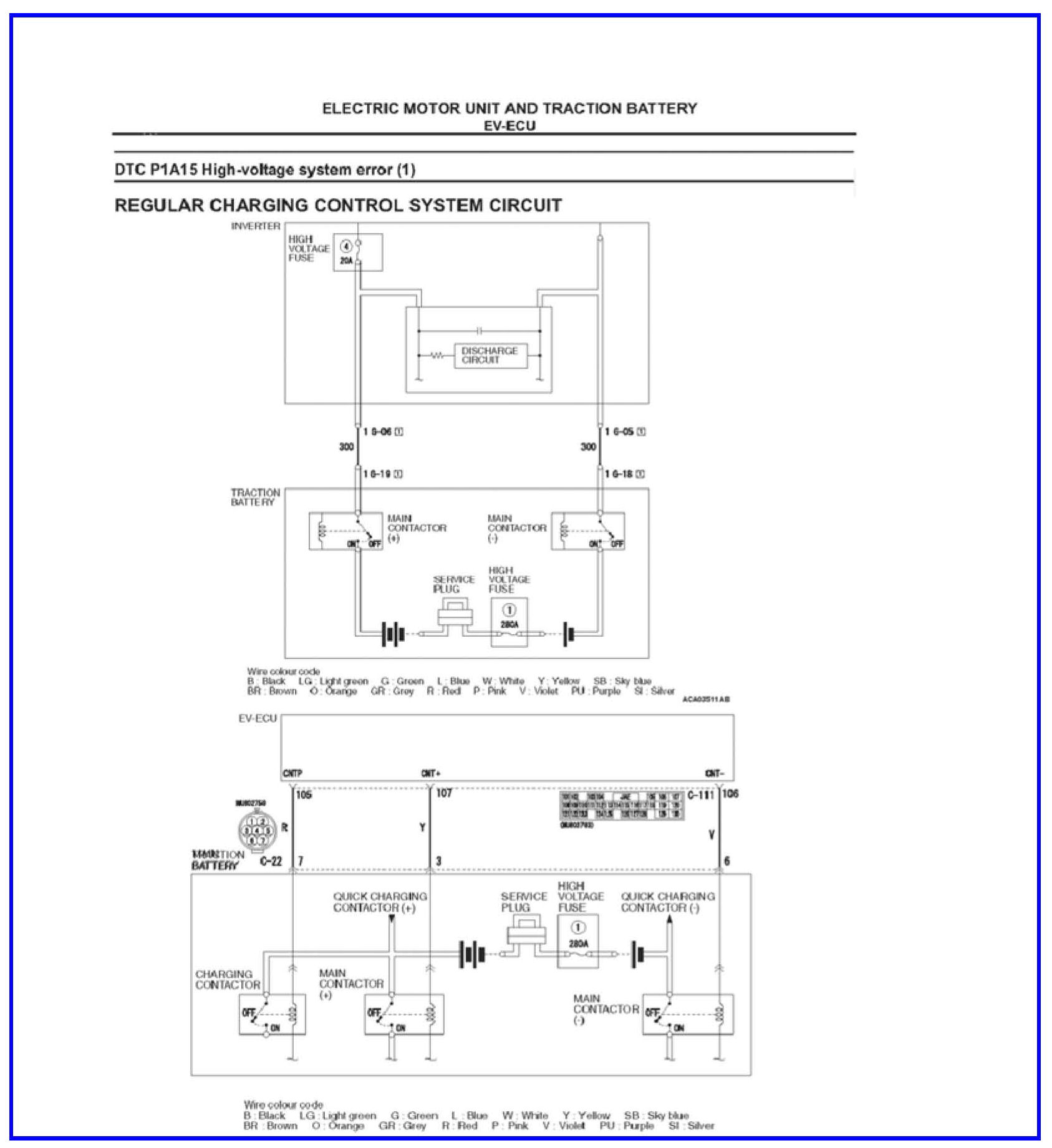

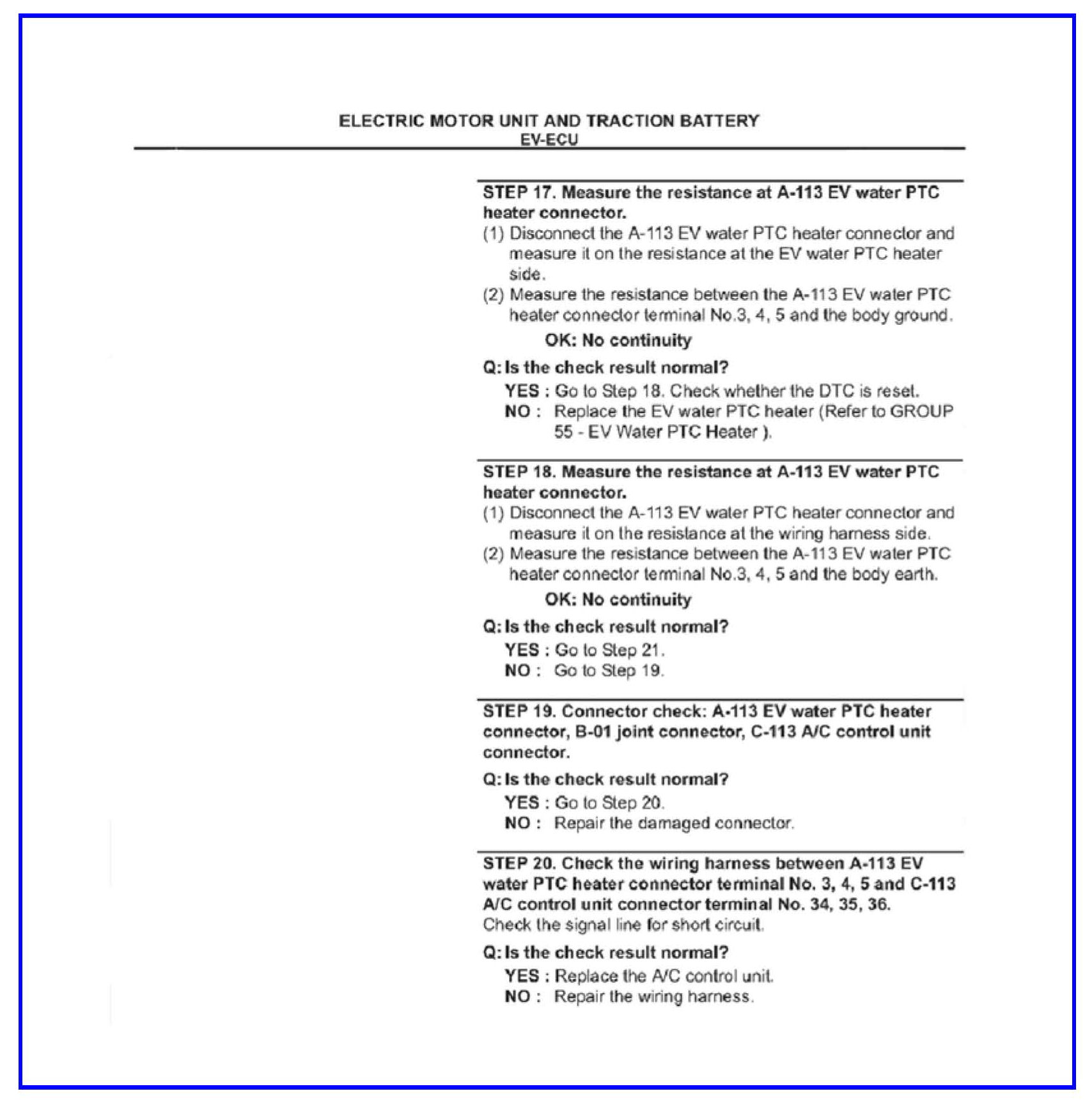

Please replace the troubleshooting procedures for DTC P1A15 with the following pages:

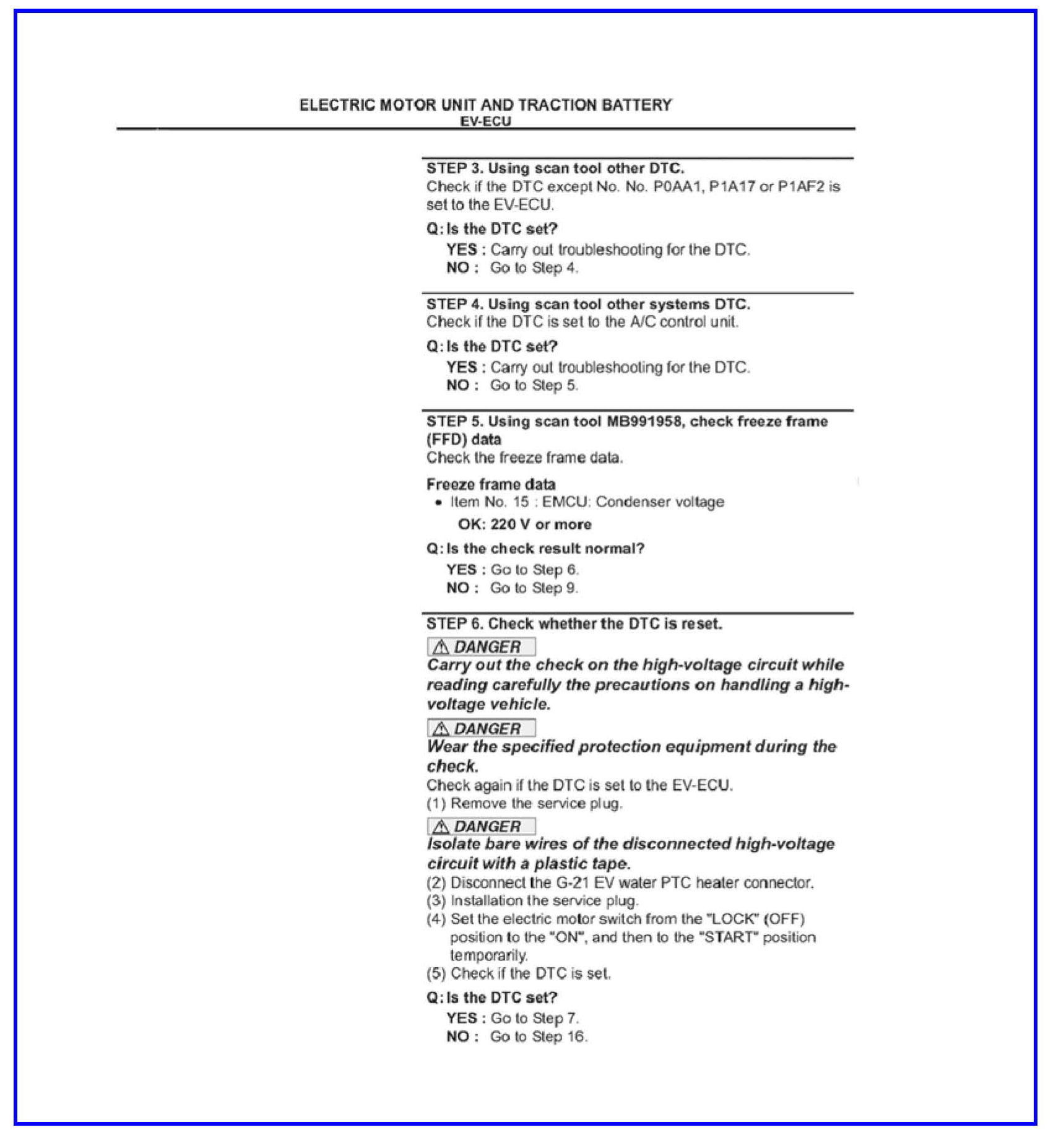

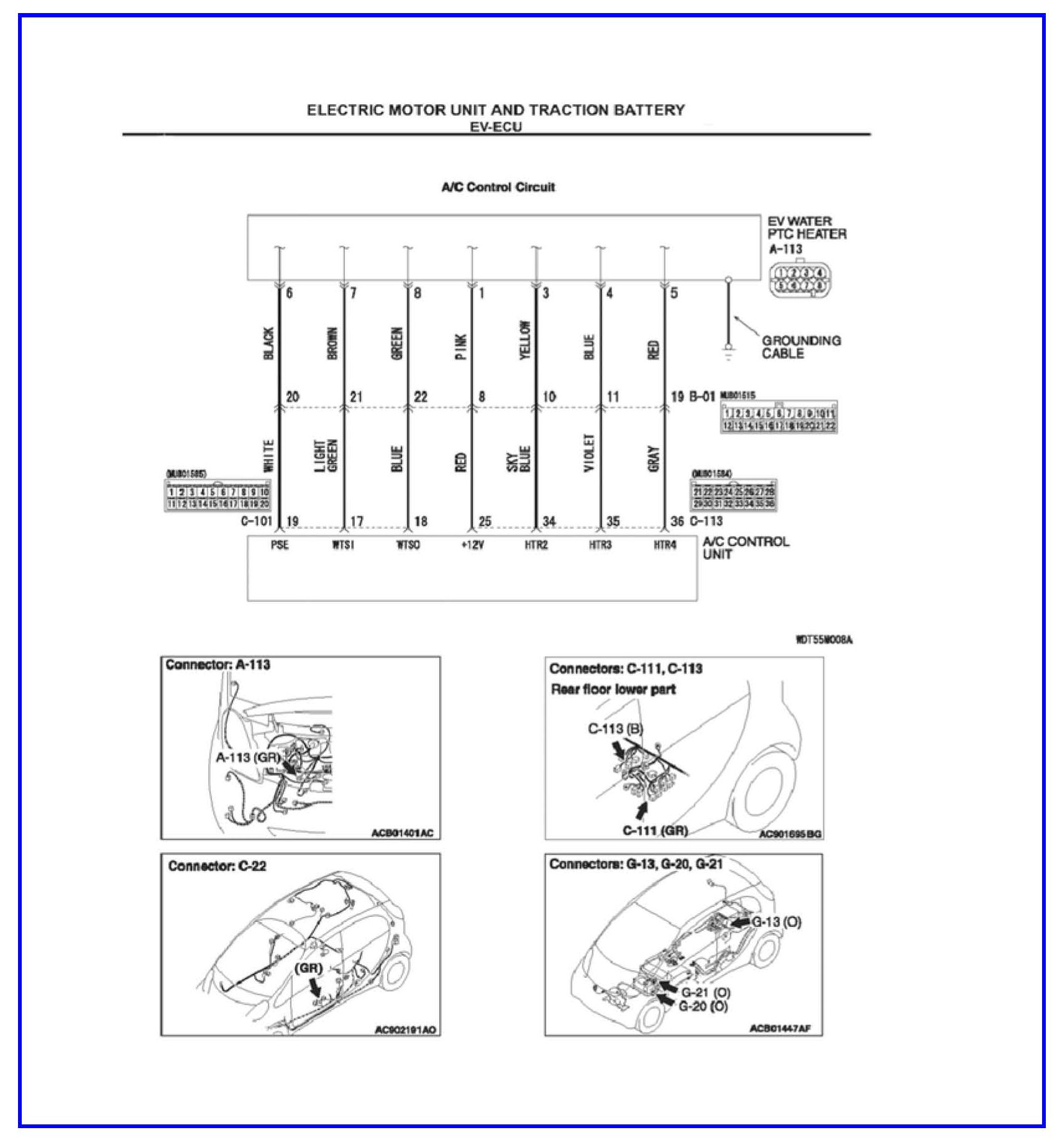

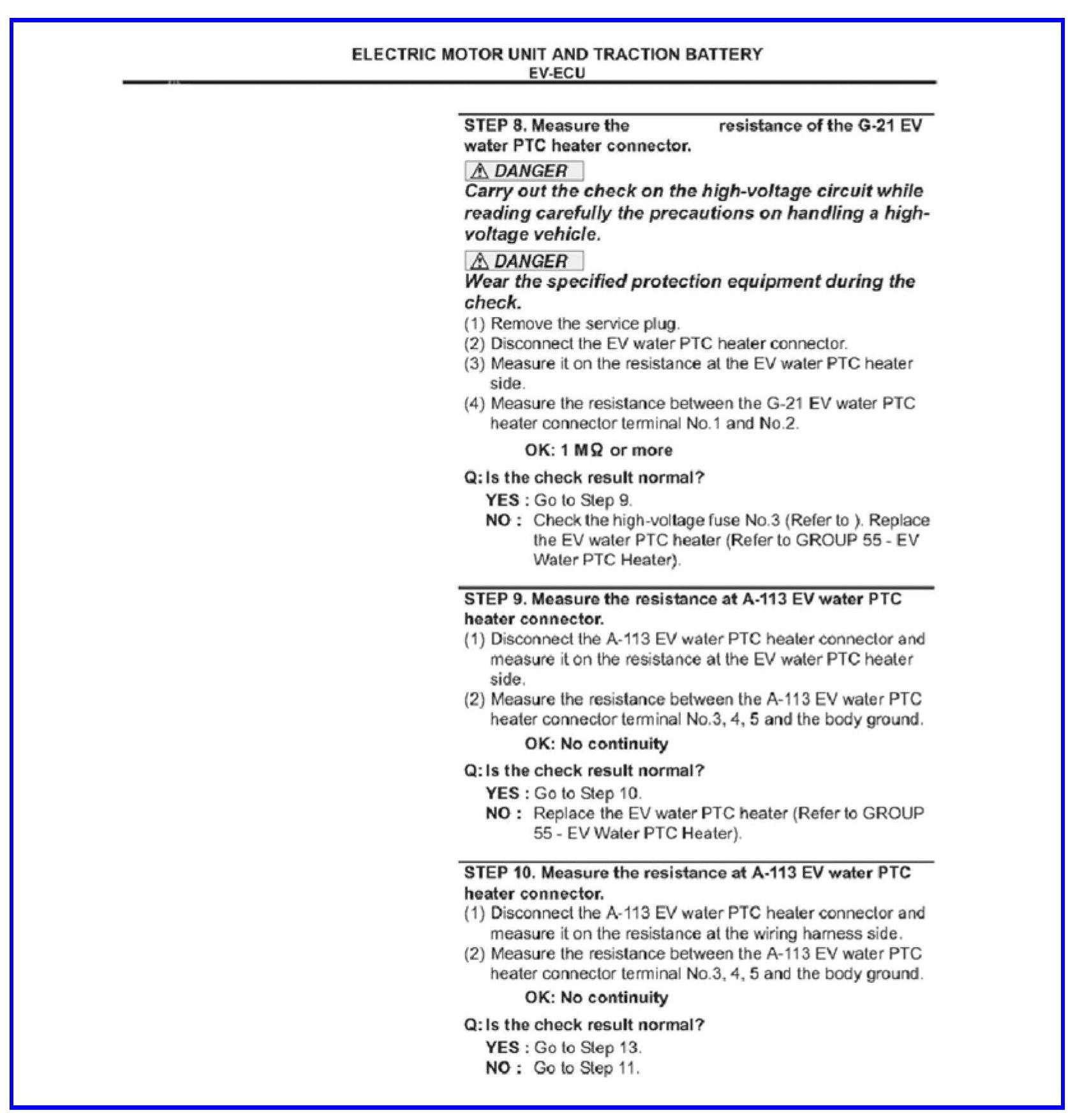

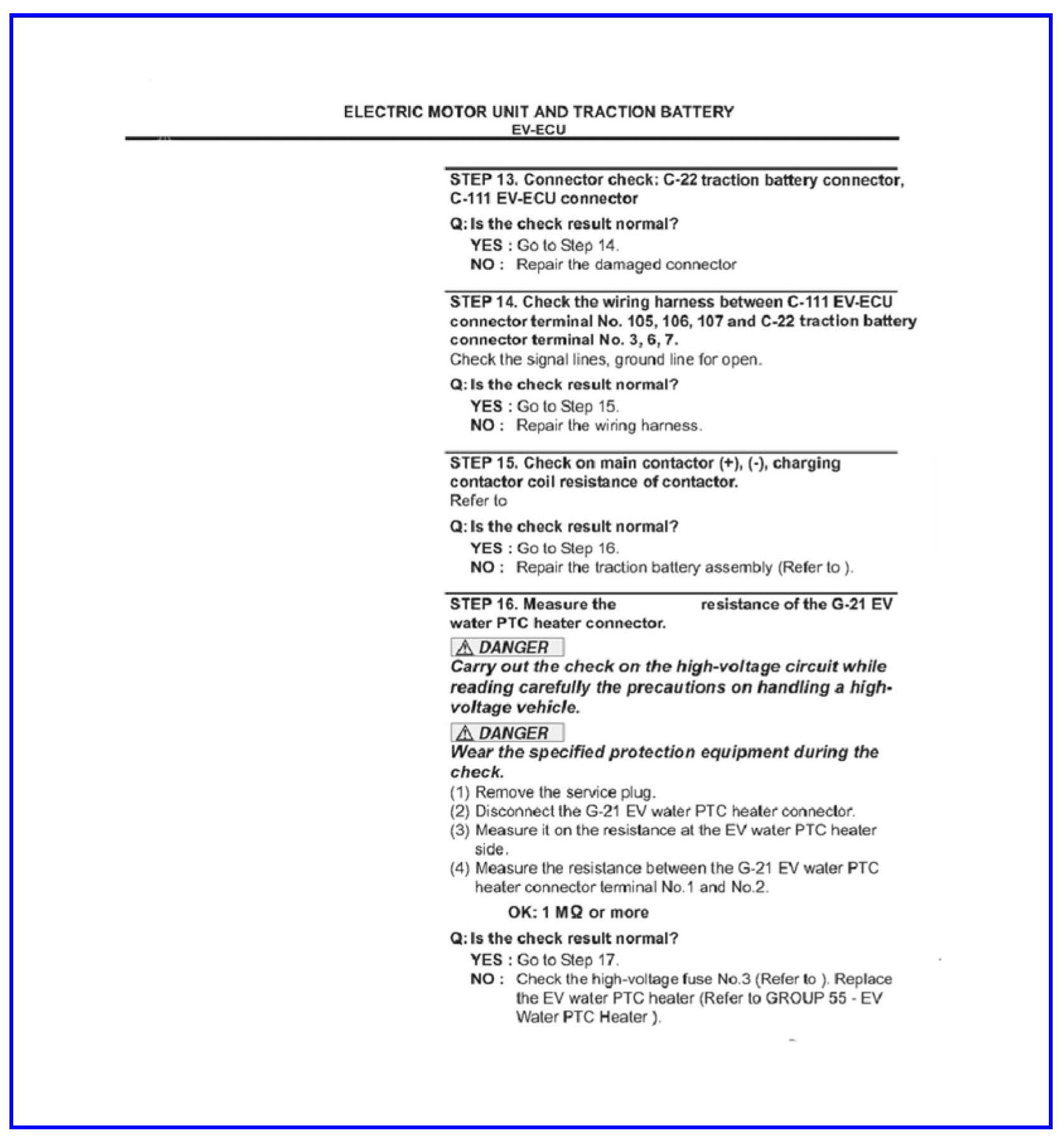

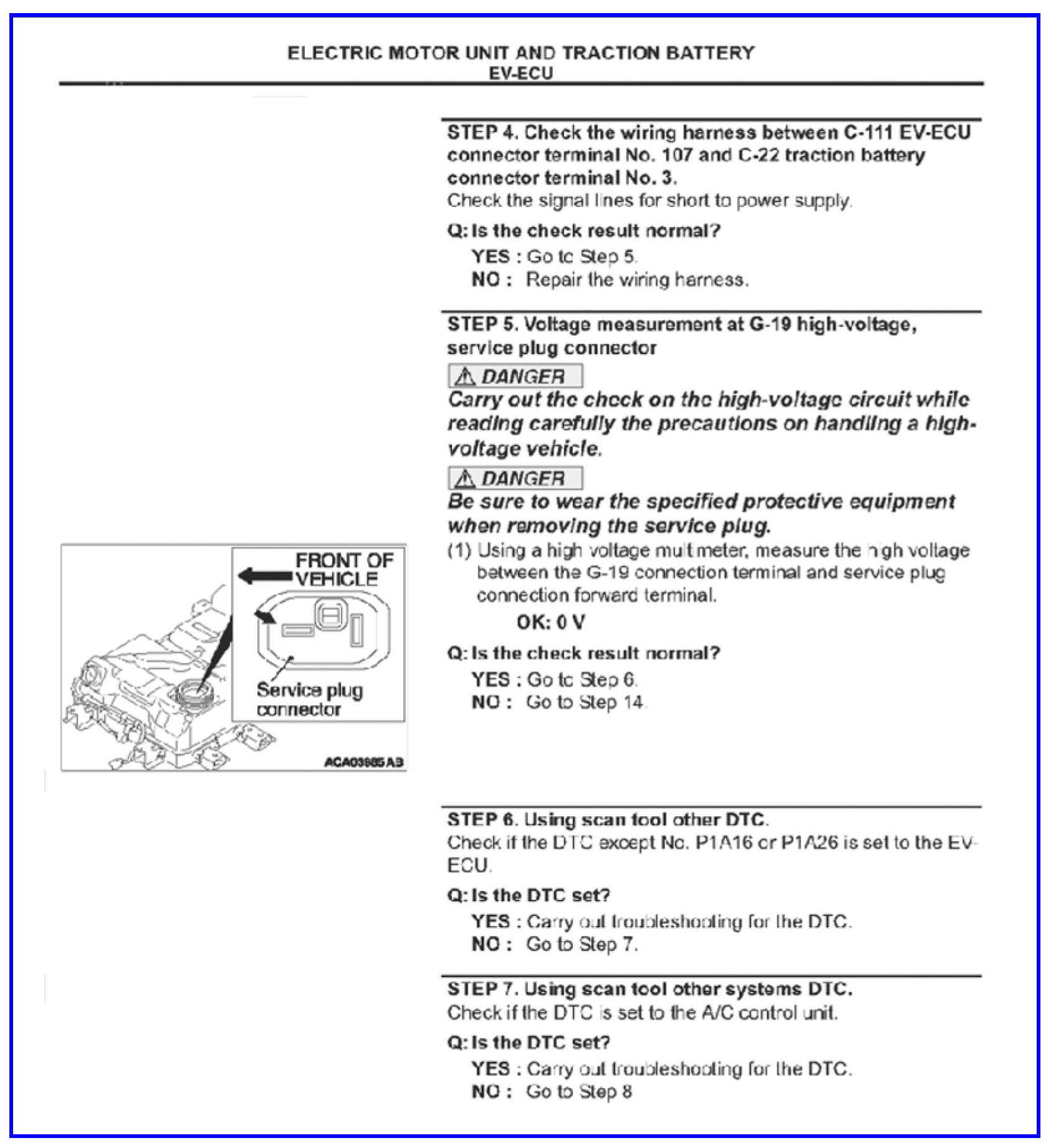

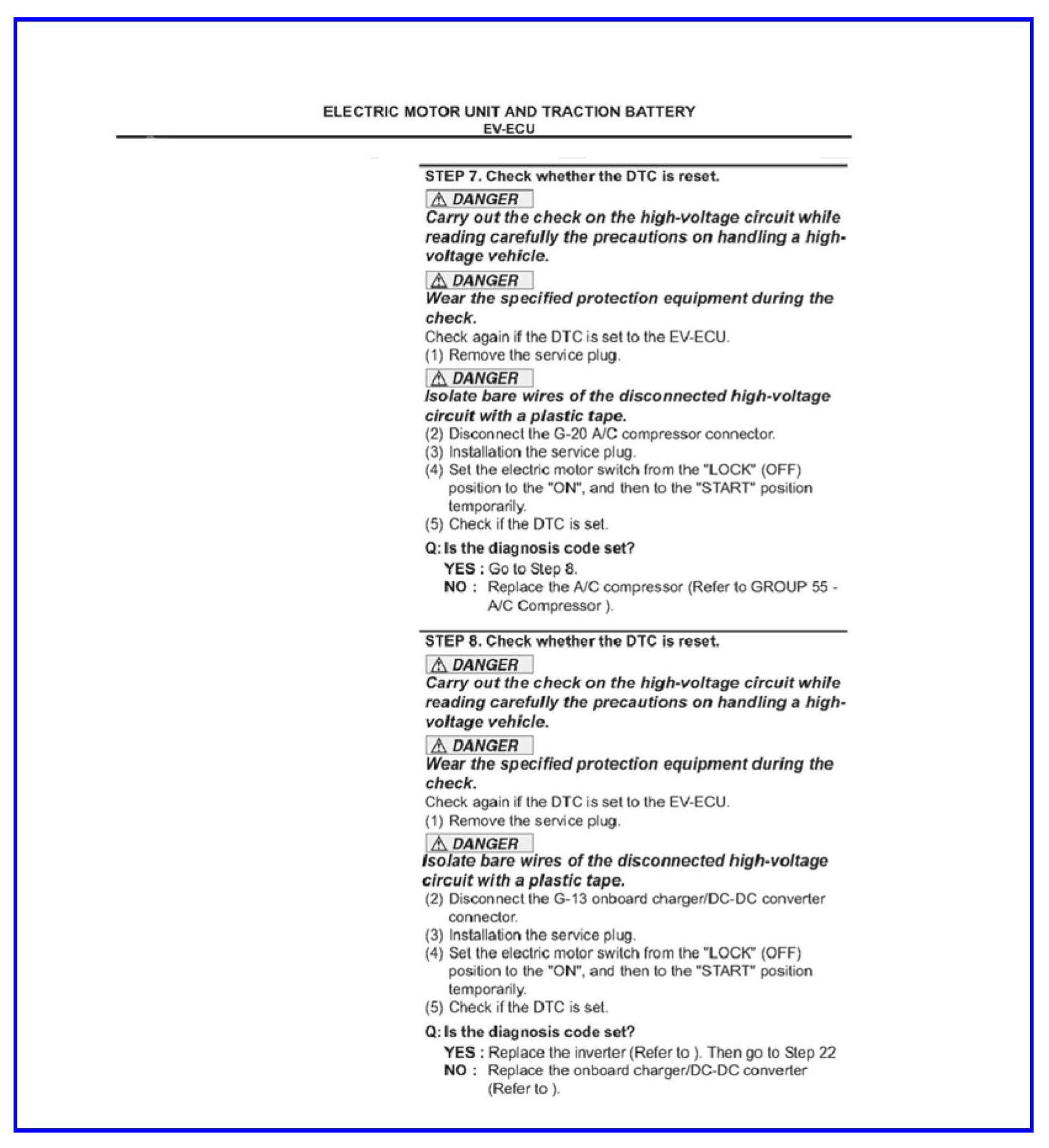

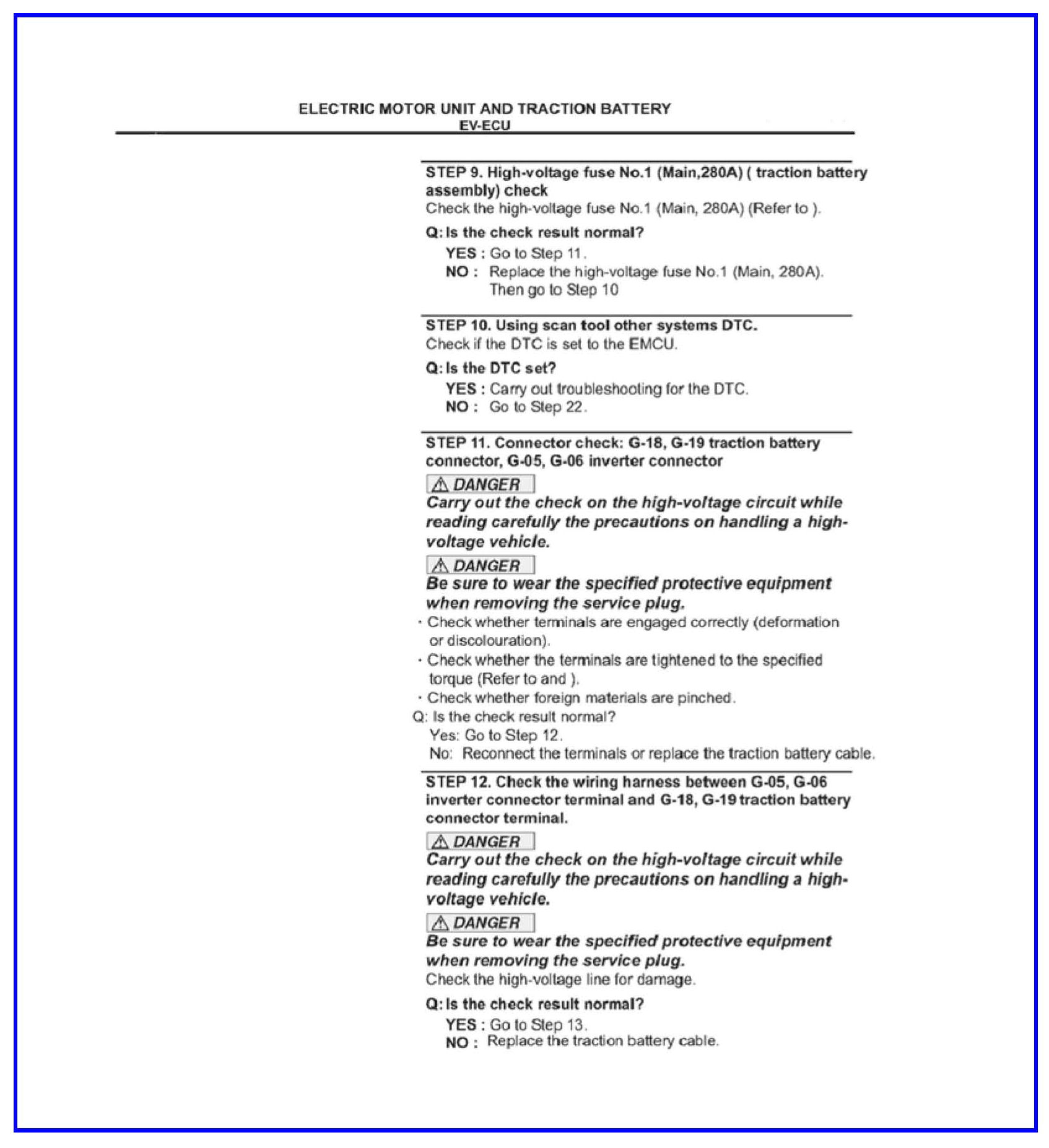

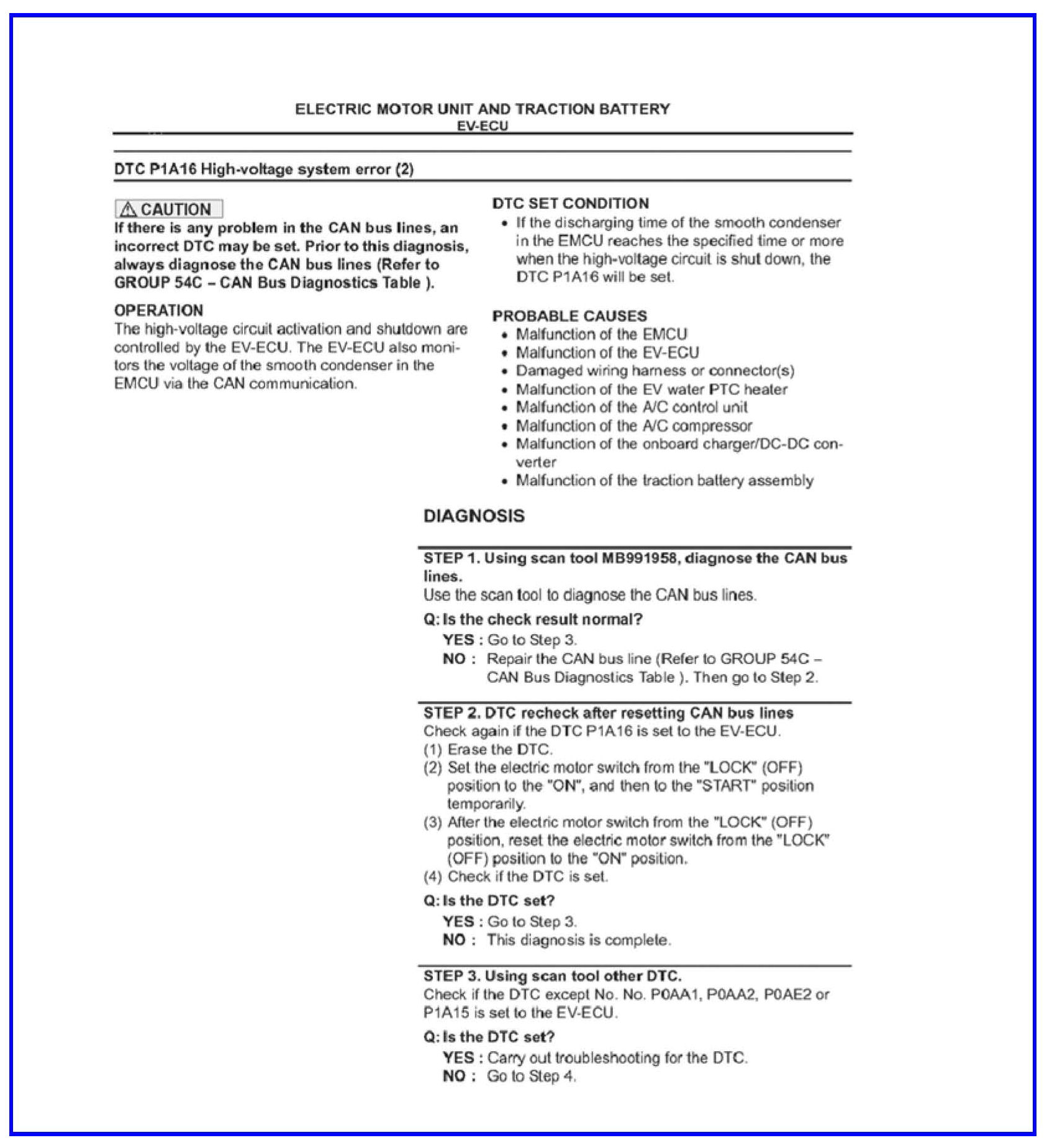

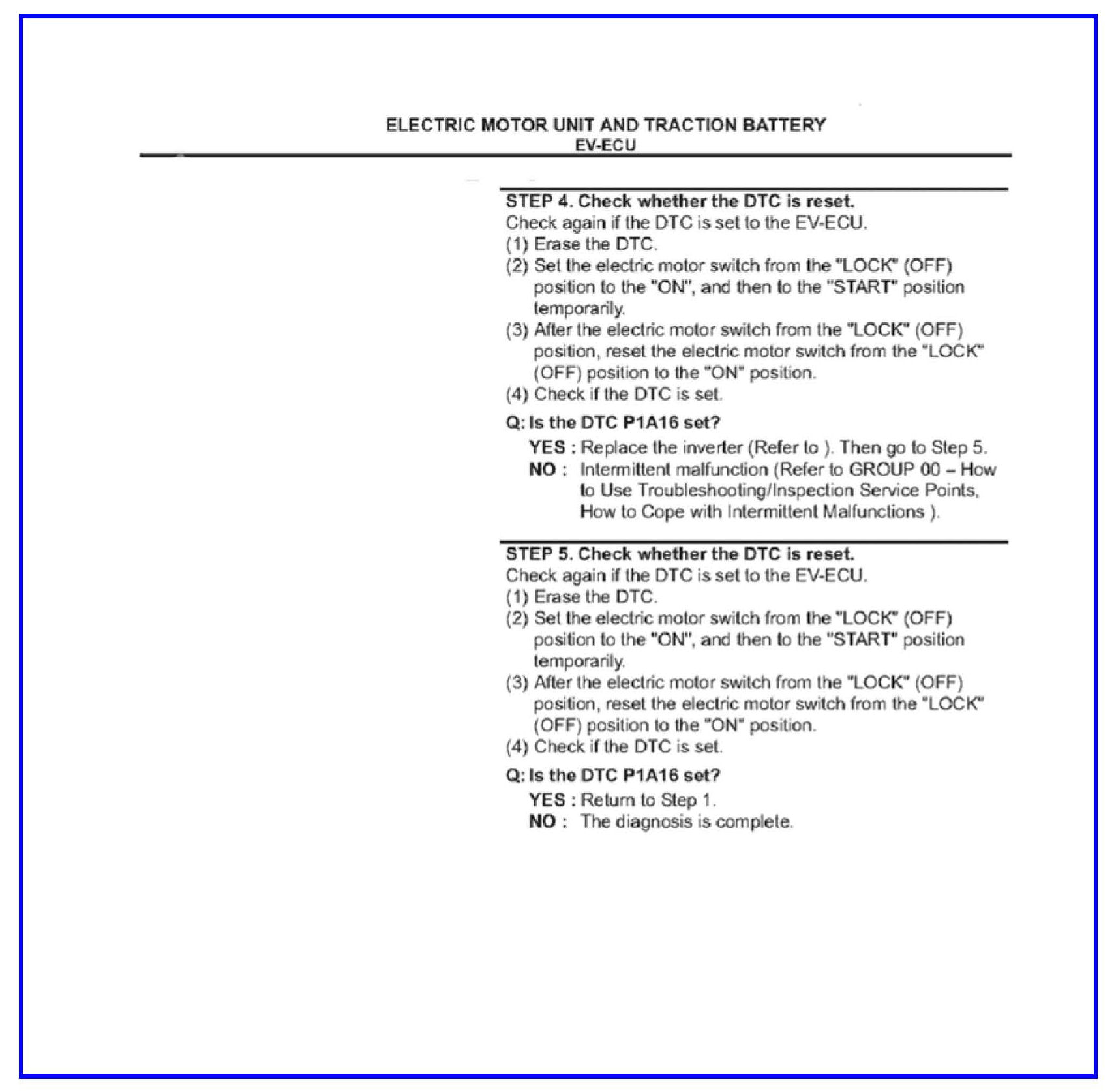

Please replace the troubleshooting procedures for DTC P1A16 with the following pages:

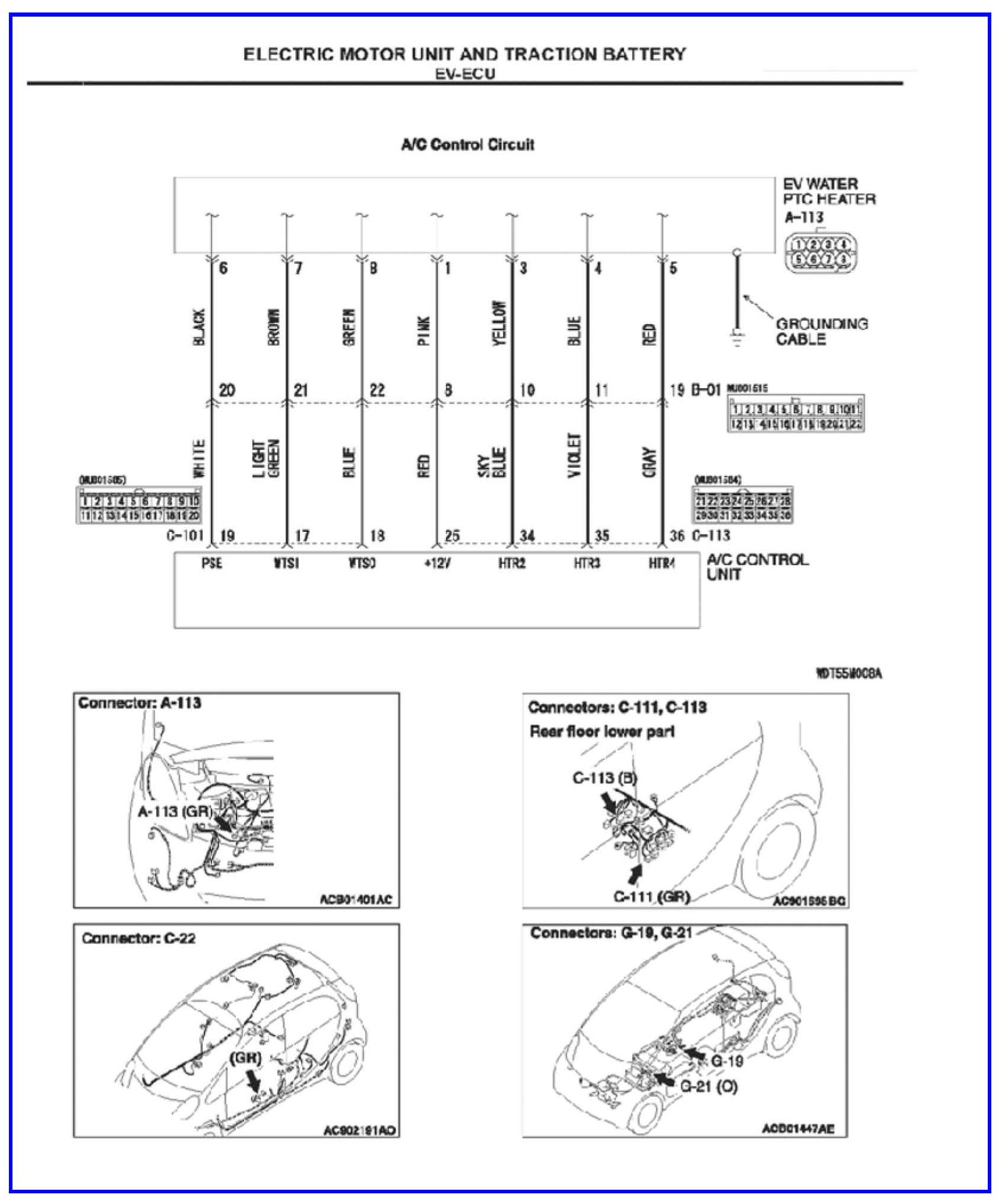

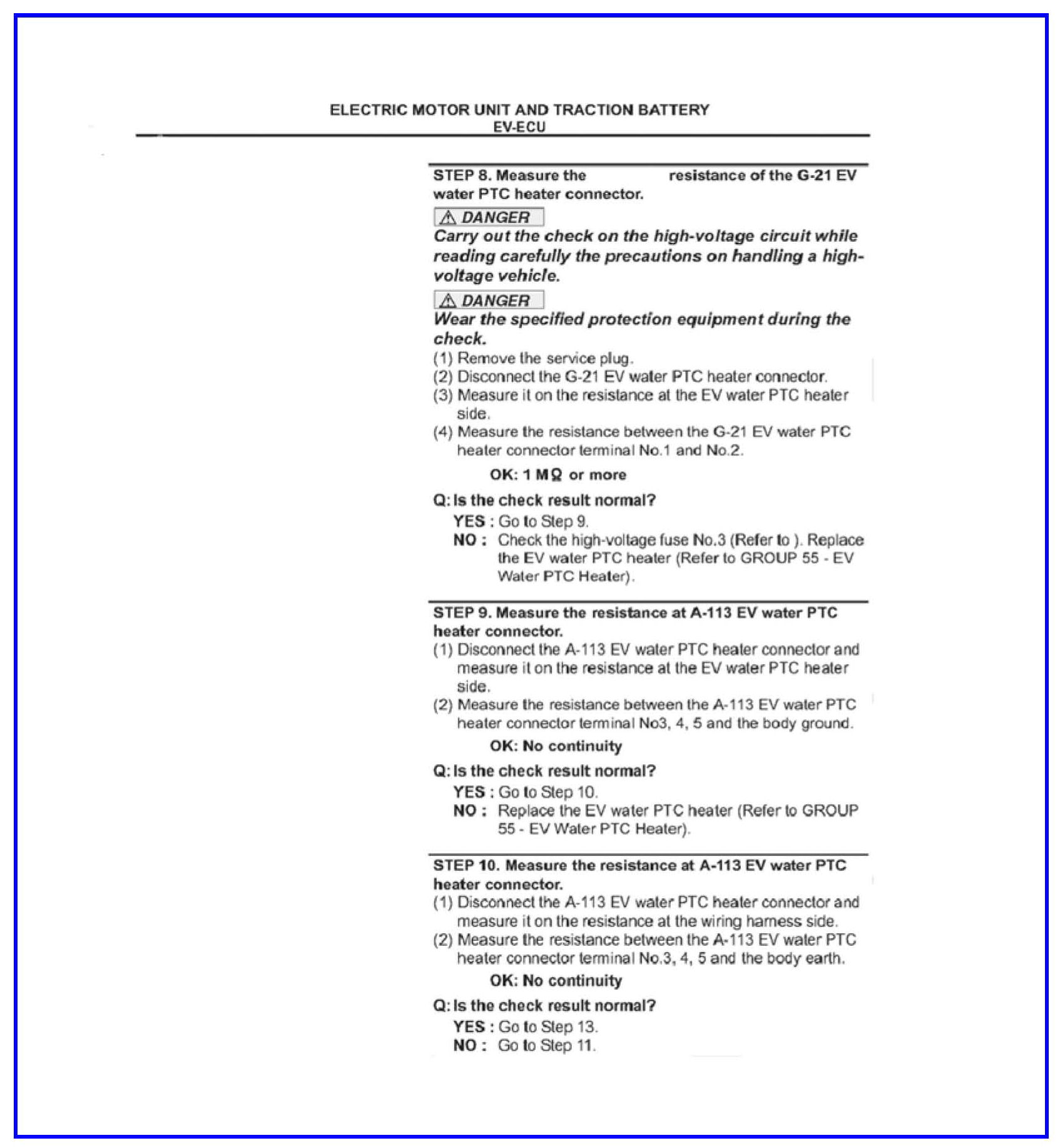

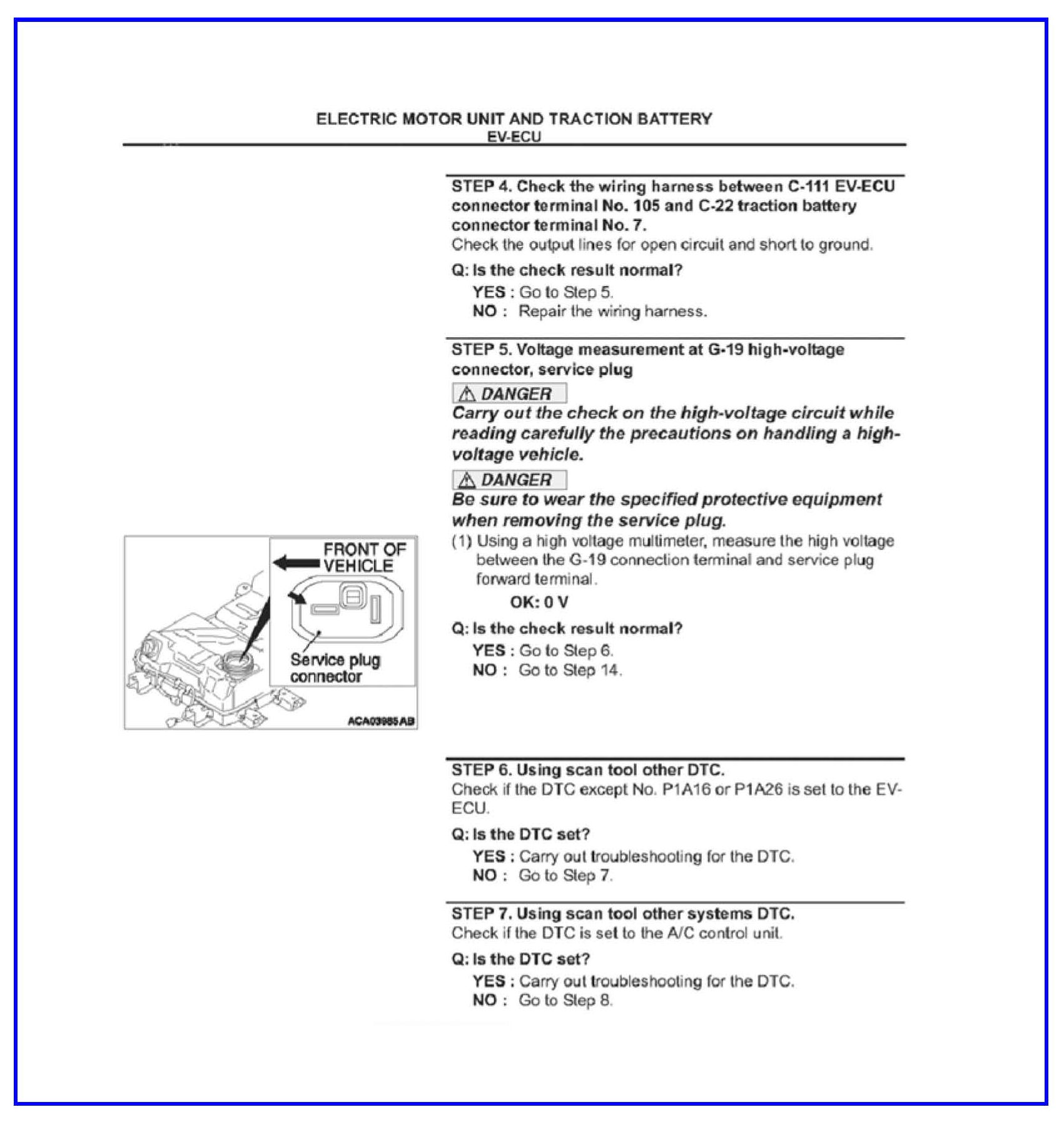

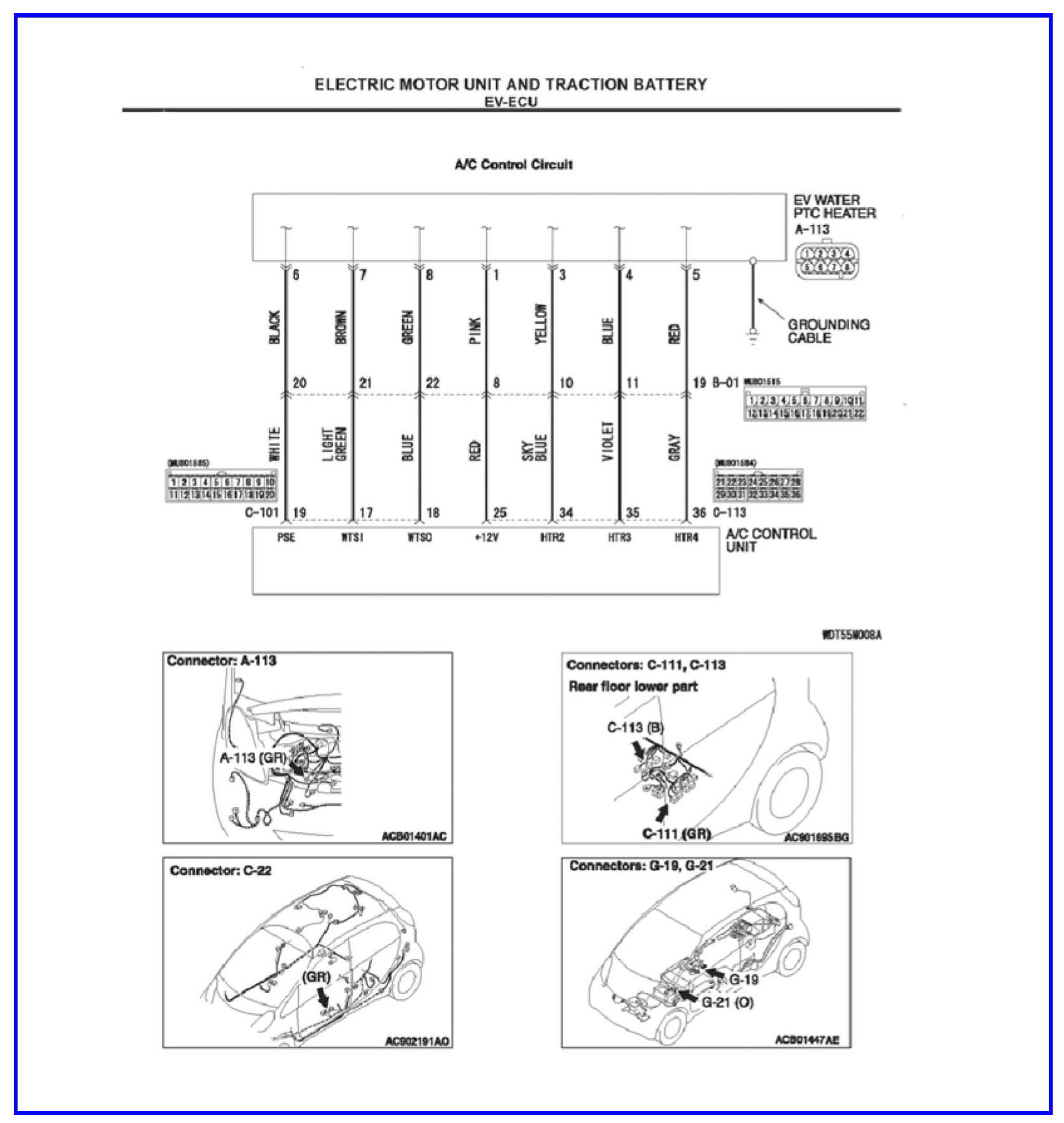

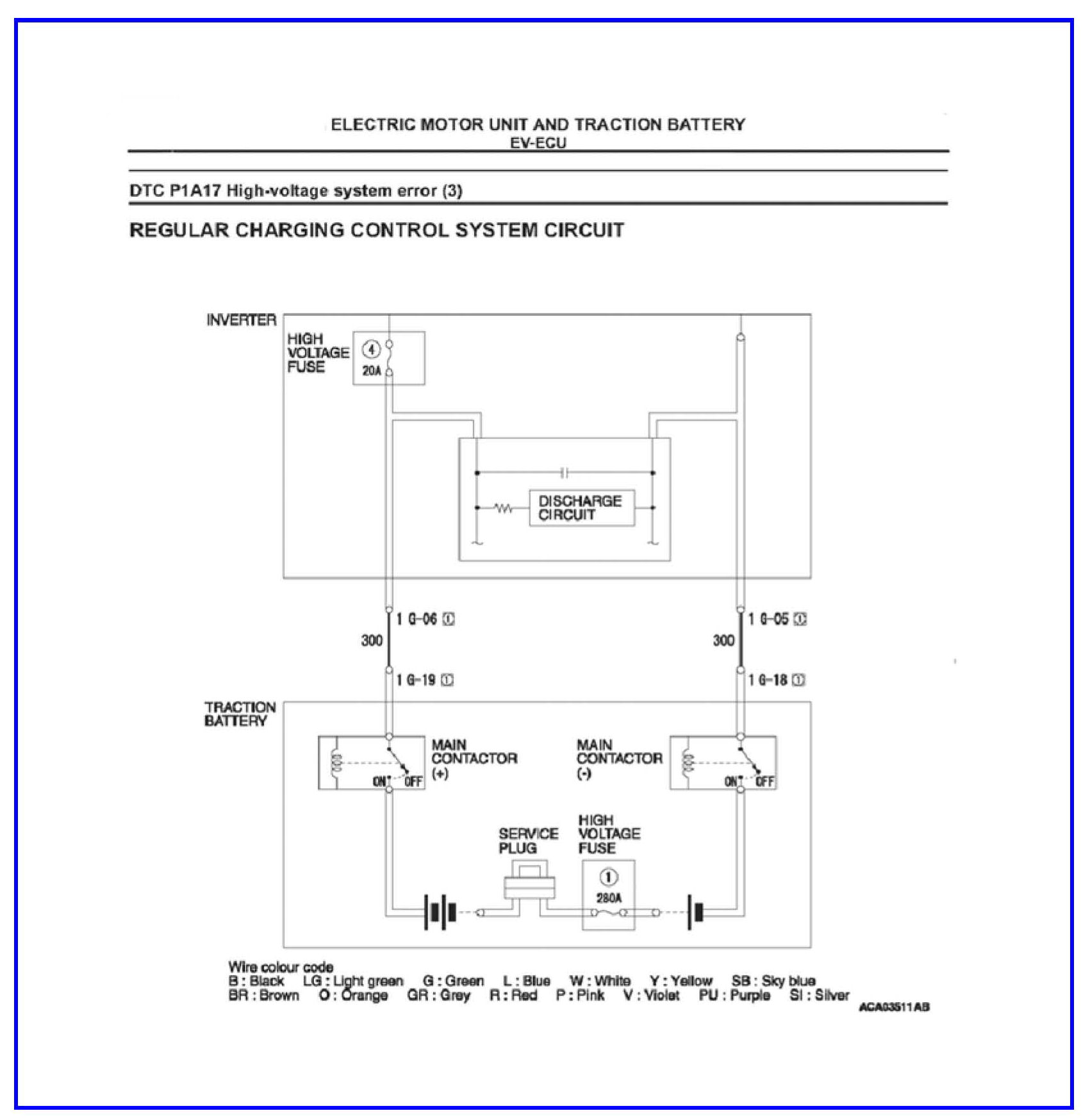

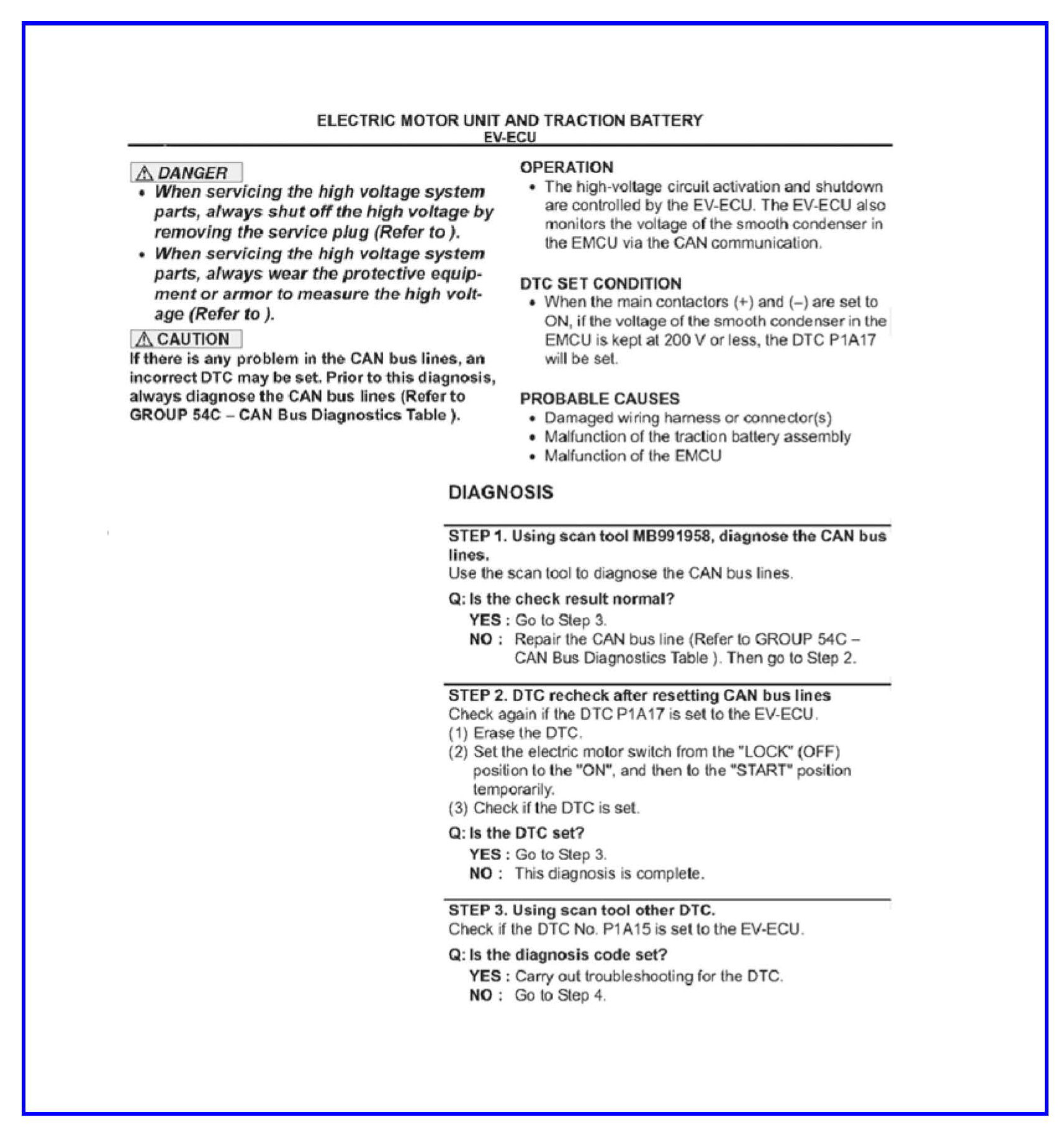

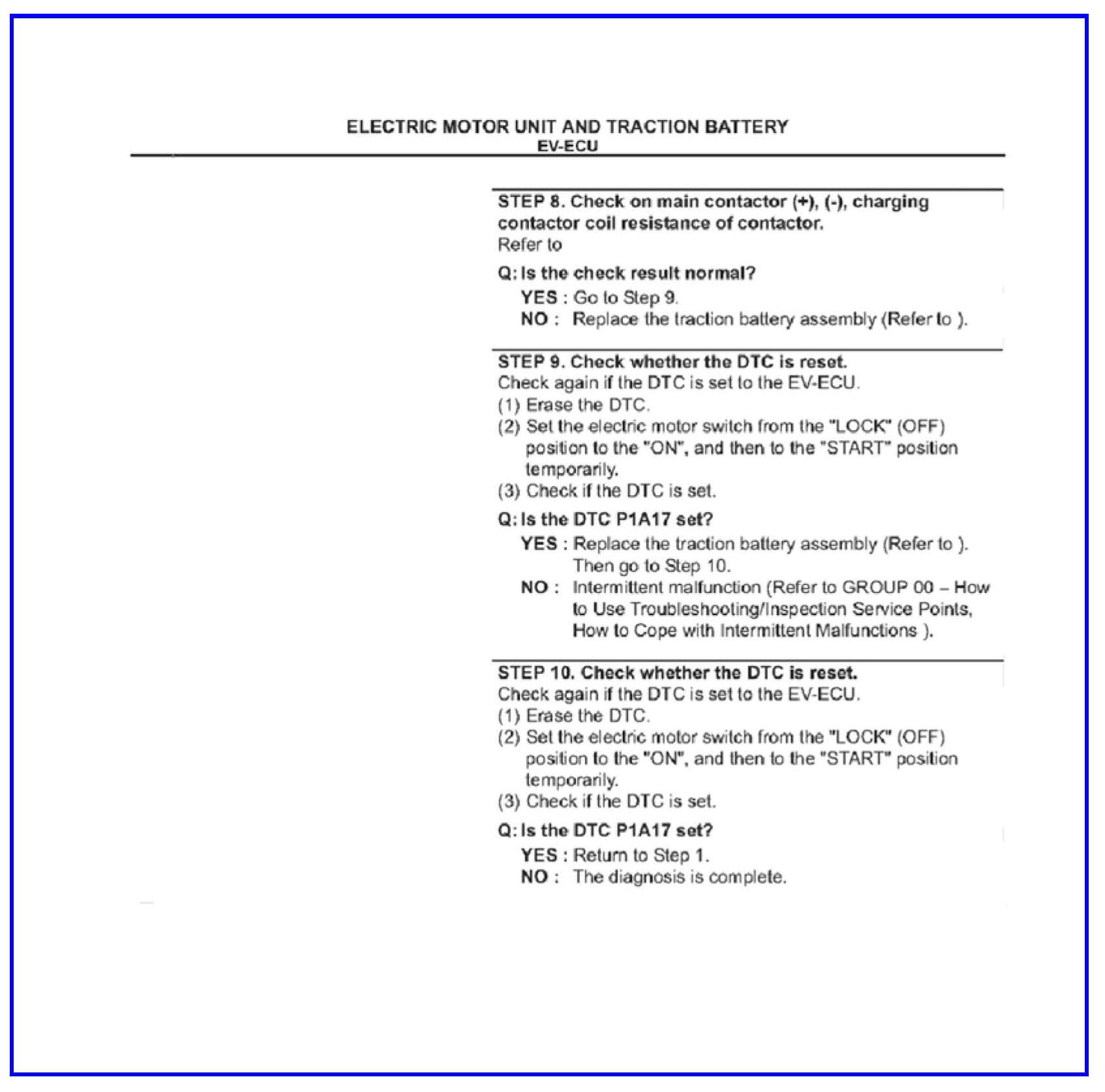

Please replace the troubleshooting procedures for DTC P1A17 with the following pages:

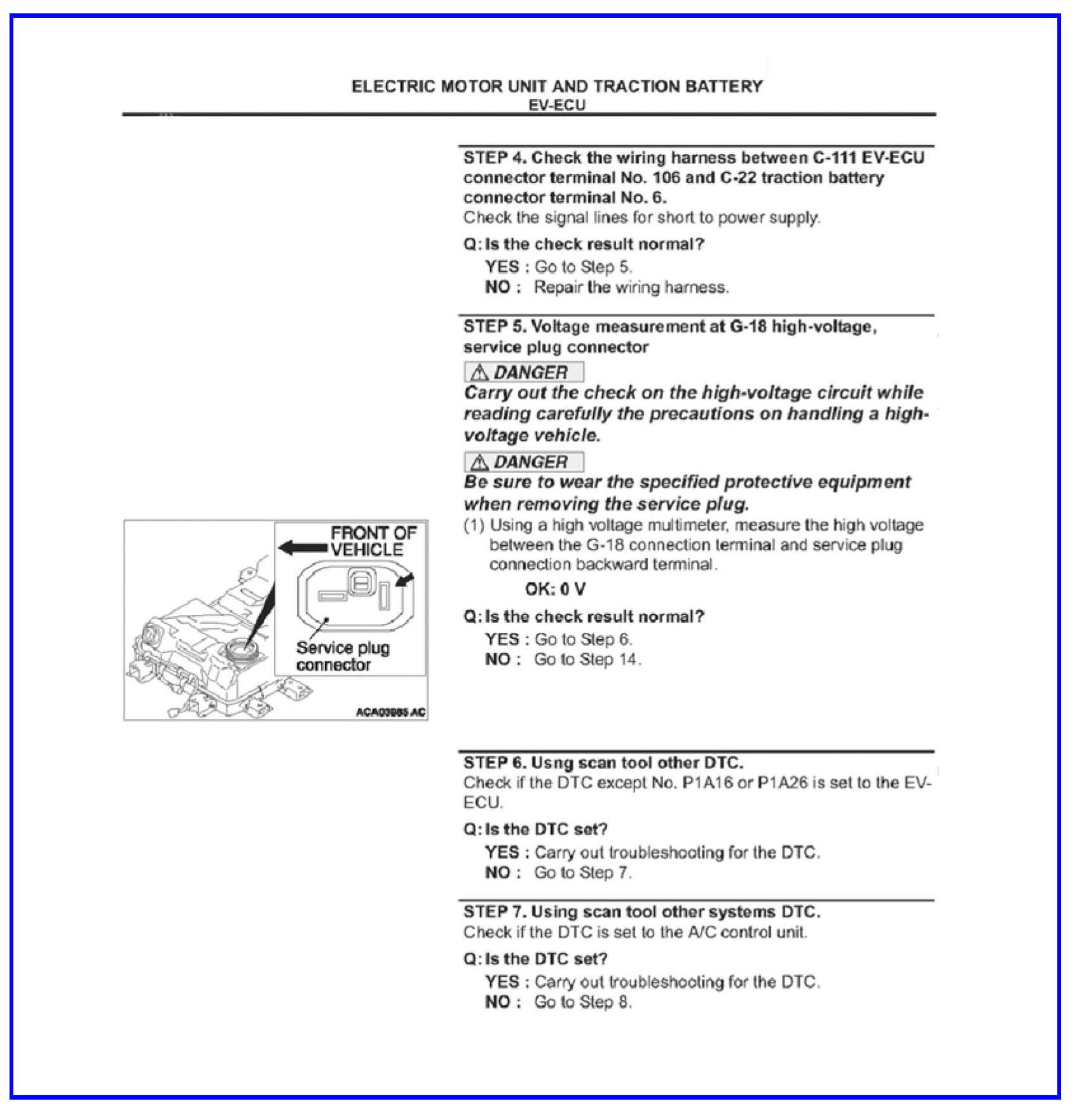

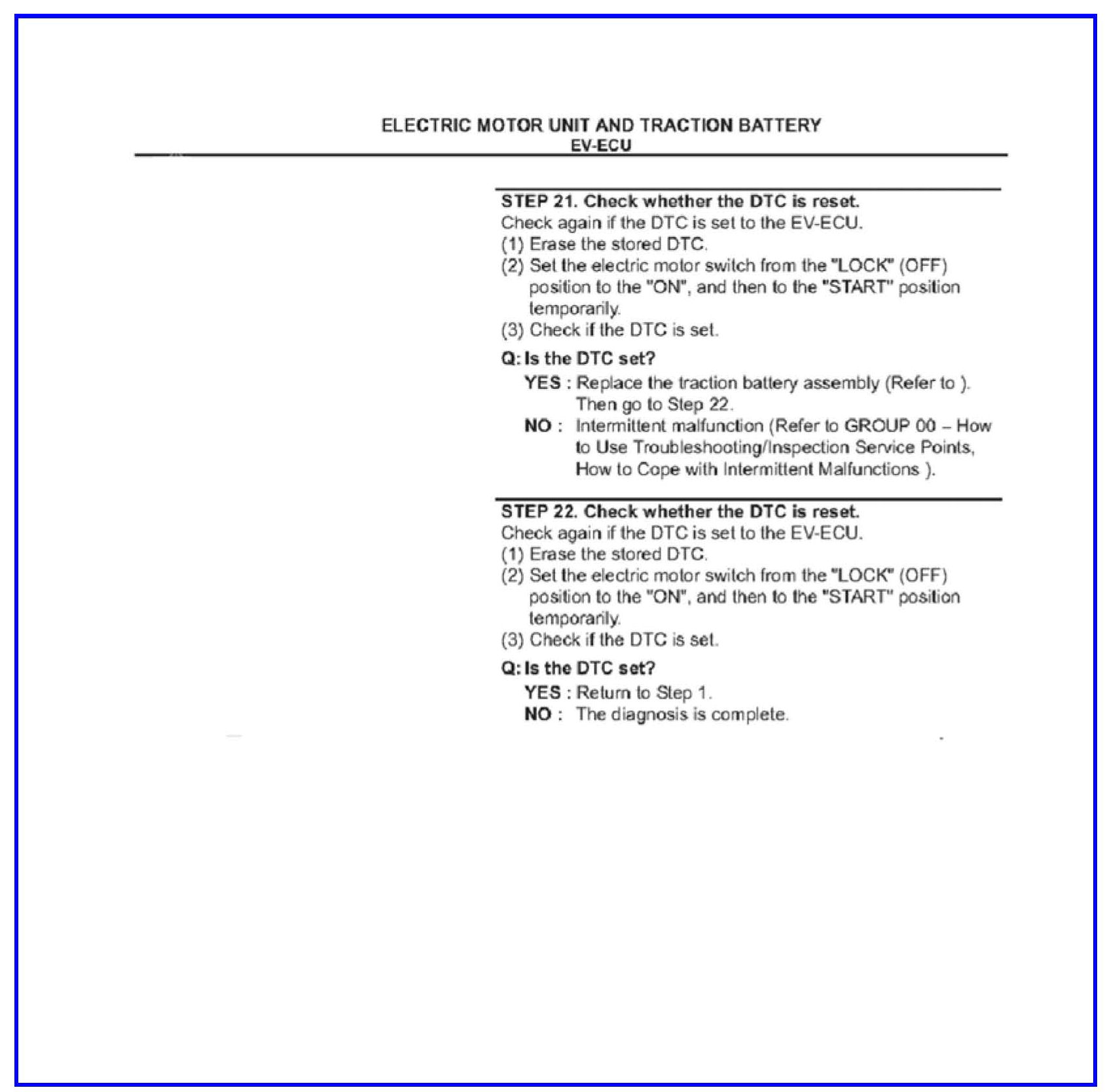

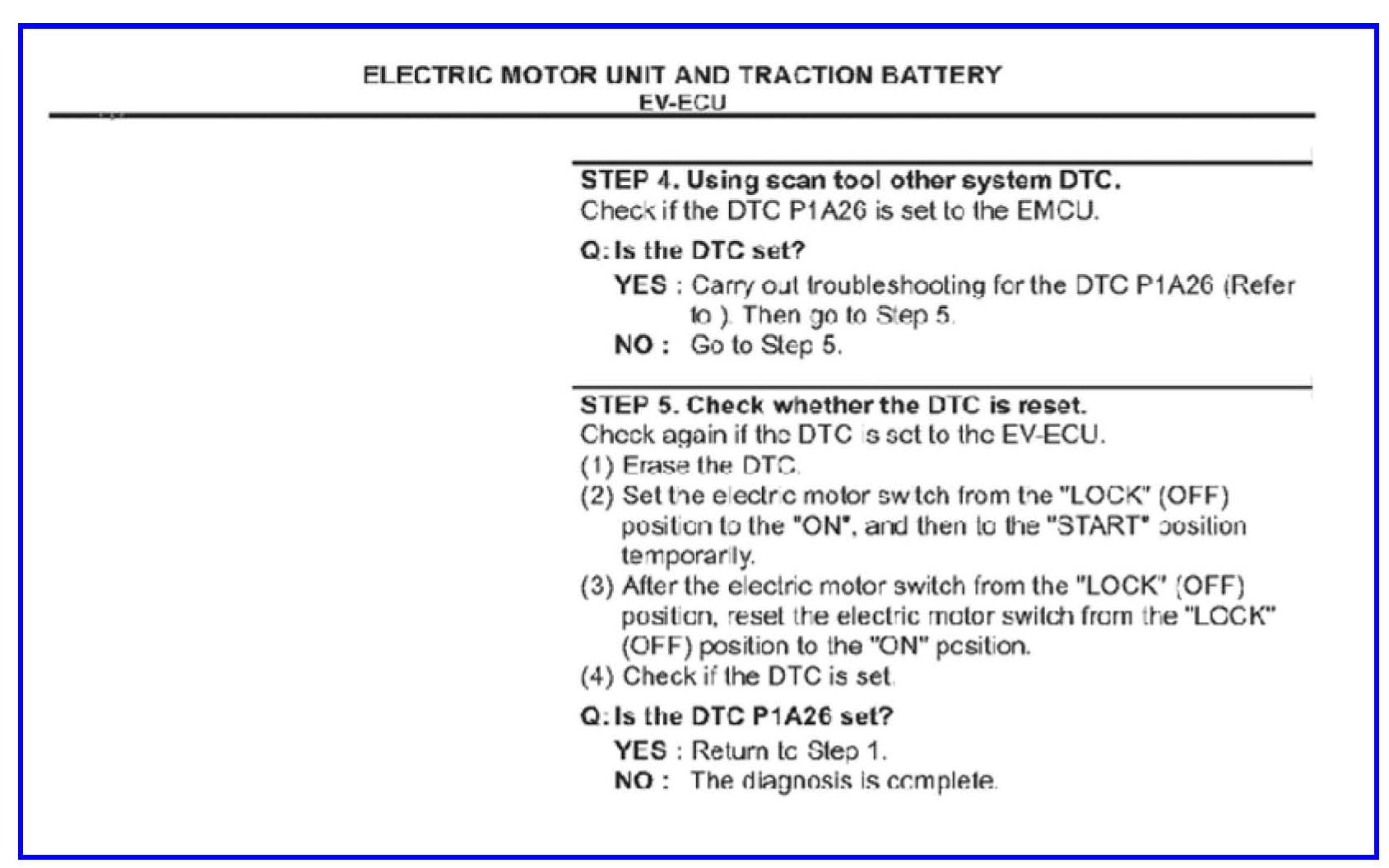

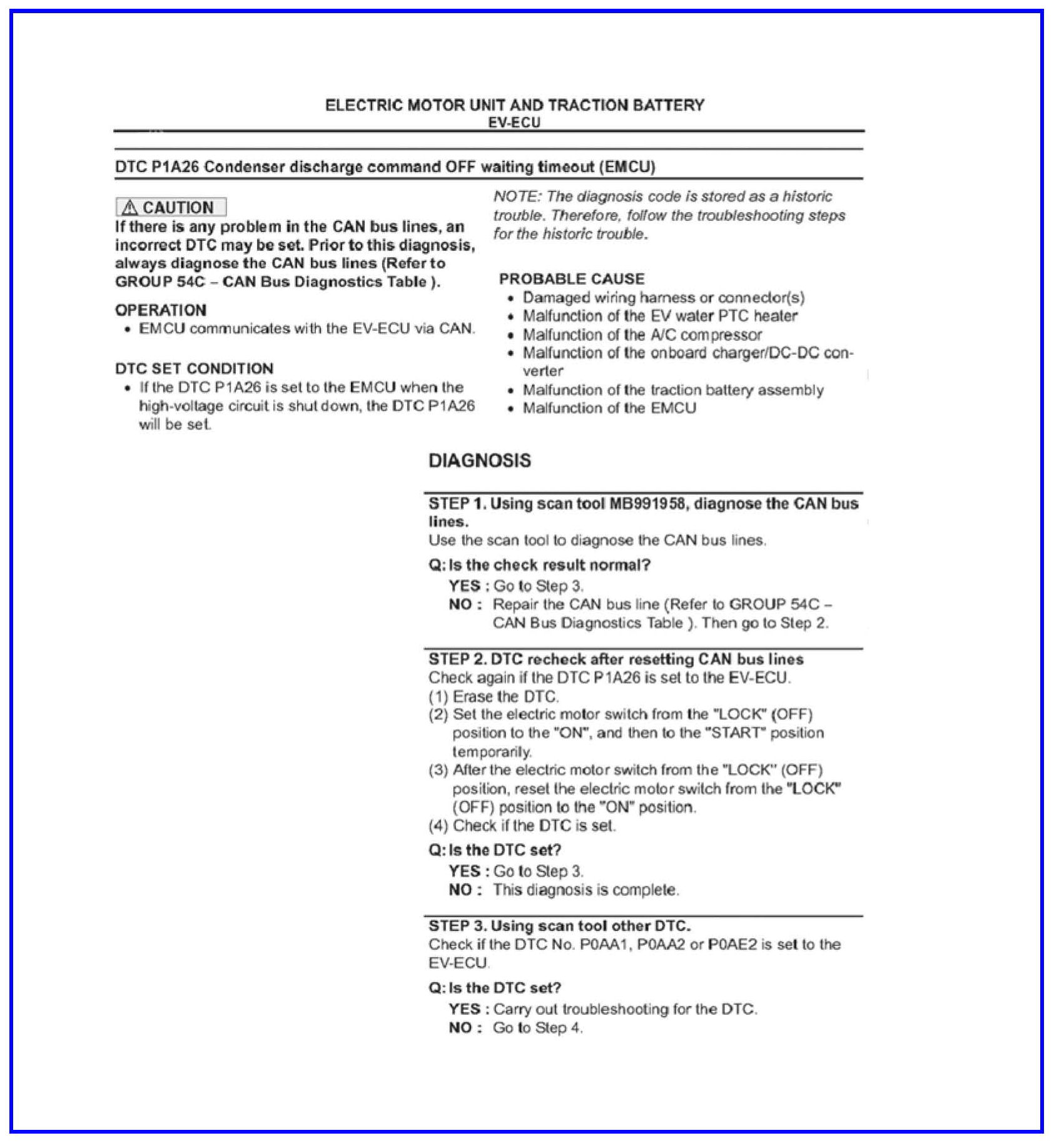

Please replace the troubleshooting procedures for DTC P1A26 with the following pages:

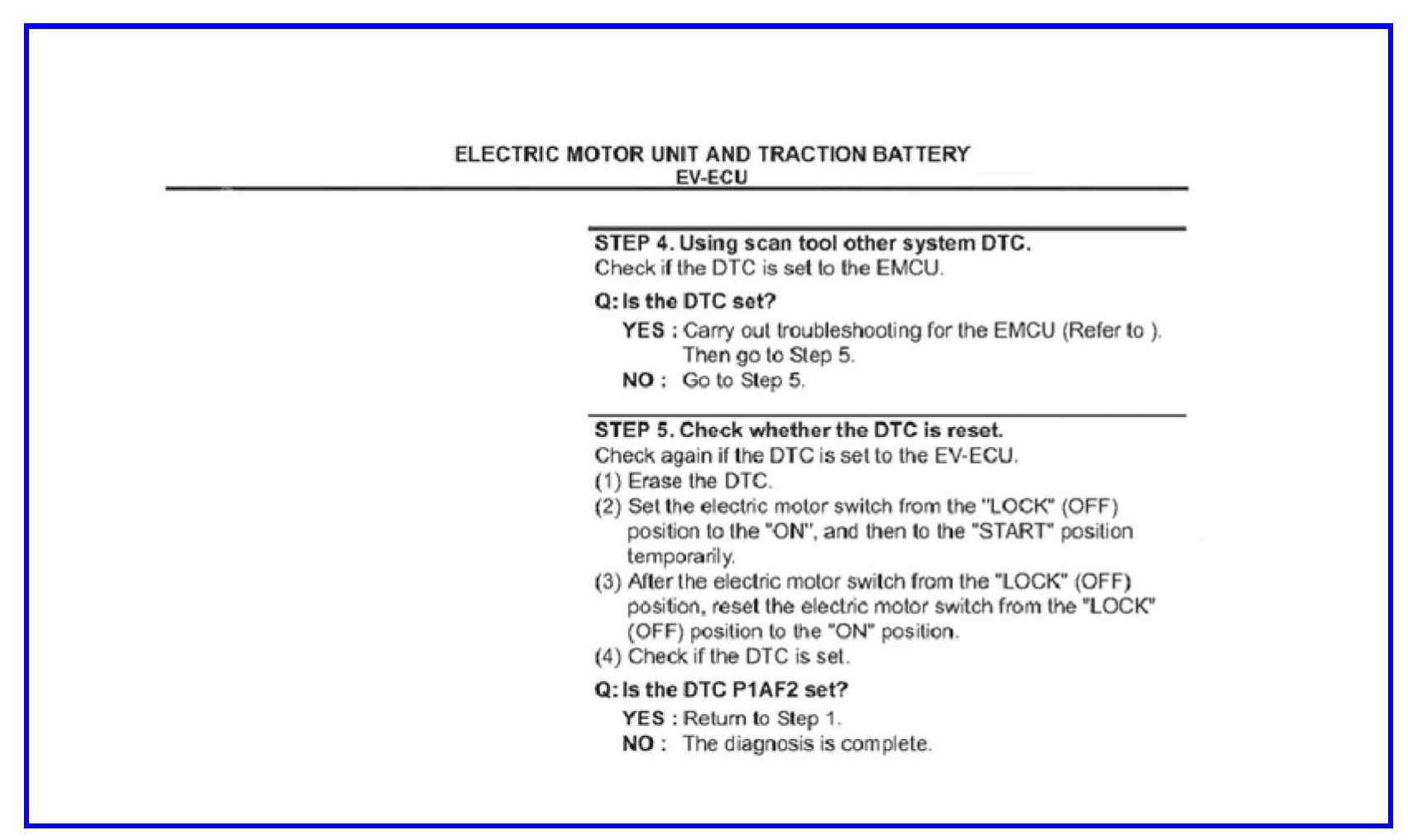

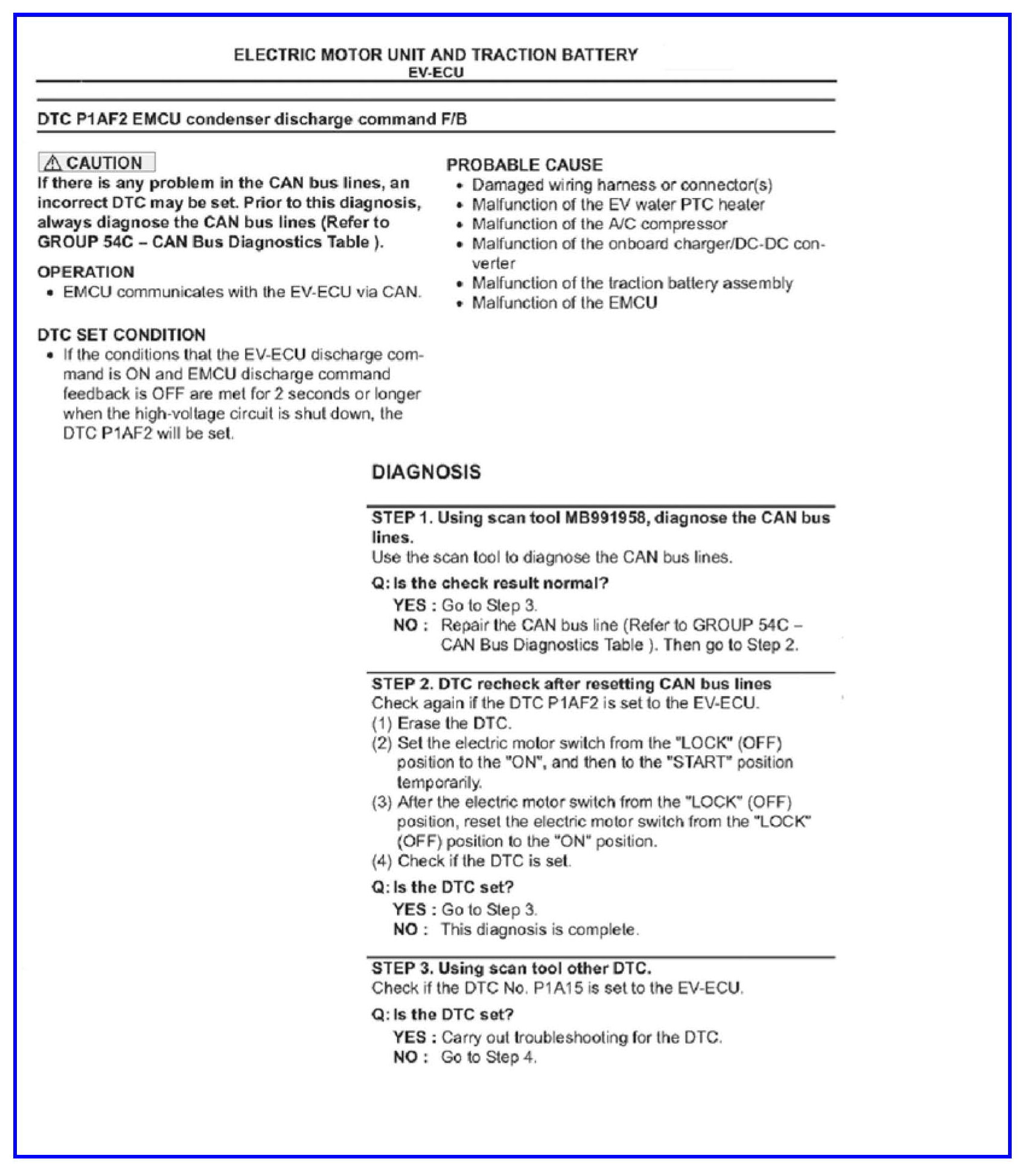

Please replace the troubleshooting procedures for DTC P1AF2 with the following pages:
