Hands Free Module: Notes

NOTE:

While the hands free module is in diagnosis mode, connection with the Bluetooth® device is shut down.
While the hands free module is in diagnosis mode, the sound input to the microphone unit is output directly through the speaker.

Select "hands free module" on "Service" screen.

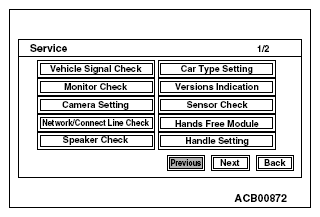

Fig 1: Display - Service Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
"Hands Free Module" screen is displayed.

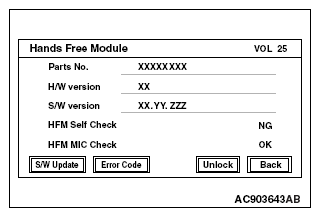

Fig 2: Display - Hands Free Module Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
