>>B<< Hub Installation

Use the rear suspension bushing base (special tool: MB990890) and oil seal installer (special tool: MD998717) to press-fit the hub to the knuckle wheel bearing.

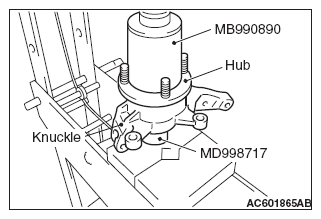

Fig 1: Pressing-Fit Hub To Knuckle Wheel Bearing Use Rear Suspension Bushing Base
G08297570Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
