Disassembly And Reassembly: Notes

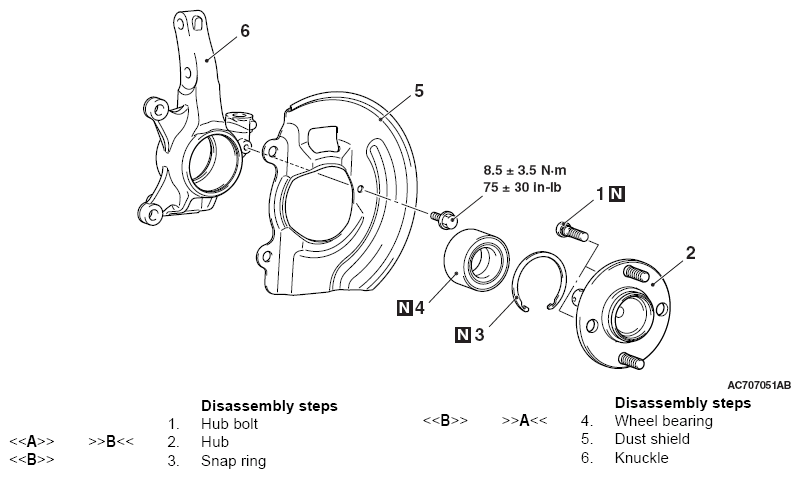

Fig 1: Disassembled View Of Front Axle Hub Assembly With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB990780: Rear Axle Shaft Bushing Installer
• MB990890: Rear Suspension Bushing Base
• MD998717: Oil Seal Installer
• MD998812: Installer Cap
• MD998813: Installer 100
• MD998830: Installer Adapter
• MD998917: Bearing Remover
