How To Operate The Scan Tool MB991958
CAUTION:
Before setting, if the combination meter does not start measuring the elapsed time, turn the electric motor switch to the ON position while pressing the meter information switch to start a measurement.
- Connect the scan tool MB991958 to the data link connector (16 pin).
- Start the M.U.T.-III system on the PC and turn the electric motor switch to the "ON" position.
- Select "Meter" on the "System Select" screen, and press the "OK" button.
- Select "Special Function" on the next screen.
- Select "Service Reminder" on the "Special function" screen.

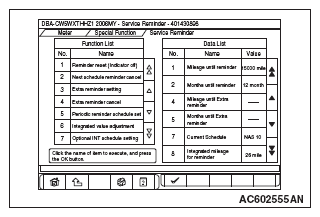

- Select the function to be executed from "Function List."
- 1 Reminder reset (Indicator off) (Refer to REMINDER RESET (INDICATOR OFF) .
- 2 Next schedule reminder cancel (Refer to NEXT SCHEDULE REMINDER CANCEL .
- 3 Extra reminder setting (Refer to EXTRA REMINDER SETTING .
- 4 Extra reminder cancel (Refer to EXTRA REMINDER CANCEL .
- 5 Periodic reminder schedule set (Refer to PERIODIC REMINDER SCHEDULE SET .
- 6 Integrated value adjustment (Refer to INTEGRATED VALUE ADJUSTMENT .
- 7 Optional INT schedule setting (Refer to OPTIONAL INT SCHEDULE SETTING .
