How To Set The Schedule
- Move the electric motor switch to the OFF position.
- Operate the selection button to display warning period on the odometer.
- Press the selection button once for at least 1.2 seconds.

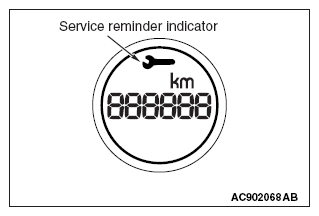

- The service reminder indicator flashes.
- Press the selection button three times for at least 1.2 seconds while the service reminder indicator is flashing (for ca. 10 seconds).
- The service reminder indicator is turned ON, and the current schedule is displayed on the odometer.
- While the current schedule is displayed (for three seconds), press the selection button consecutively three times for less than 1.2 seconds.
- The odometer is shifted to the schedule selection mode.
- When the selection button is pressed for less than 1.2 seconds, the schedule is shifted, and when the button is pressed for 1.2 seconds or more, the displayed schedule is set.NOTE: For schedule, "JPN", "GCC", "EU" and "AUS" can also be selected. However, the setting shall be for "NAS" only.
- The schedule set in Step 9 is displayed for 3 seconds, and the warning period to the next time is displayed.SCHEDULE TABLE
Schedule Warning type Warning criteria NAS 10 (initial setting) Elapsed time (month) Every 12 elapsed months Driving distance (miles) Every 15000 miles of driving distance Driving distance (km) Every 24, 000 km of driving distance NAS 11 Elapsed time (month) Every 6 elapsed months Driving distance (miles) Every 7.500 miles of driving distance Driving distance (km) Every 12000 km of driving distance Optional INT The optional schedule can be set. (Only M.U.T.-III can be set.) OFF Display Without function. "OFF" is displayed on the odometer/tripmeter. Function OFF Without function (Only M.U.T.-III can be set.)
