DTC P1A43: Detection Circuit Of Traction/Main Drive Lithium-Ion Battery Current Sensor Abnormal: Notes

NOTE: Traction battery may also be referred to as Main Drive Lithium-Ion battery.

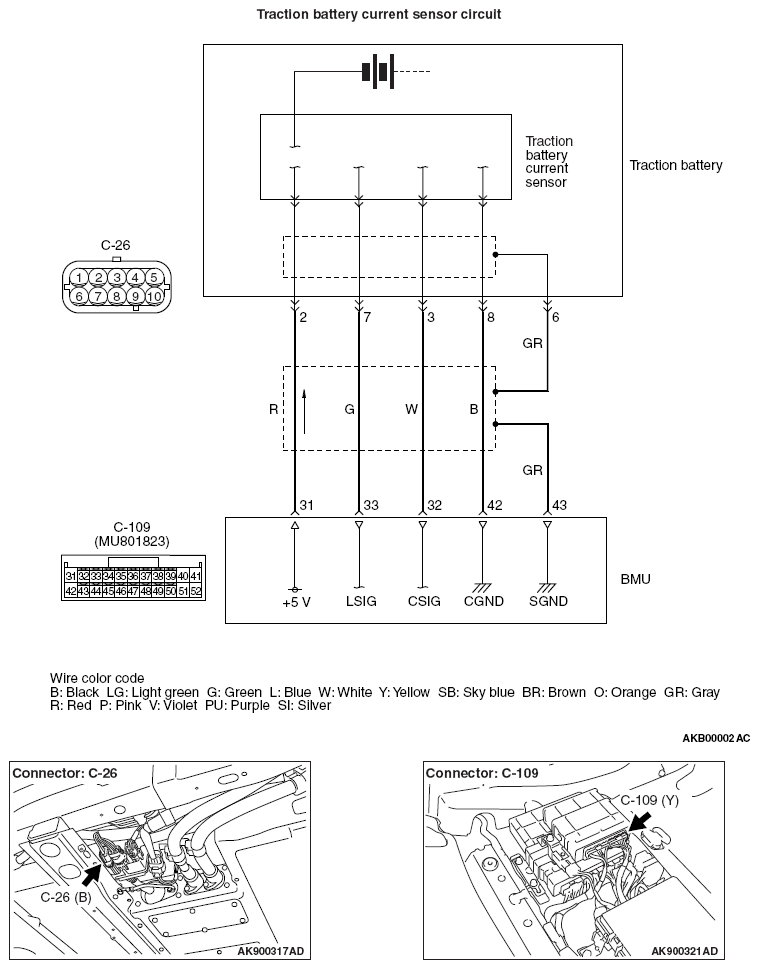

Fig 1: Traction/Main Drive Lithium-Ion Battery Current Sensor Circuit Diagram
G08300823Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
