Quick Charging Control System Circuit

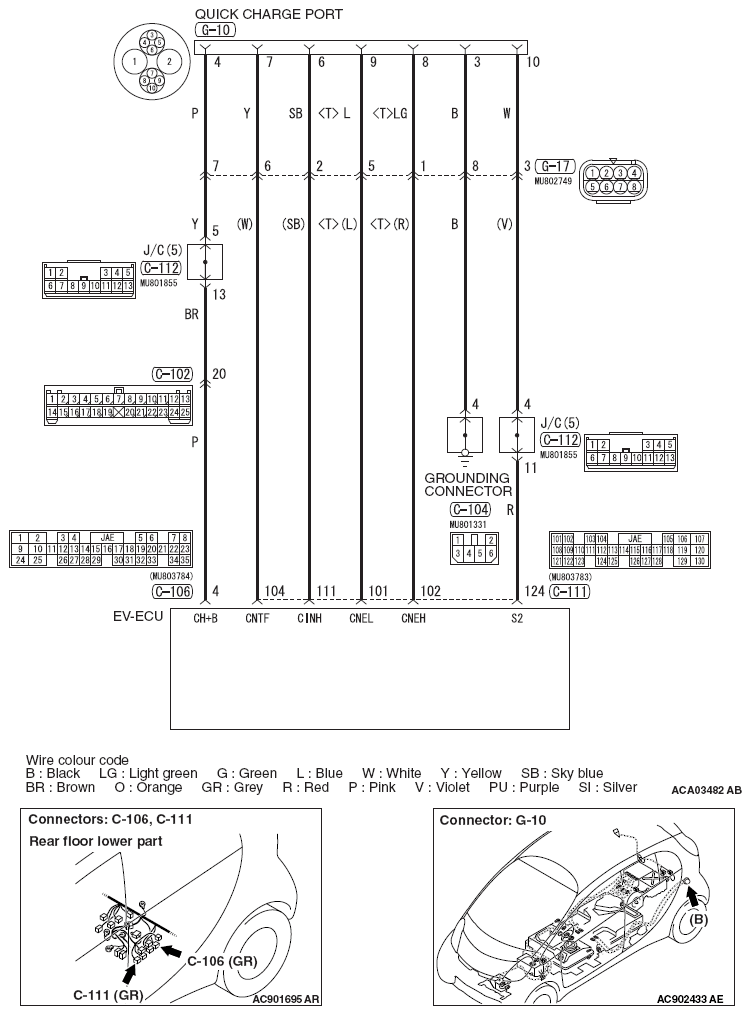

Fig 1: Quick Charging Control System Circuit Diagram
G08300746Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
