>> B << Clock Spring Installation

Confirm that the steering wheel is at the straight-ahead position.
CAUTION: If the center of the clock spring is not correctly aligned, the steering wheel may not be turned fully or the cable inside the clock spring may be broken, causing the SRS air bag to be inoperative or operated incorrectly.

Align the mating marks of the clock spring.

< Alignment of mating marks >
1. Turn the clock spring clockwise fully.
2. Turn the clock spring counterclockwise approximately three and 1/2 turns to align the mating marks.

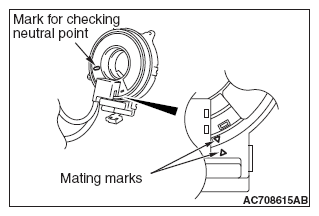

  Fig 1: Identifying Mark For Checking Neutral Point And Clock Spring Mating Marks
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Check that the white or yellow roller can be seen from the window for checking the neutral point when the mating marks are aligned.
NOTE: If the white or yellow roller cannot be seen or black roller can be seen, the neutral point is not aligned correctly.
Install the clock spring to the column switch.
