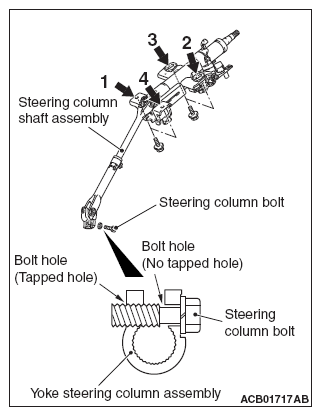

>> A << Steering Column Shaft Assembly/Steering Column Bolt (Steering Column Shaft Assembly And Steering Gear And Linkage Connection) Installation
- Temporarily tighten the mounting bolts in the order of 4, 1, and 3. Then, tighten the bolts to the specified torque in the order of 2, 4, 1, and 3.
Tightening torque: 12 ± 2 N.m (106 ± 17 in-lb)
- Insert the steering column bolt from the no-thread cutting bolt hole and tighten it to the specified torque.
Tightening torque: 20 ± 5 N.m (15 ± 4 ft-lb)
