>> B << Steering Column Bolt (Steering Column Shaft Assembly And Steering Gear & Linkage Connection) Installation

Insert the steering column bolt from the no-thread cutting bolt hole and tighten it to the specified torque.

Tightening torque: 20 ± 5 N.m (15± 4 ft-lb)

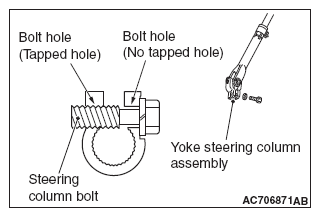

Fig 1: Identifying Yoke Steering Column Assembly, Bolt And Bolt Hole
G08301168Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
