>> A << Key Interlock Cable And Shift Lock Cable Installation

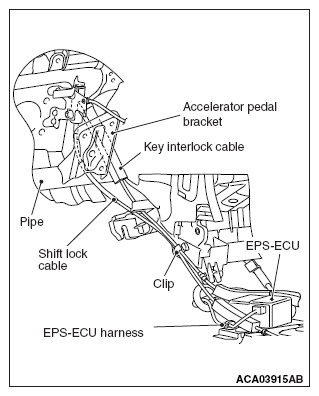

Run the shift lock cable through the clearances between the accelerator pedal bracket and the pipe and between the EPS-ECU and the EPS-ECU wiring harness. Run the key interlock cable through the vehicle front side at the accelerator pedal bracket. By doing so, assemble the cables as shown in the illustration.
