>> C << Key Interlock Cable Connection (Selector Lever Side)
- Shift the selector lever to the P position, and turn the electric motor switch to the LOCK (OFF) position.

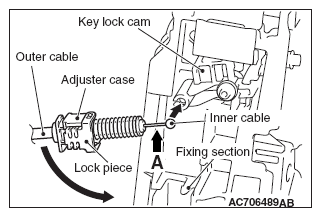

- While paying attention not to twist the inner cable, align the cable with the cable installation hole of key lock cam, and then fully insert the cable into the key lock cam hole by pressing the area A shown in the illustration.
- While paying attention not to bend the inner cable, position the outer cable to near the fixing section of selector lever bracket.CAUTION: When installing the key interlock cable to the selector lever bracket, be sure to insert by pressing the adjuster case. Do not push the lock piece.
- With the lock piece lifted (unlocked state), slide the adjuster case upward while paying attention not to bend the inner cable tip, then install it to the fixing section of selector lever bracket.

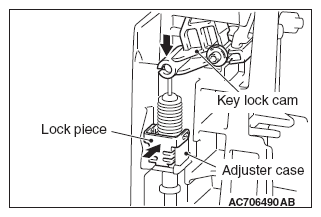

- While holding the key lock cam downward, securely lock the lock piece by pressing in the lock piece. Then, check that the adjuster case is flush with the lock piece.
