Key Interlock And Shift Lock Mechanism Removal And Installation: Notes

CAUTION:

When performing the shift lock cable replacement, avoid adjusting the brake pedal height as much as possible. If the height adjustment is needed, the adjustment amount must be within ± 8 mm (± 0.3 inch), and be sure to assemble the shift lock cable again after the adjustment.
Do not subject the SRS-ECU to any shocks when removing the shift lock cable or key interlock cable.

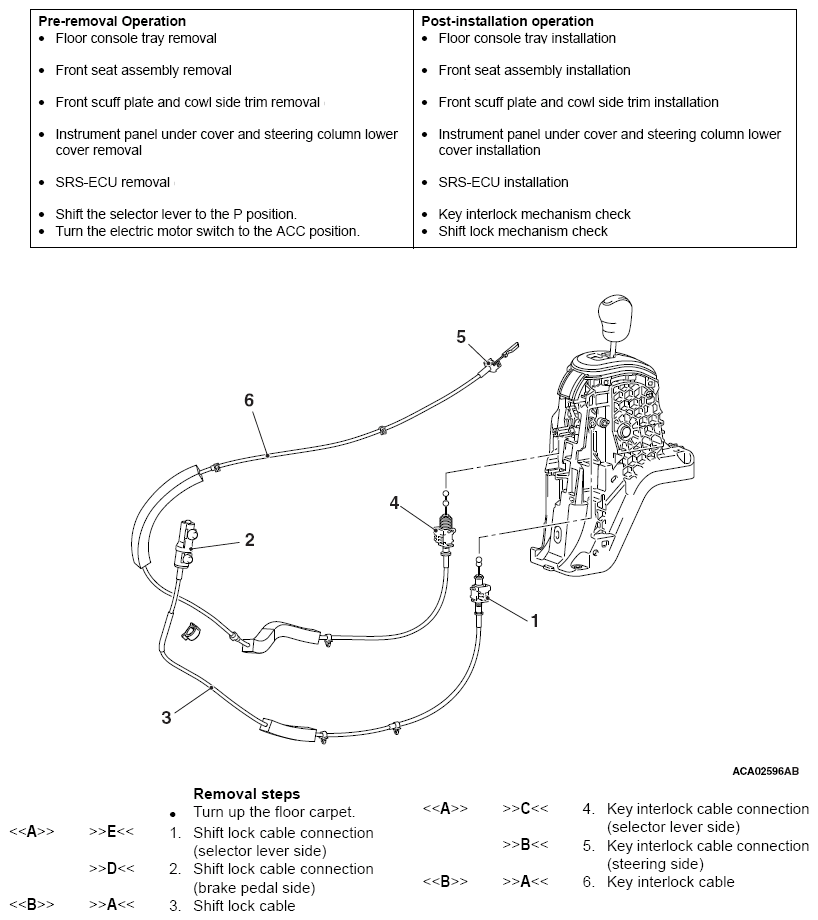

Fig 1: Identifying Key Interlock And Shift Lock Mechanism Removing Order
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
