<< A >> Shift Lock Cable And Key Interlock Cable Connection (Selector Lever Side)

CAUTION: At the removal, if any deformation occurs to the inner cable or outer cable, be sure to replace the cable with a new one.

Insert a flat-tipped screwdriver to the notch shown in the illustration, and pry the screwdriver for removal.

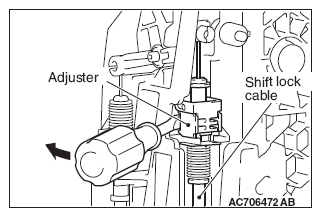

Fig 1: Removing Adjuster Using Flat-Tipped Screwdriver
G08297457Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

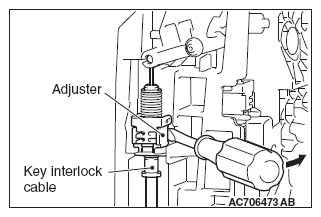

Fig 2: Removing Key Interlock Cable Using Flat-Tipped Screwdriver
G08297458Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
