<< C >> Clip And Transaxle Control Cable Connection (Transaxle Side)

CAUTION: Be sure to pull up by grasping the area A of the transaxle control cable. Do not pull up by holding the area B as damage may result.

Insert a flat-tipped screwdriver to the section shown in the illustration, and press to disengage the claw. Then, lift the transaxle control cable upward.

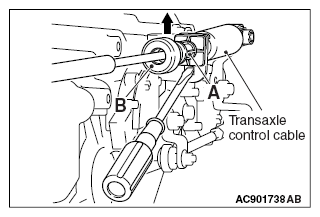

Fig 1: Lifting Transaxle Control Cable Upward Using Flat-Tipped Screwdriver
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Widen the clip to disengage from the control lever side, and then remove the cable end.

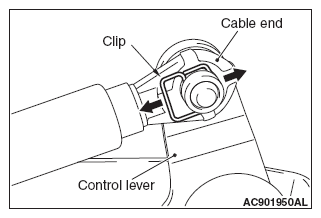

Fig 2: Removing Cable End
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
